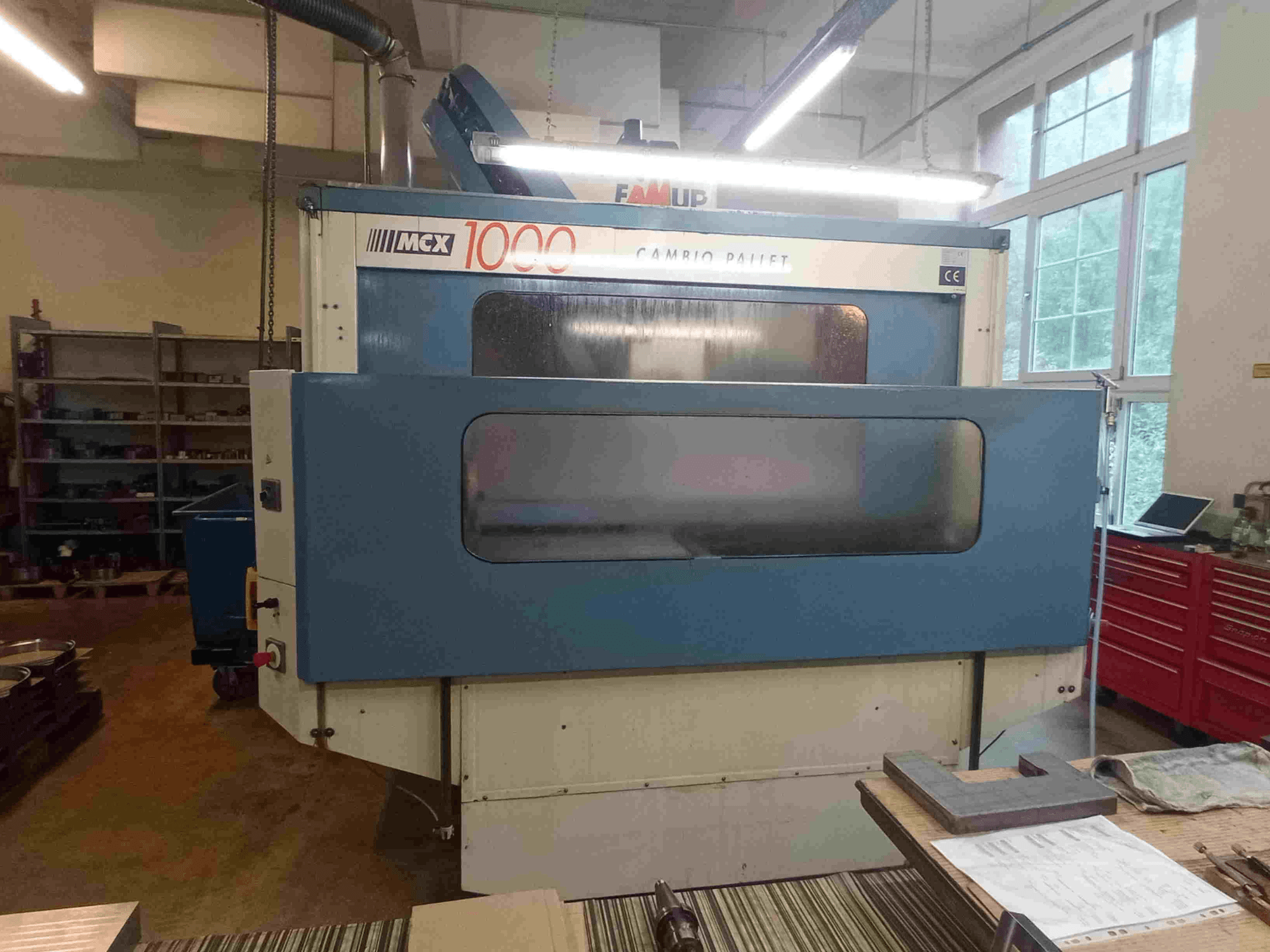

FAMUP - MCX 1000DE-MIL-FAM-1997-00003

- Machine Status / Usage History: Ran approx. 5 years in 2-shift operation, remainder in 1-shift operation; hour counter not available

- Control Unit: Siemens Sinumerik 810M GA3

- Longitudinal Travel (X-axis): 1,100 mm (with pallet changer)

- Transverse Travel (Y-axis): 480 mm

- Vertical Travel (Z-axis): 470 mm

- Pallet Table Usable Area: 1,000 x 450 mm (2 pallets)

- T-Slots (Pallet): 5 x 14 x 80 mm

- Table Load Capacity: 600 kg

- Pallet Change Time: 9 sec

- Spindle Speed: 50 - 8,000 rpm (High Speed Spindle option)

- Spindle Taper: SK 40 / ISO 40 (DIN 69871)

- Spindle Motor Power: 11.25 kW (30 min) / 9 kW (S1 continuous)

- Working Feed Rate (X, Y, Z): 10,000 mm/min

- Rapid Traverse (X, Y, Z): 24,000 mm/min

- Tool Magazine Capacity: 30 positions (chain magazine)

- Max Tool Diameter: 110 mm

- Max Tool Length: 280 mm

- Max Tool Weight: 6 kg

- Tool Change Time: 3 sec (5 sec chip-to-chip)

- Total Installed Power: 18 kW

- Overall Machine Dimensions (L x W x H): 3,500 x 3,150 x 3,000 mm

- Additional Equipment & Accessories:

- 4th-axis CNC Rotary Table (250 mm diameter) with pneumatic tailstock

- Portable electronic handrail / handwheel

- Replacement bellows for Z-axis

- Various timing belts for machine and 4th axis

- Collet holder for chain magazine

- Rigid tapping (tapping without length compensation chuck)

- Splash guard cabin with halogen work light

- Coolant system with integrated wash nozzles for optimal chip flow

- Chip tray / pan

- Automatic central lubrication system

- Electrical cabinet cooling / heat exchanger
