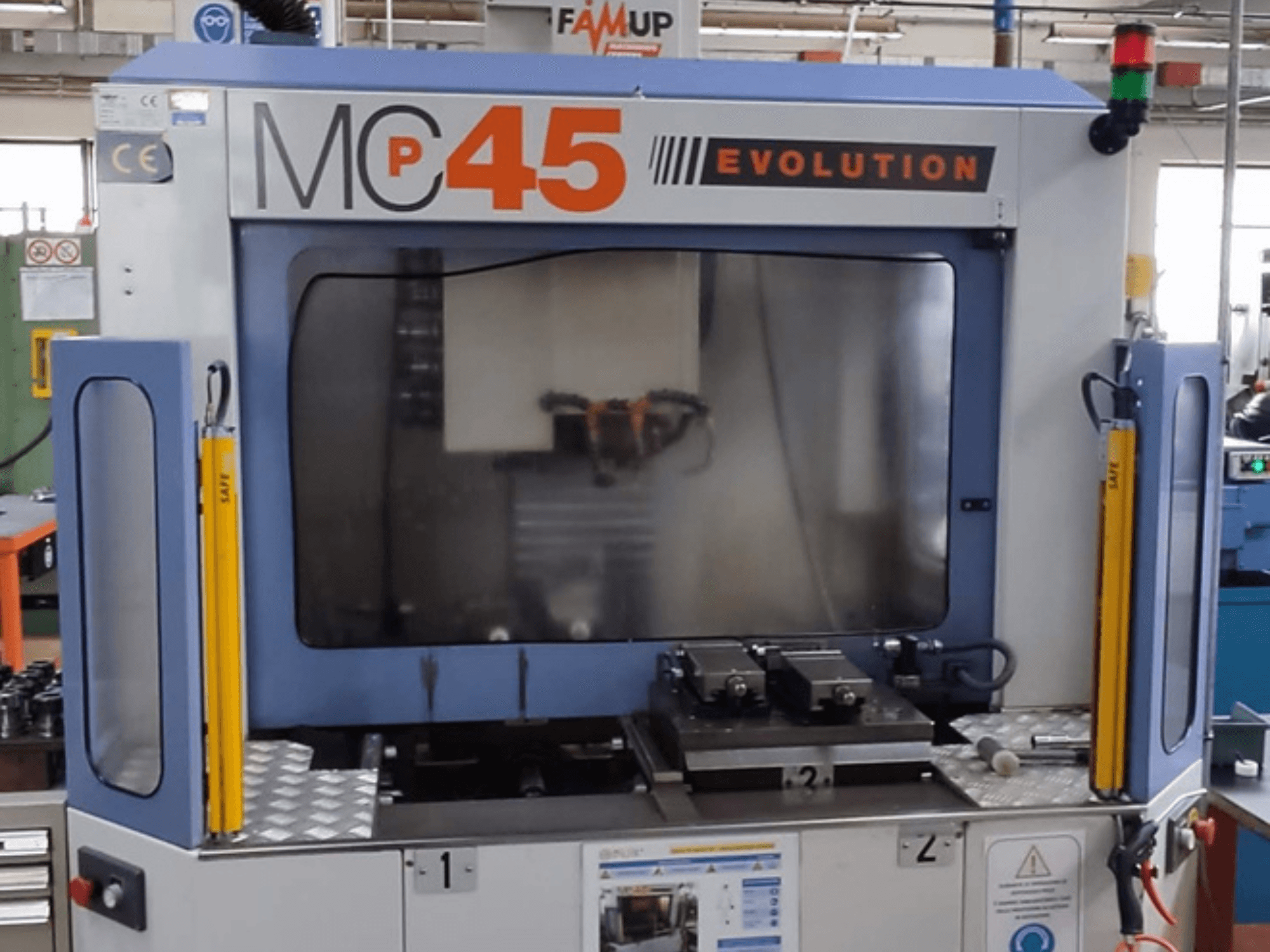

FAMUP - MCP 45 EIT-MIL-FAM-2004-00001

Pallet / table

• Table size: 400 x 300 mm

• T-slots: 2 x 14 x 80 mm

• Central bore: Ø50 H6

• Pallet change time: 8 s

Spindle

• Motor power S6 40%: 5 kW

• Continuous power S1: 3.7 kW

Axis performance

• Working feedrate X/Y/Z: 10,000 mm/min

• Rapid feedrate X/Y/Z: 30,000 mm/min

• Working thrust S1 X/Y: 2,000 N

• Working thrust S1 Z: 3,300 N

Measurement system

• Indirect measuring system

Accuracy

• Positioning accuracy X/Y/Z: ±5 µm

• Repeatability X/Y/Z: ±1.5 µm

• Reversal accuracy: 3 µm

Tool changer

• Tool selection: Random

• Max. tool diameter: Ø63 mm

• Max. tool length: 150 mm

• Tool change time: 1.7 s

• Chip-to-chip time: 2.5 s

General data

• Total installed power: 10 kW
