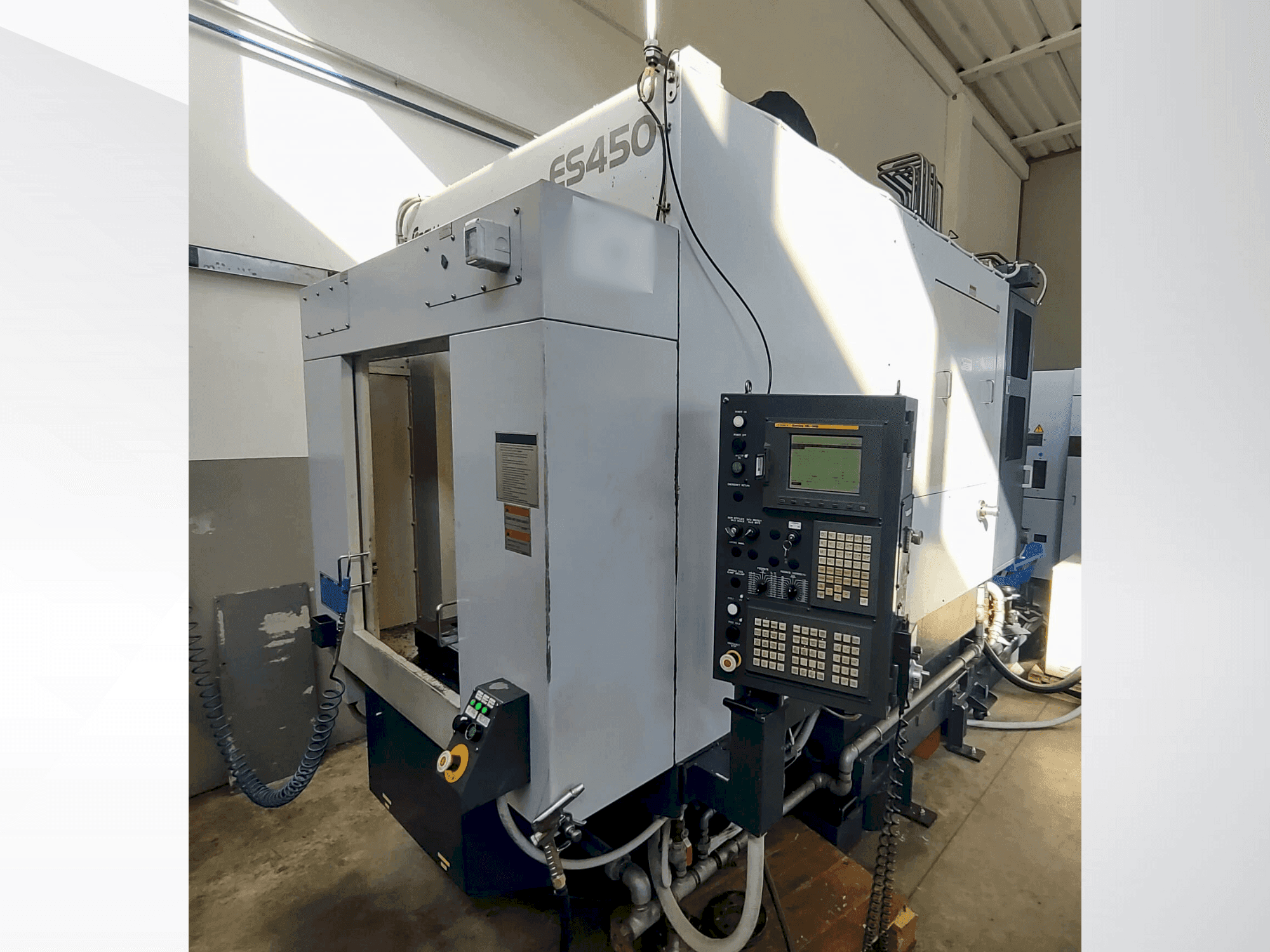

➤ Used Enshu ES450 For Sale | gindumac.com

This Enshu ES450 was manufactured in 2004. It features a spindle speed of up to 12,000 min⁻¹, a tool storage capacity of 20, and a rapid traverse feed rate of 60,000 mm/min. The machine accommodates a maximum workpiece weight of 800 kg and offers a cutting feed rate of up to 15,000 mm/min. Consider the opportunity to buy this Enshu ES450 vertical machining centre. Contact us for more information.

Overview

brand: Enshu
year: 2004
MODEL: ES450
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: FANUC

Technical Information - Enshu ES450

General Data

Measurements width: 3390 MM
Measurements depth: 1580 MM
Measurements height: 3138 MM
Machine weight: 7700 KG

Control Unit

Brand: FANUC
Model: 18i-MB

Main drive

Spindle speed range: 40 - 12000 1/MIN
Spindle motor power: AC 15 kW / 11 kW / 7.5 kW

Movement

X-AXIS Movement: 650 MM
Y-AXIS Movement: 450 MM
Z-AXIS Movement: 460 MM

Table

Outer length: 900 mm
Outer width: 450 mm
Table load: 800 kg

Tools

Slots in storage: 20 tools
Max weight: 8 kg
Max tool diameter: 90 mm (160 mm without adjacent tool)
Max tool length: 250 mm

Additional Equipment

- Pallet System (Pallet change method: Rotary type, Pallet change time: 5 sec)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance from table top to spindle center: 200–660 mm
- - Table configuration: 12 mm grooves with 16-m12 threads
- - Tapered bore: 7/24 taper no. 40
- - Spindle bearing inner diameter: 65 mm
- - Rapid traverse feed rate: 60000 mm/min
- - Cutting feed rate: 1 – 15000 mm/min
- - Tool shank: mas bt40
- - Pull stud: mas p40t-p
- - Tool selection method: nearest absolute address
- - Tool change time (tool to tool): 2. 11 sec
Qualitative Machine Benefits:
- - Tool change time (cutting to cutting): 3. 0 sec
- - Feed motors (x/y/z): 3. 8 kw (y: 2 motors)
- - Hydraulic pump motor: 1. 5 kw
- - Lubricant pump motor: 17 w
- - Magazine motor: 0. 9 kw
- - Required electric power: 35 kva
- - Compressed air consumption: 300 l/min (0. 4–0. 8 mpa)
- - Table height from floor: 850 mm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
