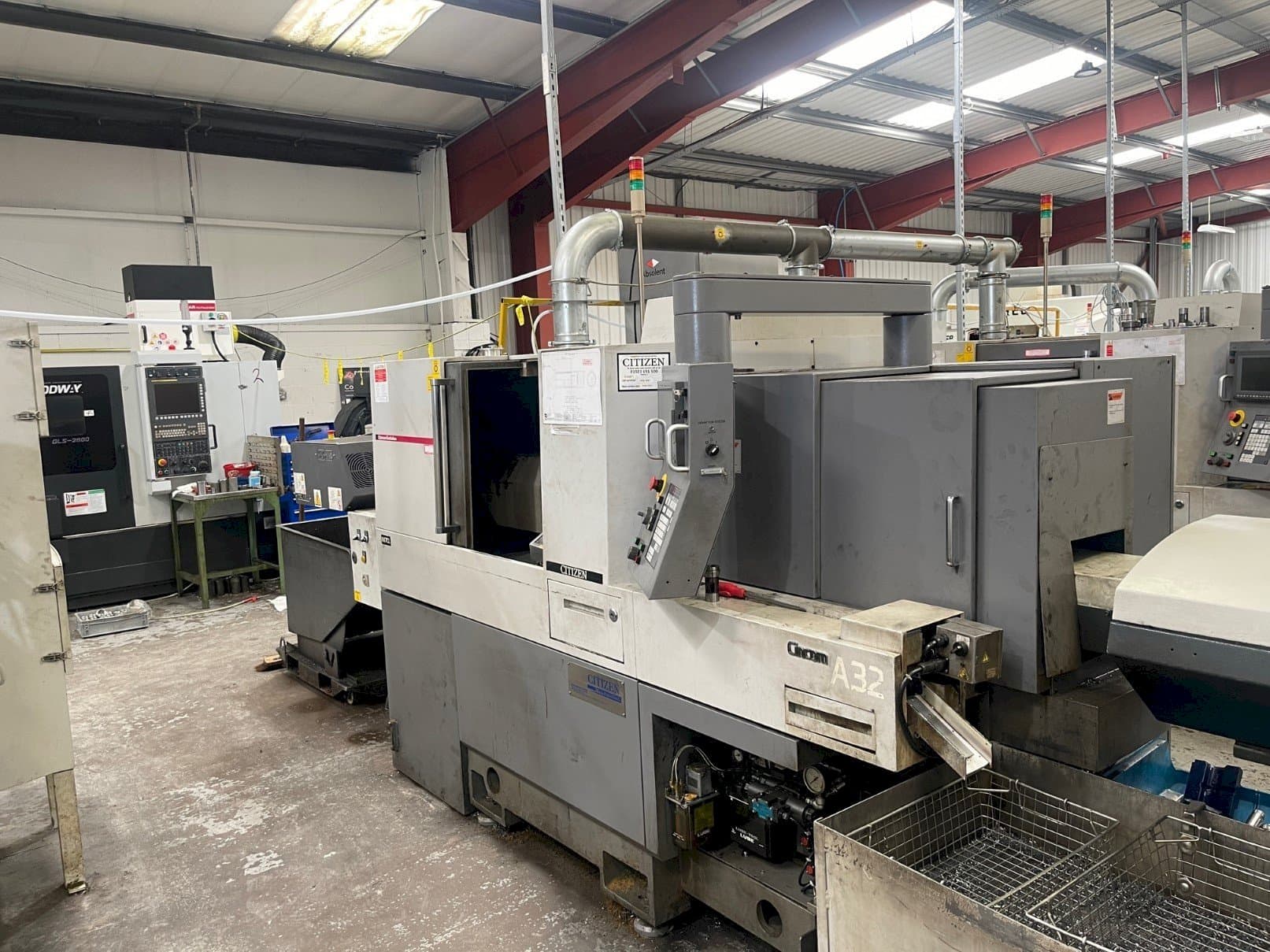

Front view of Citizen A32-VII CL  machine

Citizen A32-VII CL

Citizen - A32-VII CL

2012

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Citizen A32-VII CL Lathe was made in 2012 in Japan. It is equipped with a Mitsubishi Meldas M70 control unit and has 7 axis. The machine has a spindle speed of 8000 rpm.

Overview

  • brand: Citizen
  • year: 2012
  • MODEL: A32-VII CL
  • application type: Turning
  • Location: United Kingdom
  • machine type: Lathe
  • availability: Sold
  • control unit brand: Mitsubishi
  • GINDUMAC ID: GB-TUR-CIT-2012-00001

Technical Information

General Data

  • Measurements width: 2520 mm
  • Measurements depth: 1300 mm
  • Measurements height: 2229 mm
  • Machine weight: 3500 kg

Control Unit

  • Brand: Mitsubishi
  • Model: Meldas M70

Main drive

  • Number of spindles: 2
  • Spindle speed range: 8000 1/MIN
  • Number of axis: 7

Movement

  • X-AXIS Movement: 110/X2: 370 mm
  • Y-AXIS Movement: 400 mm
  • Z-AXIS Movement: 325/Z2: 290 mm

    Additional Equipment

    • - Barfeed magazine : LNS

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Bar capacity 32mm (both spindles)
        • - Maximum cutting length 320mm
        • - C axis 0. 001 degree (both spindles)
        • - Driven tools max spindle speed: 5000rpm
        • - Spindle motor power: 5. 5/7. 5kw; sub-spindle 2. 7 / 3. 7 kw
        • - Rapid feedrates: x x2 y z z2: 32 x 45 x 45 x 45 x 45 x 45m/minute
        • - Tool carriage 1: fixed turning tool x front working tools 6 x fixed, 4 x driven tools
        • - Tool carriage 2: fixed turning tool x front working tools 4 x fixed (front & back)
        • - Tool carriage 3: 5 stations , 4 x driven
        • - Swarf conveyor, parts conveyor
      • Qualitative Machine Benefits:
        • - Very good condition

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
