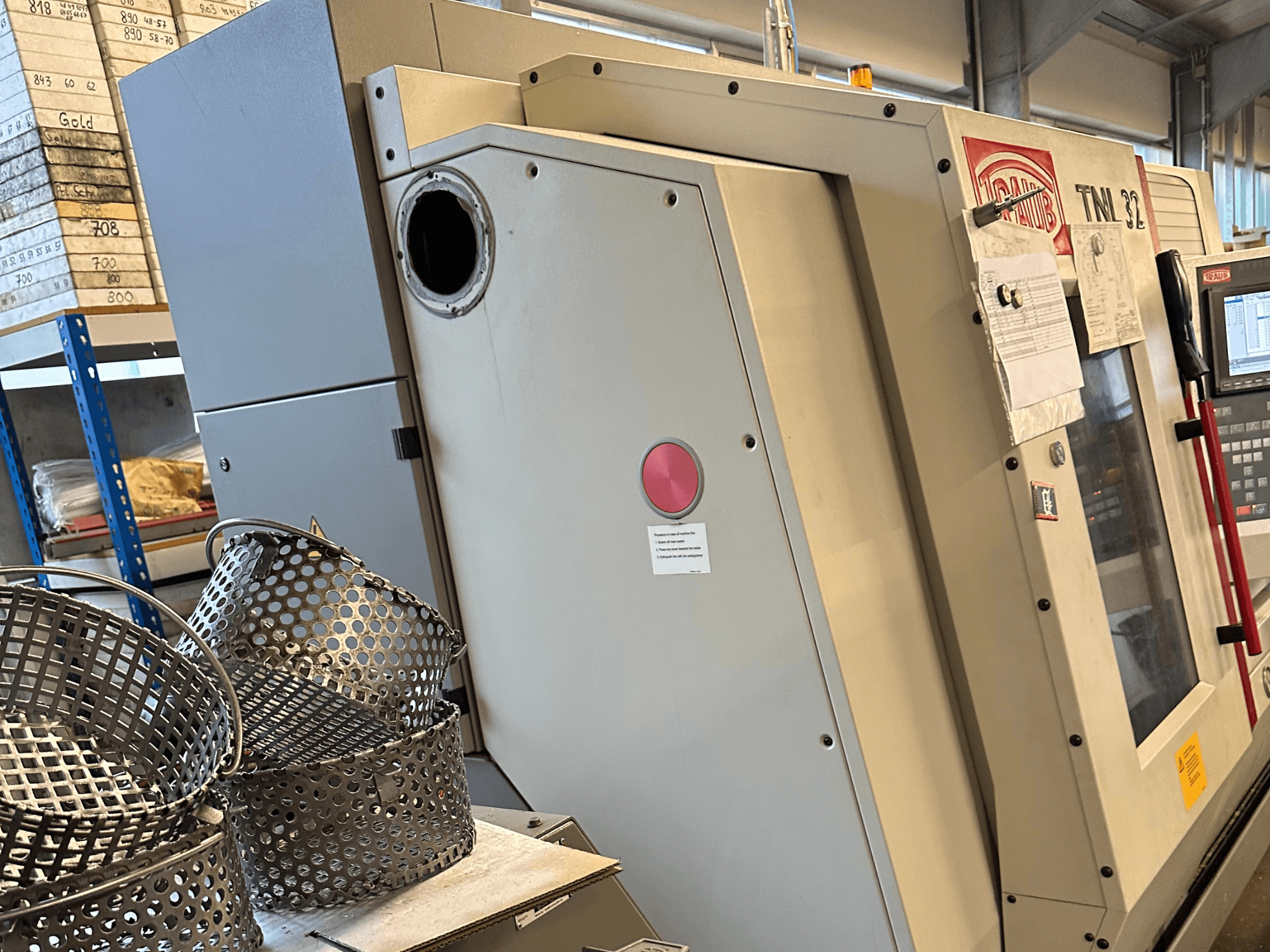

This 7-axis TRAUB TNL 32 P was manufactured in 2012. It features a maximum bar diameter of 32 mm and a maximum Z-axis travel of 305 mm. The machine includes two turrets with live tooling capabilities, offering 10 and 9 tool stations respectively. If you are looking to get high-quality turning capabilities, consider the TRAUB TNL 32 P swiss type turning machine we have for sale. Contact us for further details.
Overview
- brand: TRAUB
- year: 2012
- MODEL: TNL 32 P
- production hours: 19295
- application type: Turning
- Location: Germany
- machine type: Swiss Type Turning Machine
- control unit brand: TRAUB
Technical Information - TRAUB TNL 32 P
Control Unit
- Control Brand: TRAUB
- Control Model: TX 8i-p
Dimensions
- Machine Height: 2600 mm
- Machine Length: 4500 mm
- Machine Weight: 6000 kg
- Machine Width: 2500 mm
Movement
- Number of Axes: 7
- X-axis Travel: 140 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
- Max. Bar Diameter: 32 mm
- Spindle Power: 10.7 kW
- Spindle Speed: 8000 RPM
- Through-spindle Coolant: Yes
Additional Information
Number of Turrets: 2
Maximum Z-Axis Travel: 305 mm
Main Spindle Torque: 21 / 32 Nm
Main Spindle C-Axis Resolution: 0.001°
Turret 1 Tool Stations: 10
Turret 1 Live Tool Stations: 10
Turret 1 Live Tool Speed: 12,000 rpm
Turret 1 Live Tool Power: 1.5 / 2.5 kW
Turret 1 Tool Holder Diameter: 45 mm
Turret 1 Turning Tool Shank: 16 x 16 mm
Turret 1 X-Axis Travel: 140 mm
Turret 1 Z-Axis Travel: 305 mm
Turret 1 H-Axis Resolution: 0.001°
Turret 1 Chip-to-Chip Time: 0.3 sec
Turret 2 Tool Stations: 9
Turret 2 Live Tool Stations: 9
Turret 2 Live Tool Speed: 12,000 rpm
Turret 2 Live Tool Power: 1.5 / 2.5 kW
Turret 2 Tool Holder Diameter: 45 mm
Turret 2 Turning Tool Shank: 16 x 16 mm
Turret 2 X-Axis Travel: 140 mm
Turret 2 Y-Axis Travel: -25 / +40 mm
Turret 2 Z-Axis Travel: 320 mm
Turret 2 Chip-to-Chip Time: 0.3 sec
Counter Spindle Speed: 8,000 rpm
Counter Spindle Power: 1.5 / 2.5 kW
Counter Spindle Torque: 4.5 / 7.7 Nm
Counter Spindle C-Axis Resolution: 0.001°
Maximum Clamping Length: 250 mm
Maximum Bar Diameter (Counter Spindle): 32 mm
Back Working Tool Stations: 8
Back Working Live Tool Stations: 3
Back Working Live Tool Speed: 12,000 rpm
Back Working Live Tool Power: 1.5 / 2.5 kW
Back Working Tool Holder Diameter: 36 mm
Rapid Traverse (X / Y / Z): 20 / 20 / 20 m/min
Maximum Feed Rate: 20,000 mm/min
Total Power Requirement: 46 kW
Space Requirement incl. Bar Feeder: 8,000 x 2,500 x 2,600 mm
Chip Conveyor: Optional
Coolant System: Yes
Tool Turrets: 2
Back Working Unit: Yes
Bar Feeder Interface: Yes
Bar Feeder: LNS Hydrobar Express 332 S2 / 3 m
Electronic Handwheel: Yes
Hydraulic Unit: Yes
Operating Hours: approx. 19,295 h
Machine defects: The counter spindle is currently unusable due to prolonged inactivity. Either the sensor or the motor is defective.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
