Hanwha - XD20 COMBINEDCH-TUR-HAN-2013-00001

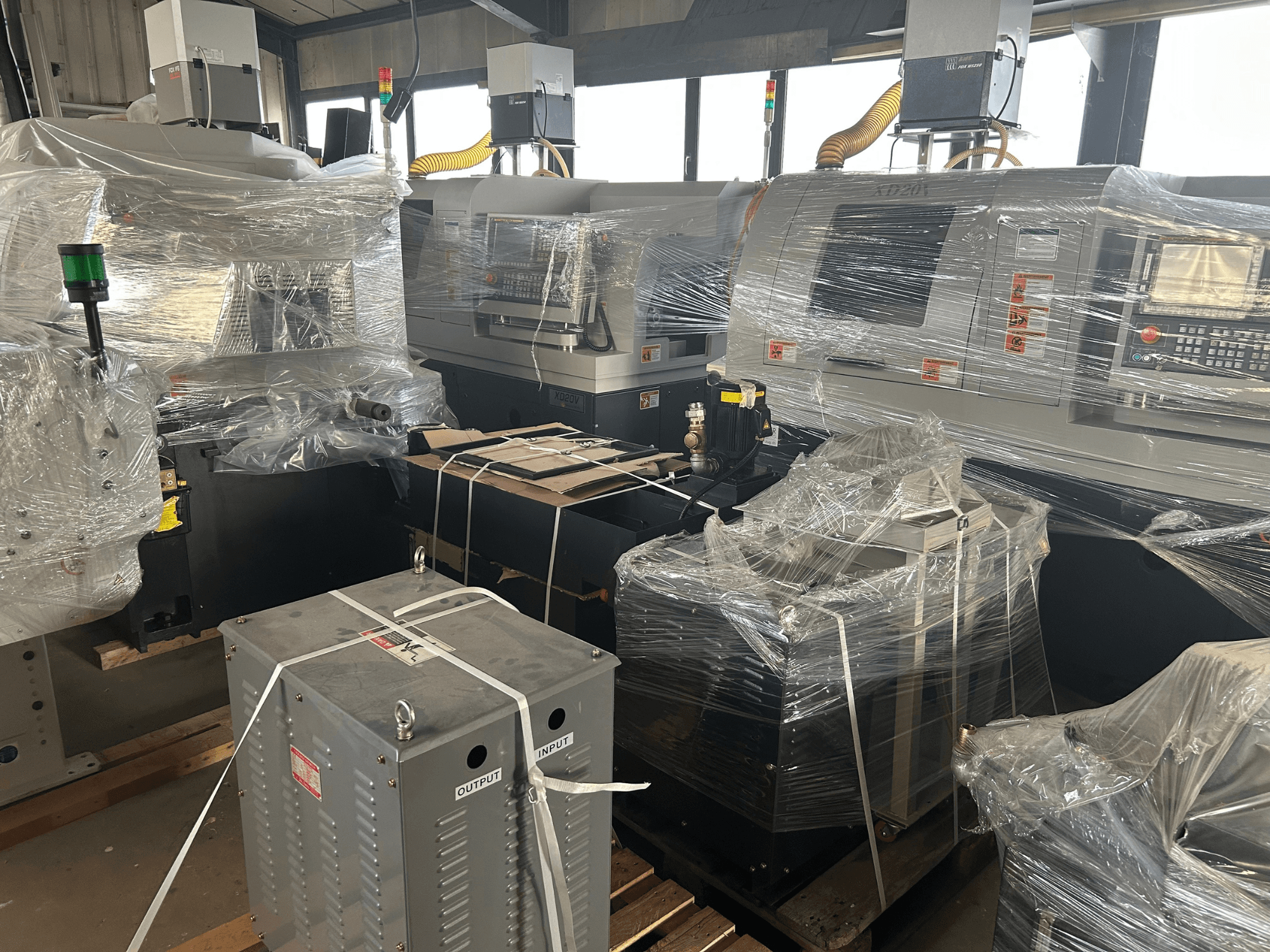

HANWHA XD20

2 Units Available

• Rated Voltage: 3 Phases, 200/220 VAC

• Rated Current: 60 A

• Rated Frequency: 50/60 Hz

• Ampere Interruption Capacity: 10 kA

• Short Circuit Current Rating: 2.5 kA

• Operation Air Pressure: 4–6 kg/cm² (3.9–5.9 bar)

• Machining Hours (TEMPS USIN.): 37,745 h 24 m 26 s

BAR FEEDER – IEMCA ELITE 220 R 32 LL

not included, optional

• Manufacturer: IEMCA

• Model: Elite 220 R

• Type: 32 LL

• Year: 2014

• Air Pressure: 6 bar

• Voltage: 200 V

• Phases: 3

• Frequency: 50 Hz

• Current: 8.1 A

• Interrupting Capacity: 5 kA

• Weight: 660 kg

HANWHA XD20H

• Rated Voltage: 3 Phases, 220–240 / 380–415 VAC

• Rated Current: 60 A

• Rated Frequency: 50/60 Hz

• Ampere Interruption Capacity: 10 kA

• Max Rotation Speed: 10,000 rpm

• Axis Control: 5 Axis

• Operation Air Pressure: 4–6 kg/cm² (3.9–5.9 bar)

• Max Working Diameter: Ø20 mm

• Dimensions (L × W × H): 2258 × 1304 × 1758 mm

• Weight: 3300 kg

• Machining Hours (TEMPS USIN.): 43,977 h 52 m 57 s

BAR FEEDER – IEMCA ELITE 220 R 32 LL

not included, optional

• Manufacturer: IEMCA

• Model: Elite 220 R

• Type: 32 LL

• Year: 2013

• Air Pressure: 6 bar

• Voltage: 200 V

• Phases: 3

• Frequency: 50 Hz

• Current: 8.1 A

• Interrupting Capacity: 5 kA

• Weight: 630 kg
