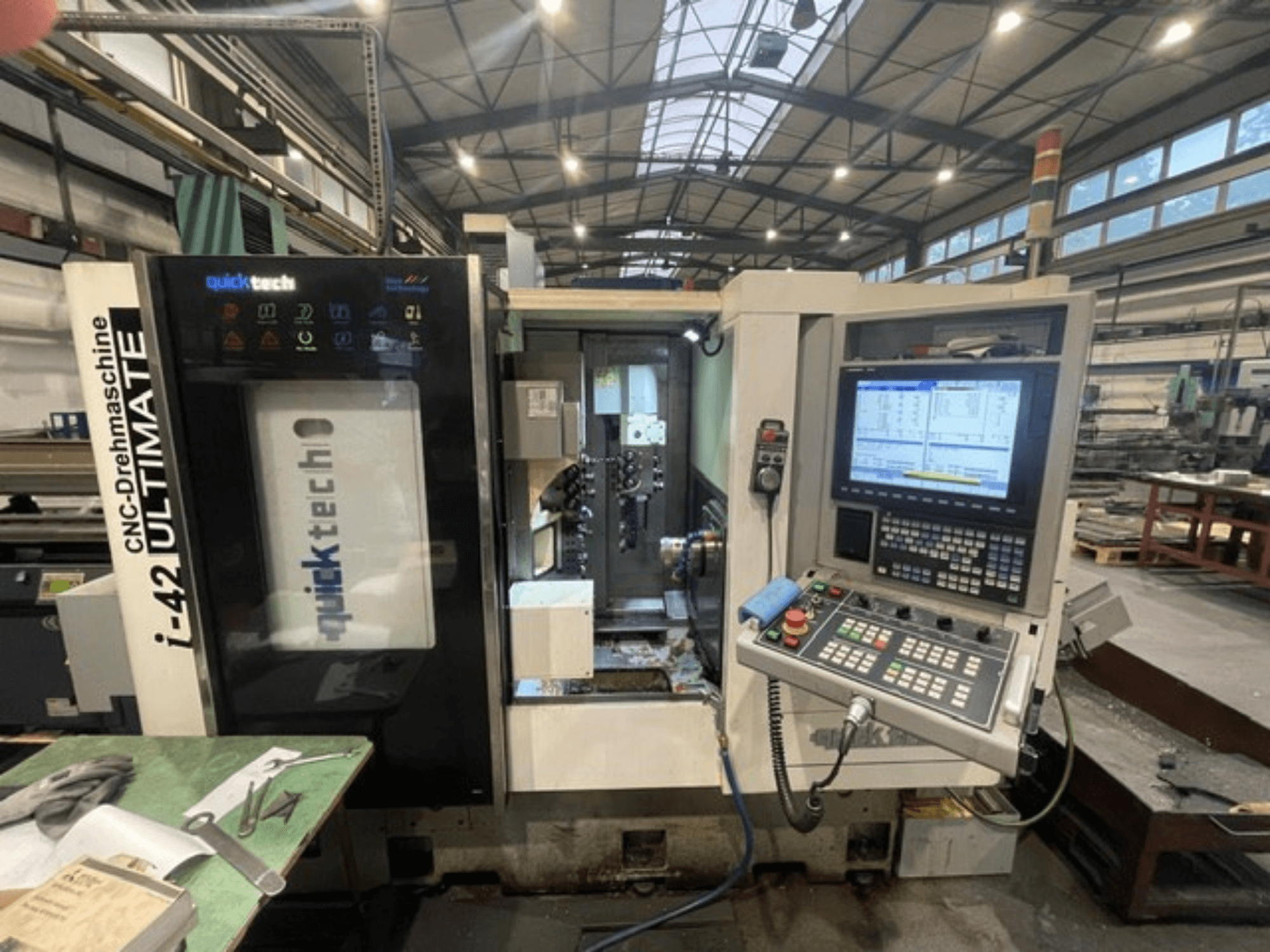

Quick-Tech - I-42UCZ-TUR-QUI-2015-00001

• Control

  • Mitsubishi M720 CNC

  • 15" color LCD display

  • Door with LED indicators

  • Operational signaling and automatic alarm switch

  • Built-in communication/interface with bar feeder

  • CE mark

  • Guide/manual

• Main spindle

  • Bearing diameter: 100.0 mm

  • Max bar dia.: 42 mm

  • Max machining length: 250.0 mm

  • Collet: DIN-173E42B

  • Spindle nose: A2-5

  • Spindle bore: 44.0 mm

  • C axis: 0.001°

• Counter spindle

  • Max bar dia.: 42 mm

  • Max machining length: 100 mm

  • Collet: DIN-173E-42B

  • Spindle nose: A2-5

  • Speed: 4000 rpm

  • Power: 3.7 kW

  • C1 axis: 0.001°

• Travels and axes

  • X: 150.0 mm | Y: 385.0 mm | Z: 250.0 mm | B: 360°

  • X1: 400.0 mm | Y1: 400.0 mm | Z1: 300.0 mm

  • Servo motors (X, Y, Z, X1, Y1, Z1): Mitsubishi AC Servo, 1.5 kW each

  • Indexing from tool position: 0.3 s

  • Tool change time (cut/cut): 0.6 s

• Tool head (main)

  • Combined type

  • Tools: 6 external, 5 internal

  • External tool size: 20.0 × 20.0 mm

  • Max internal tool: ER20 / 20.0 mm

• Driven tools (main)

  • B axis with 12 driven tools

  • Power: Mitsubishi AC Servo, 15 kW

  • Speed: 4000 rpm

  • Max tool size: ER-20

  • Max drilling dia.: 12 mm

  • Max thread: M10 × 1.5

• Tool head (counter)

  • Combined type

  • Tools: 5 external, 9 internal

  • External tool size: 20.0 × 20.0 mm

  • Max internal tool: ER20 / 20.0 mm

• Driven tools (counter)

  • Number: 6 (3 axial, 3 radial)

  • Power: Mitsubishi AC Servo, 1.5 kW

  • Speed: 4000 rpm

  • Max tool size: ER-20

  • Max drilling dia.: 12 mm

  • Max thread: M10 × 1.5

• Hydraulic system

  • Hydraulic motor: 0.75 kW

  • Max system pressure: 50 kg/cm3

• Lubrication system

  • Lubrication motor: 25 W

  • Tank capacity: 2 l

• Cooling system

  • Coolant tank: 200 l

  • Coolant motor: 1/4 HP

  • Coolant pressure: 2.5 MPa

• Length: 2900 mm (3500 mm including chip conveyor, which is part of the machine)

• Standard equipment included

  • Basic equipment with tools

  • Tool holder and collet set

  • Automatic lubrication

  • Chip remover/chip conveyor (integrated, per dimensions note)

  • Workpiece removal (shovel) – if integrated

  • 15" color LCD display

  • Operational signaling and automatic alarm switch

  • Guide/manual

  • Door with LED indicators

Additional equipment

• Automatic bar feeder, 1200 mm length

• Workpiece removal conveyor

• Workpiece removal shovel (if provided as an external unit)

• Transformer 380–440 V, 60/50 Hz
