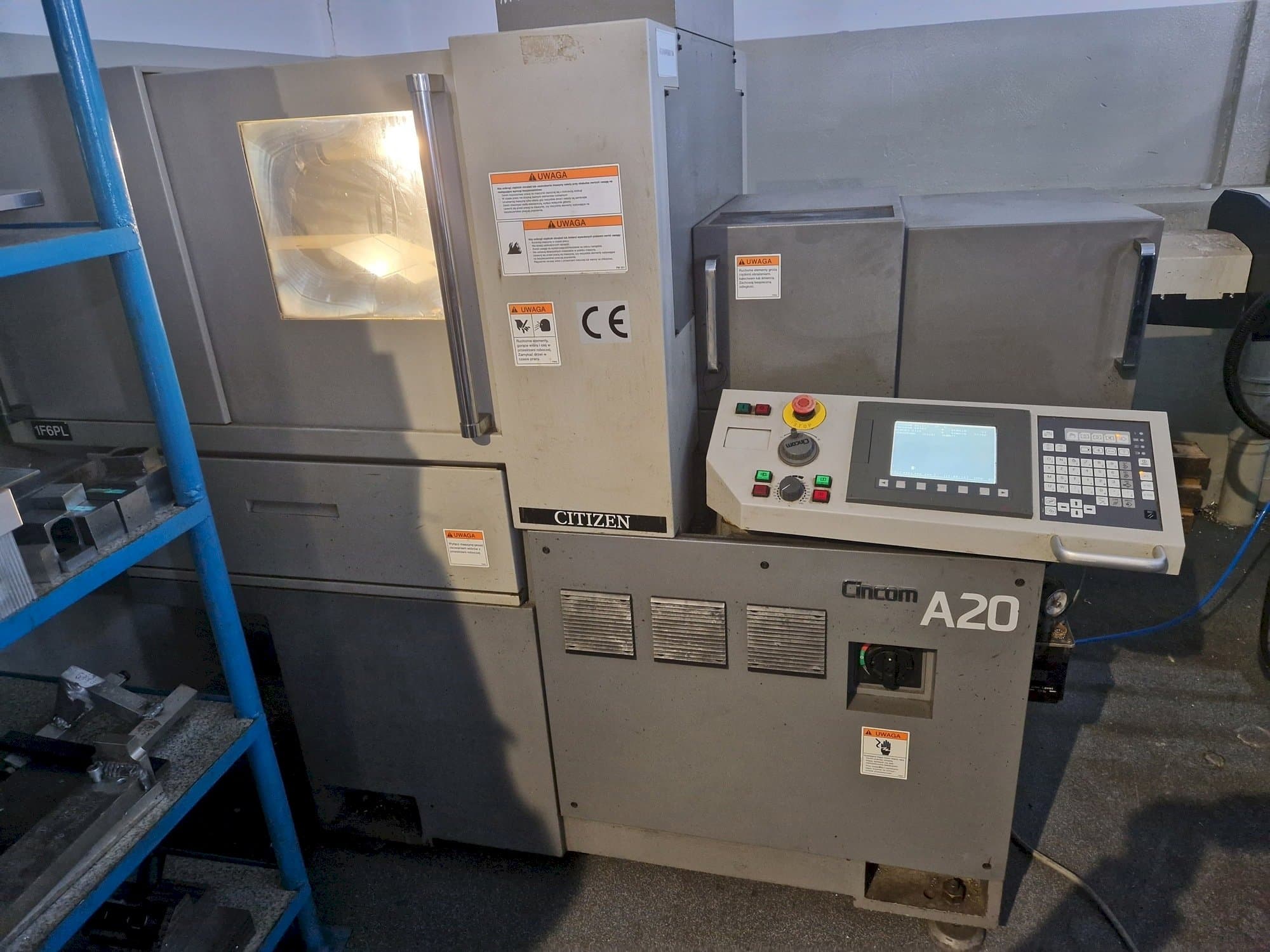

CITIZEN Cincom A20 VII Lathe

This CITIZEN Cincom A20 VII Lathe was made in 2006 in Japan and has 163 production hours. It is equipped with a Fanuc Series 32i control unit and has 5 axis. The machine has a spindle speed of 8000 rpm. And is in perfect and like new condition, it has never been used in production.

Overview

brand: Citizen
year: 2006
MODEL: Cincom A20 VII
production hours: 163
application type: Turning
Location: Poland
machine type: Lathe
availability: Sold
control unit brand: Fanuc
GINDUMAC ID: PL-TUR-CIT-2006-00001

Technical Information

General Data

Measurements width: 2120 mm
Measurements depth: 1240 mm
Measurements height: 1750 mm
Machine weight: 2400 kg

Control Unit

Brand: Fanuc
Model: Series 32i

Main drive

Spindle speed range: 8000 1/MIN
Spindle motor power: 2.2/3.7 kW
Number of axis: 5

Movement

X-AXIS Rapid traverse: 18 m/min
Y-AXIS Rapid traverse: 32 m/min
Z-AXIS Rapid traverse: 32 m/min

Tools

Slots in storage: 21

Media

Power consumption: 6 kVA

Additional Equipment

- Bar feeder LNS Express 220 with capability for bars: 2-20 mm. YOM: 2007

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Machining diameter: 20 mm
- - Max. Machining length without re-chucking: 165 mm
- - Through-hole diameter: 31 mm
- - Index of spindle c- axis: 0. 001 deg
- - Sub spindle: max. Machining diameter: 20 mm max. Machining length: 80 mm
- - Rotary tools at vertical holder: number of tools: 4 pcs
- - Motor output (ac servo motor) 0. 75 kw
- - Turning tools: 5 pcs drilling tools front: 4 pcs drilling tools back: 8 pcs
Qualitative Machine Benefits:
- - The machine is in perfect and like new condition. It has never been used in production. For several years unused but well protected. It can be connected with the possibility of testing. All documentation available.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
