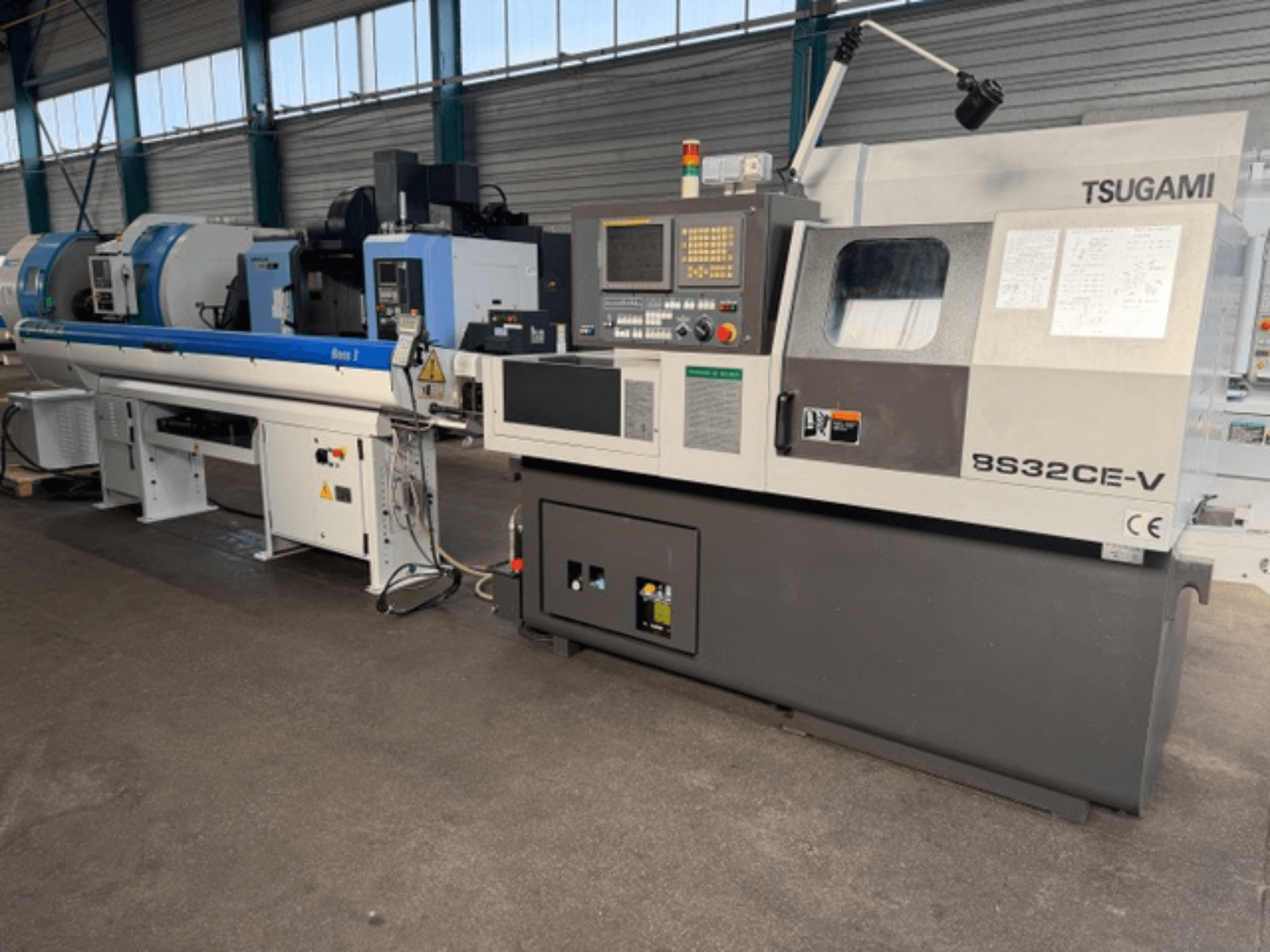

TSUGAMI BS32CE-V Swiss type turning machine in a front view, featuring a control panel and attached spindle.
TSUGAMI BS32CE-V Swiss type turning machine in a front view, featuring a control panel and attached spindle.

TSUGAMI - BS32CE-V FR-TUR-TSU-2008-00001

62,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 7-axis TSUGAMI BS32CE-V was manufactured in 2008. It features a maximum turning diameter of 32 mm and a turning length of 250 mm. The machine is equipped with two spindles, offering main spindle speeds of 200 – 7000 rpm and sub-spindle speeds of 200 – 6000 rpm. If you are looking to get high-quality turning capabilities, consider the TSUGAMI BS32CE-V swiss type turning machine we have for sale. Contact us for further details.

Overview

  • brand: TSUGAMI
  • year: 2008
  • MODEL: BS32CE-V
  • application type: Turning
  • Location: France
  • machine type: Swiss Type Turning Machine
  • control unit brand: FANUC

Technical Information - TSUGAMI BS32CE-V

Control Unit

  • Control Brand: FANUC
  • Control Model: 18i-TB

Dimensions

  • Machine Weight: 2900 kg

Movement

  • Number of Axes: 7

Technical Specification

  • Spindle Power: 5.5 kW
  • Spindle Speed: 7000 RPM

Additional Information

  • Condition: Very good; low number of hours

  • Power-on hours: 28,538

  • Spindle hours: 9,190

  • Number of spindles: 2

  • Max turning diameter: 32 mm

  • Max turning length: 250 mm

  • Max drilling diameter: 12 mm

  • Max threading diameter: M10

  • Sub-spindle speed: 200–6000 rpm

  • Sub-spindle motor power: 2.2 kW

  • C-axis: 360,000°

  • Spindle nose: for F37 collet

  • Tooling/Stations:

    • Number of stations: 4

    • Number of tools: 20

    • Number of live tools: 5

    • Turning tools: 5

    • Drilling tools: 6

    • Cross machining tools: 4

  • Live tool speed: 200–5000 rpm

  • Live tool power: 0.9 kW

  • Working feed: 1–6000 mm/min

  • Rapid feed: 20 m/min

  • Dimensions (machine, without bar feeder): 2150 × 1500 × 1800 mm

Additional equipment

  • Bar feeder: IEMCA BOSS 332L

  • Chip conveyor

  • Parts catcher

  • Short part ejector

  • Bar puller

  • Work light

  • Set of collets

  • Serial port interface RS232

  • 3-color status light

  • Documentation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
