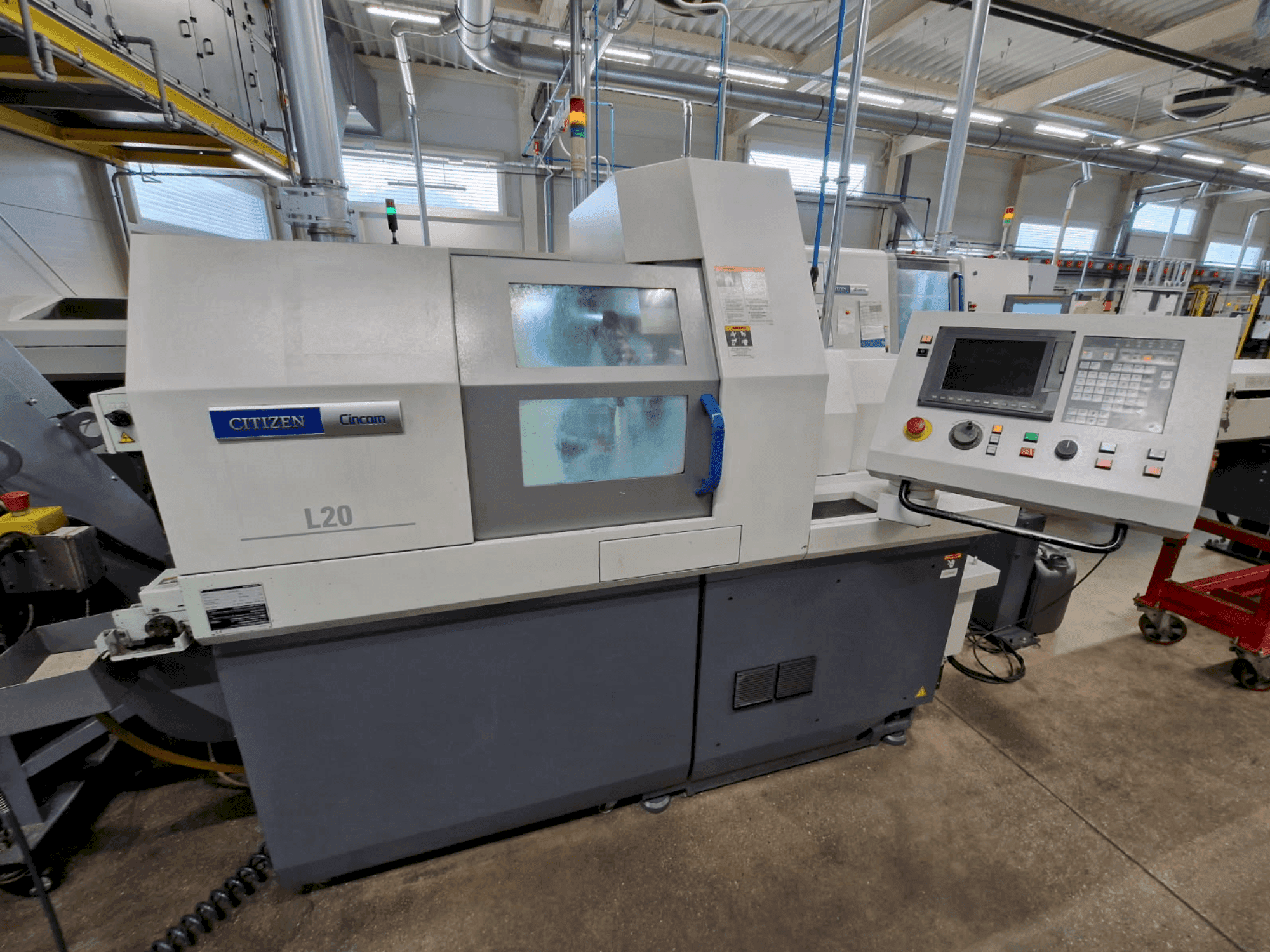

- ➤ Used Citizen CITIZEN Cincom L20E-2M8 | Swiss Type Lathe
This 8-axis Citizen Cincom L20E-2M8 was manufactured in 2016, designed for precision Swiss-type turning come with FMB bar feeder and LNS chip conveyor. It features a main spindle with a speed of up to 10,000 rpm and a counter spindle operating at 8,000 rpm. The machine accommodates up to 37 tools, enhancing its capability for complex machining tasks. It includes a Mitsubishi Meldas 700 controller for efficient operation. Consider the opportunity to buy this Citizen Cincom L20E-2M8 Swiss type turning machine. Contact us for more information.
Overview
- brand: Citizen
- year: 2016
- MODEL: Cincom L20E-2M8
- application type: Turning
- Location: Slovenia
- machine type: Swiss Type Turning Machine
- control unit brand: MITSUBISHI
Technical Information - Citizen Cincom L20E-2M8
Control Unit
- Control Brand: MITSUBISHI
- Control Model: Meldas 700
Dimensions
- Machine Depth: 2300 mm
- Machine Height: 1835 mm
- Machine Weight: 2220 kg
Additional Information
CITIZEN Cincom L20E-2M8 with FMB Bar feeder and LNS chip conveyor
The machine is suitable for efficient turning up to 20 mm in diameter.
The machine is designed to accommodate up to 37 tools for machining complex products.
Tool sub-assemblies set:
Vertical holder with 5 tools
4–7 rotating tools for transverse radial machining
Drilling tools 3–9 for front machining
0–4 rotating tools for counter spindle
4–10 drilling tools for counter spindle
Basic configuration
Basic bed: block casting with strong linear guides (thermal and vibration stability)
Main spindle: 10,000 rpm, C-axis, Ø passage 26 mm (max. bar Ø20 mm)
W1: vertical holder with 5 tools (12 × 12 × 130 mm)
3× GSC1310 radial rotating tools ER16 (1 kW, 7,500 rpm)
GSE3210 rotating unit adjustable 0°/90° for milling unit (3× GSC1310 ER16)
U124B drilling block (2+1) for deep holes
Counter spindle: 8,000 rpm, optional C-axis, power 0.75/1.5 kW
U153B driven tool unit for counter spindle (0.75 kW) + 4× SAU819 adapters Ø19.05
Controller: Mitsubishi Meldas 700 (Windows OS, improved processor, LCD 8.4")
Simultaneous machining on main and auxiliary spindles
New sliding door cover design, space-saving
Technical data
Main spindle
Max. turning length: 200 mm
Throughput Ø: 26 mm
Max. bar Ø: 20 mm
Speed: 200–10,000 rpm
Power: 2.2 / 3.7 kW
Positioning: C-axis (0.001°)
Counter spindle
Max. bar Ø: 20 mm
Speed: 200–8,000 rpm
Power: 0.75 / 1.5 kW
Positioning: C-axis
Max. workpiece length in collet: 80 mm
Driven tools
Speed: 200–7,500 rpm
Power: 1 kW
5 tools (vertical holder) + 4–7 radial + 3 in Z-direction
Tools
5 tools (12 × 12 × 130 mm)
3-position drilling block on counter spindle (3× Ø25.4 mm)
Back machining holders: 3–6 (Ø19.06 mm)
Guides
Collets: E145
Guide bushing: Neukomm 22.001
Machine ER16 / ER11
Additional equipment
Clamping unit Ø25 mm
Pump 15 bar for rinsing the counterspindle
SAU819 adapters up to Ø8 mm
Transformer 3×400V/3×200V, 10 kW
Swarf conveyor LNS MH-HB
FMB Minimag 20/3200 bar feeder
