CLEAN LASER CL 600

Photo Gallery

41,000 €

gindumac price

(Ex works)

Get an official quote

CLEAN LASER - CL 600DE-OTH-CLE-2017-00001

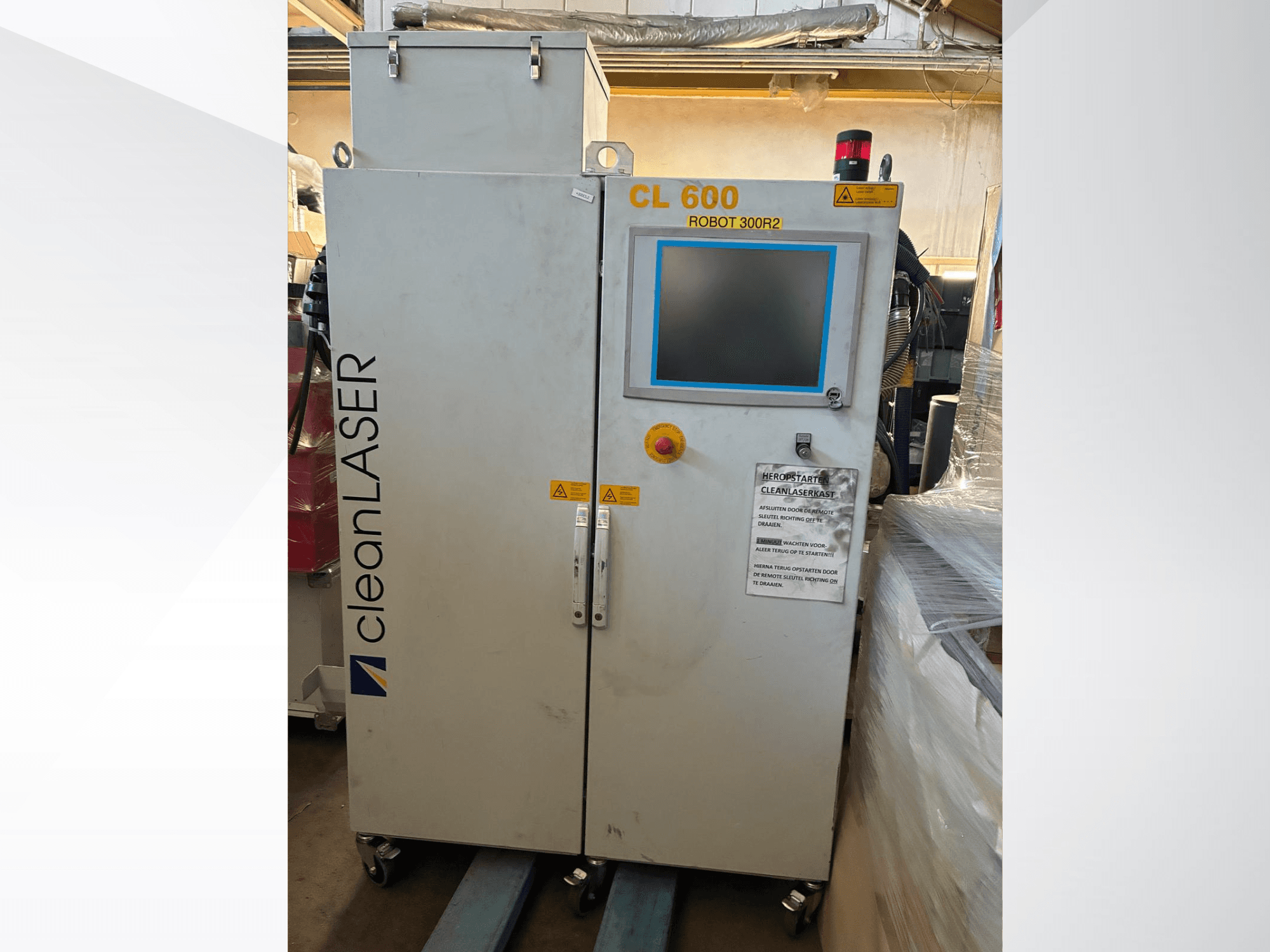

Name: CLEAN LASER CL 600
Brand: CLEAN LASER
SKU: DE-OTH-CLE-2017-00001
Price: 41000 EUR
Availability: InStock

41,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Automation Equipment
➤ Used CLEANLASER CL 600 For Sale | gindumac.com

Automation system manufactured in 2017. This CLEANLASER CL 600 features a laser wavelength of 1064 nm. With 3 units available, this system is designed for precision applications. If you are looking to get high-quality automation capabilities, consider the CLEANLASER CL 600 machine we have for sale. Contact us for further details.

Overview

brand: CLEAN LASER
year: 2017
MODEL: CL 600
application type: Other Automation Equipment
Location: Germany
machine type: Automation System

Technical Information - CLEAN LASER CL 600

Technical Specification

Laser Power: 0.6 kW

Additional Information

- 3 units available

- Main Laser System Model: CL 600

- Laser Power (max. av.): 600 W

- Wavelength: 1064 nm

- Pulse Frequency: 20-40 kHz

- Pulse Duration (min.): 45 ns

- Pulse Energy (max.): 33 mJ

- Laser Safety Class: Class IV Laser Product

- Main System Power Supply: 3x400 VAC, N, PE

- Main System Frequency: 50 Hz / 50/60 Hz

- Main System Power Consumption: 10 kVA

- Optic System Model: intelliSCAN 30

- Optic Wavelength: 1064 nm

- Optic Work Distance: 250 mm

- Hydraulic Pump Drive Motor Brand: Leroy-Somer

- Hydraulic Pump Drive Motor Weight: 490 kg

- Hydraulic Pump Drive Motor Output: 90 kW (50 Hz, 1460 min-1) / 103 kW (60 Hz, 1780 min-1)

- Hydraulic Pump Drive Motor Voltage / Connection: A380V / A400V / Y690V (50 Hz), A415V / A440V / A460V (60 Hz)

- Hydraulic Pump Drive Motor Rated Current: 170A / 162A / 94A (50 Hz), 159A / 168A / 161A (60 Hz)

- Hydraulic Pump Drive Motor Protection Class: IP 55

- Hydraulic Pump Drive Motor Max Ambient Temperature: 40 °C

- Hydraulic Pump Brand: Brueninghaus Hydromatik GmbH (The Rexroth Corp.)

- Hydraulic Pump Displacement (Vg): 125 cc

- Hydraulic Pump Nominal Speed (n): 1800 rpm

- Hydraulic Pump Pressure (DR): 276 bar

- Hydraulic Pump Fluid Type: MINERALOIL

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
