- ➤ Used EROWA Robot Easy Automation For Sale | gindumac.com

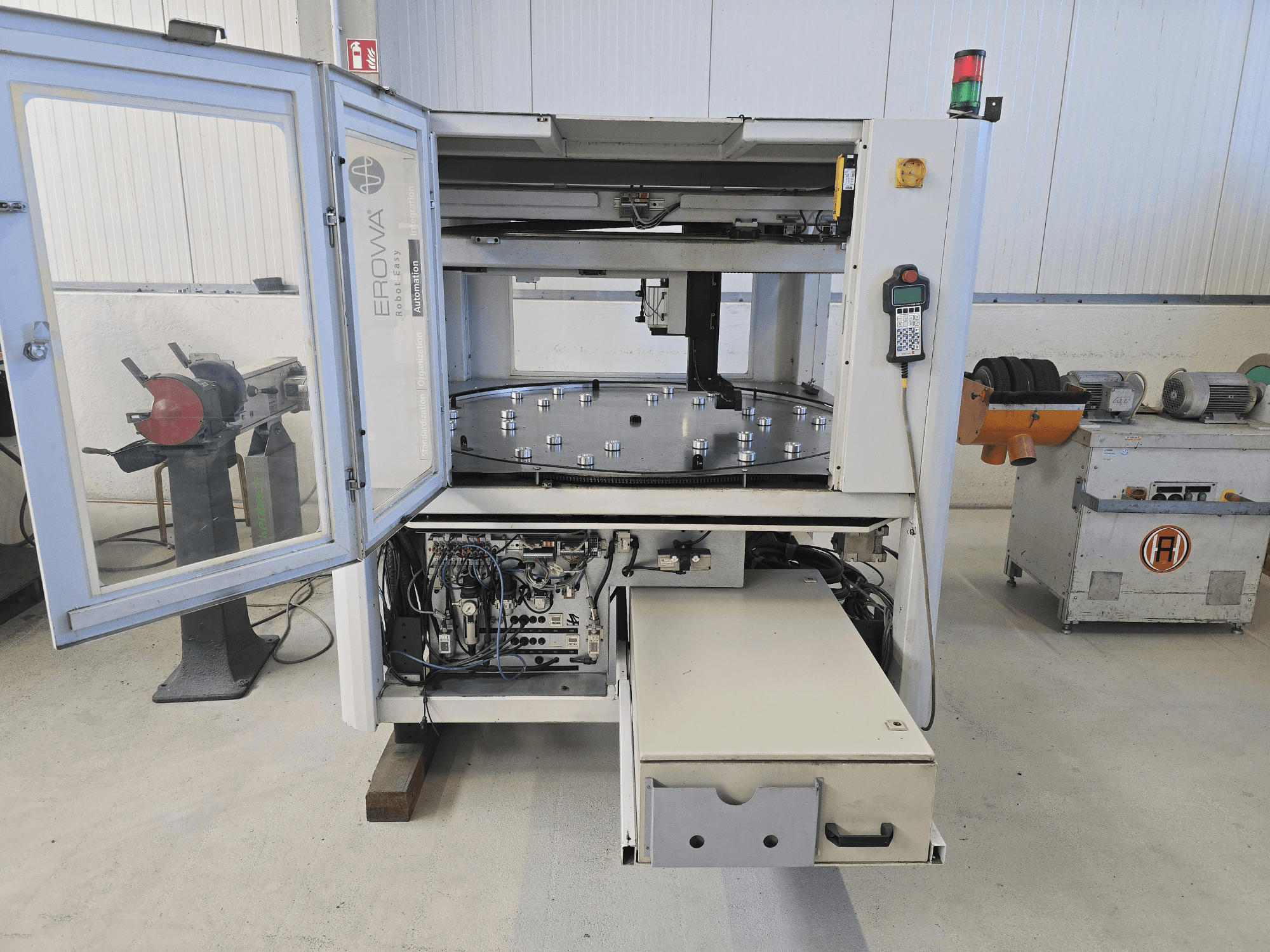

This 3-axis EROWA Robot Easy Automation was manufactured in 2007. It features a maximum load capacity of 1500 kg and a magazine plate with 6 positions per level. The machine has a Z-axis travel of 75 mm and an M-axis capable of 360° movement. If you are looking to get high-quality automation capabilities, consider the EROWA Robot Easy Automation system we have for sale. Contact us for further details.
Overview
- brand: EROWA
- year: 2007
- MODEL: Robot Easy Automation
- application type: Other Automation Equipment
- Location: Germany
- machine type: Automation System
Technical Information - EROWA Robot Easy Automation
Dimensions
- Machine Weight: 1300 kg
Movement
- Number of Axes: 3
Additional Information
Maximum Load Capacity (Magazine): 1500 kg
Magazine Plate Type: MTS 400
Magazine Capacity: 6 Positions per Level
Maximum Load per Level: 1500 kg
Maximum Load per Position: 250 kg
Maximum Transfer Weight (RCS 5): 250 kg
Maximum Transfer Weight (RCS I): 130 kg
Required Coupling for Loads >130 kg: RCS 5 Coupling with RCS 5 Gripperlink ER-038622
Supply Voltage: 3 × 400 VAC ±10% / 3 × 208 VAC ±10% / 3 × 480 VAC ±10%
Frequency: 50/60 Hz
Power Rating: 710 VA
Nominal Current: 1.8 A
Fuse Protection: 10 ATT
Service Socket Voltage: 230 VAC
Minimum Pneumatic Pressure: 5 bar
Minimum Air Consumption: 200 l/min (Nameplate)
Pneumatic Air Quality: Dry, Oil-Free
X-Axis Travel: Type Dependent
Z-Axis Travel: 75 mm
M-Axis Rotation: 360°
Z-Axis Drive: Pneumatic
M-Axis Drive: Electric
Net Weight: 1300 kg
Interface Type: EROWA Standard Interface
Communication Interface: RS232
Optional Communication Interface: RS422
Interface Connector: 72-Pin Harting Connector
Communication Protocol: EROWA EWIS Protocol
Alternative Communication Protocol: EROWA Standard Protocol
Robot Door: Pneumatic Door Valve Kit
Pneumatic Connection: Standard
Electrical Connector: Harting 6-Pin (230 V)
Electrical Connection: 230 V (Phase 1 + 2)
Machine Condition: No Longer Connected to Power
Viewing: Available
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
