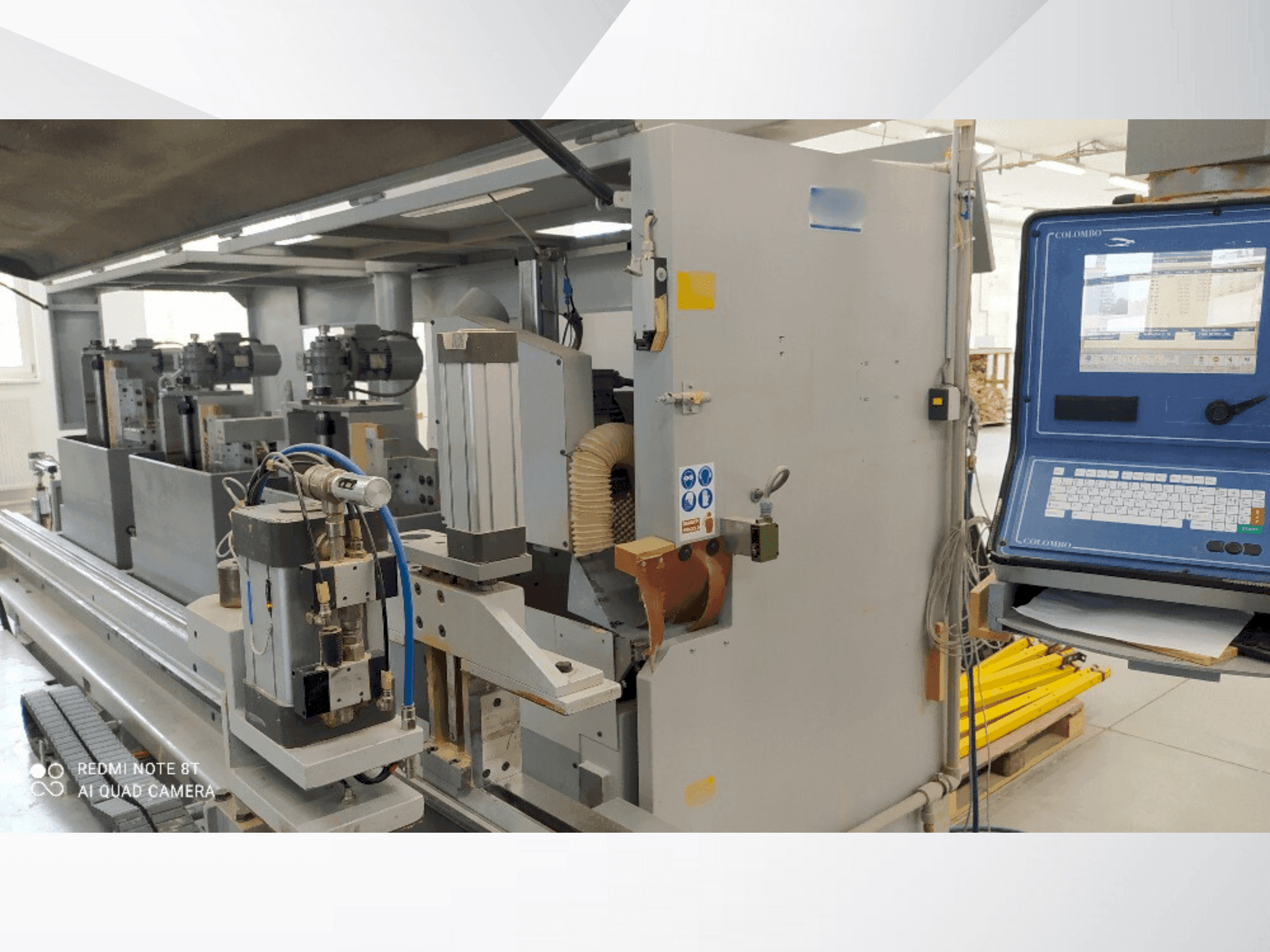

Front view of Colombo Colombo AM 60  machine

Colombo - Colombo AM 60CZ-WOO-COL-2006-00001

23,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

The Colombo AM 60, crafted in 2006, is a specialized woodworking machine built for precision and versatility. With a 4kW cutting unit, it accommodates 400/500mm blades, achieving speeds of 3000 rpm. The cutting heights reach 100mm with a 400mm blade and 155mm with a 500mm blade. An 11kW pinning shaft, with a diameter of Ø50mm and a length of 600mm, supports tools up to 300mm. Its advanced feeding system, rated from 5.5kW to 15kW, adjusts electronically. Contact us for further details.

Overview

  • brand: Colombo
  • year: 2006
  • MODEL: Colombo AM 60
  • application type: Sawing (Wood)
  • Location: Czech Republic
  • machine type: Panel Saw
  • availability: Immediately

Technical Information - Colombo Colombo AM 60

Main drive

  • Main motor power: 1.1 - 1.5 kW, electronic adjustment speed 5.5-7.5-11-15 kW

Workpiece

  • Workpiece x: 270-300 MM
  • Workpiece y: 180 MM
  • Workpiece z: 30-135 MM

Table

  • Outer length: 250 MM
  • Outer width: 1100 MM
  • Height adjustment: Maximum 100mm with 400mm blade and 155mm with 500mm blade

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Motor power (cutting unit): 4kw
      • - Motor power (pinning shaft): 11kw
      • - Motor power (left side profiling shaft): 7. 5kw
      • - Blade diameter: 400/500mm
      • - Blade rpm: 3000.
      • - Blade bor: 30 mm
      • - Horizontal blade travel: 100 mm
      • - Pinning shaft: diameter - 50 mm, useful shaft length - 600 mm, vertical electronic shaft travel - 540 mm, shaft rpm - 3100, max tool diameter - 300 mm, extraction 2 x 150 mm
      • - 1 left side profiling shaft: diameter - 50 mm, usefull spindle length - 600 mm, vertical spindle travel - 540 mm, shaft rpm - 6000, rotation left and right, max tool diameter - 220 mm, extraction - 2 x 150 mm, horizontal adjustment pneumatic - 70 mm.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
