DAEWOO ACE-V400

Photo Gallery

SOLD

DAEWOO - ACE-V400

1998

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

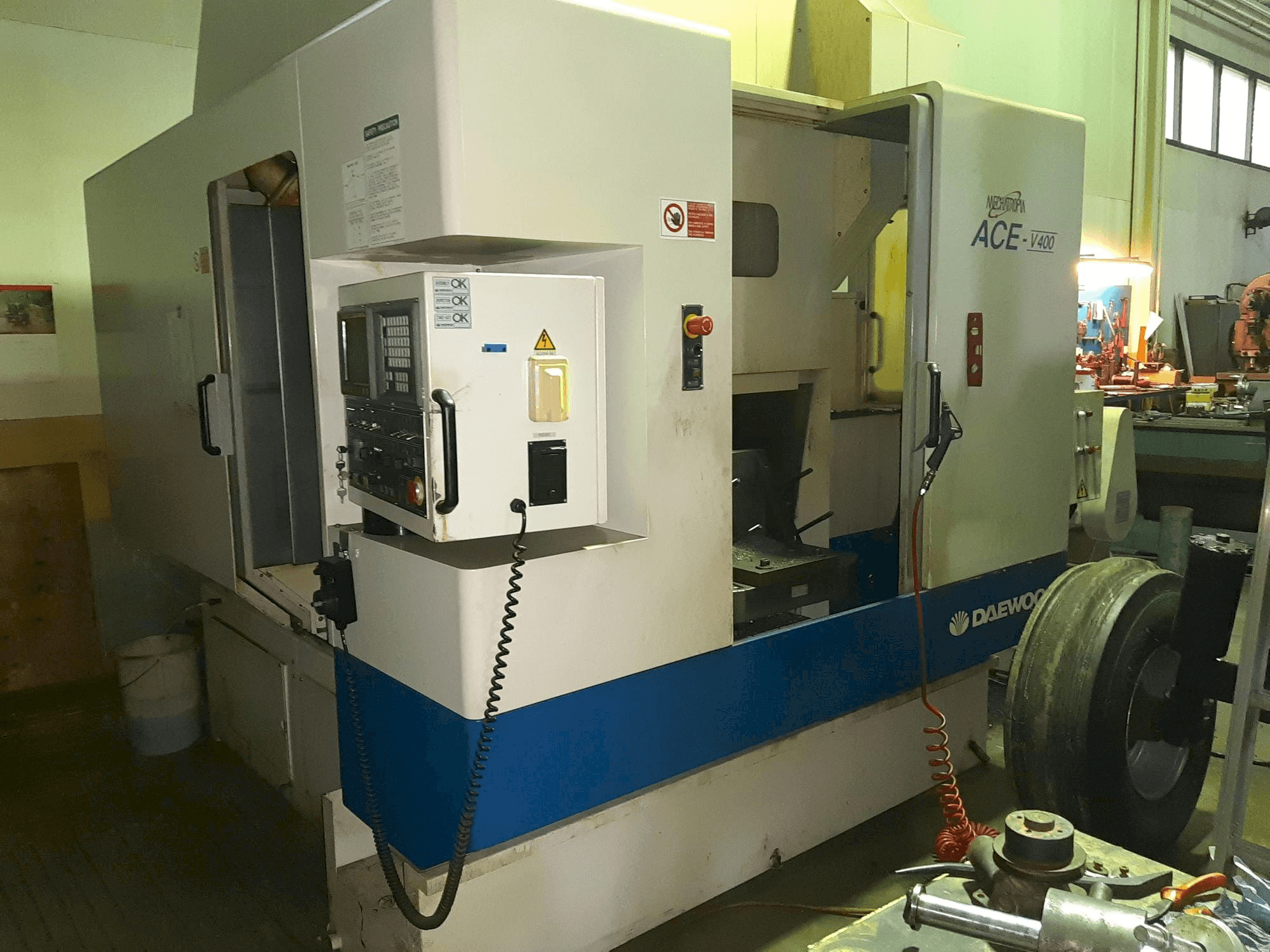

DAEWOO ACE-V400 Vertical Machining Center

This DAEWOO ACE-V400 Vertical Machining Center was built in 1998 in Korea. Equipped with a FANUC Series O-M Control unit, this machine can operate with a spindle speed up to 8000 rpm.

Overview

brand: DAEWOO
year: 1998
MODEL: ACE-V400
application type: Milling
Location: Finland
machine type: Machining centers (vertical)
availability: Sold
control unit brand: FANUC
GINDUMAC ID: FI-MIL-DAE-1998-00001

Technical Information

General Data

Measurements width: 2670 mm
Measurements depth: 2200 mm
Measurements height: 2950 mm
Machine weight: 6000 kg

Control Unit

Brand: FANUC
Model: Series O-M

Main drive

Spindle speed range: 8000 rpm 1/MIN

Movement

X-AXIS Movement: 560 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 170 mm

Tools

Slots in storage: 30

Media

Main electronic connection: 220 V
Chip conveyor: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
