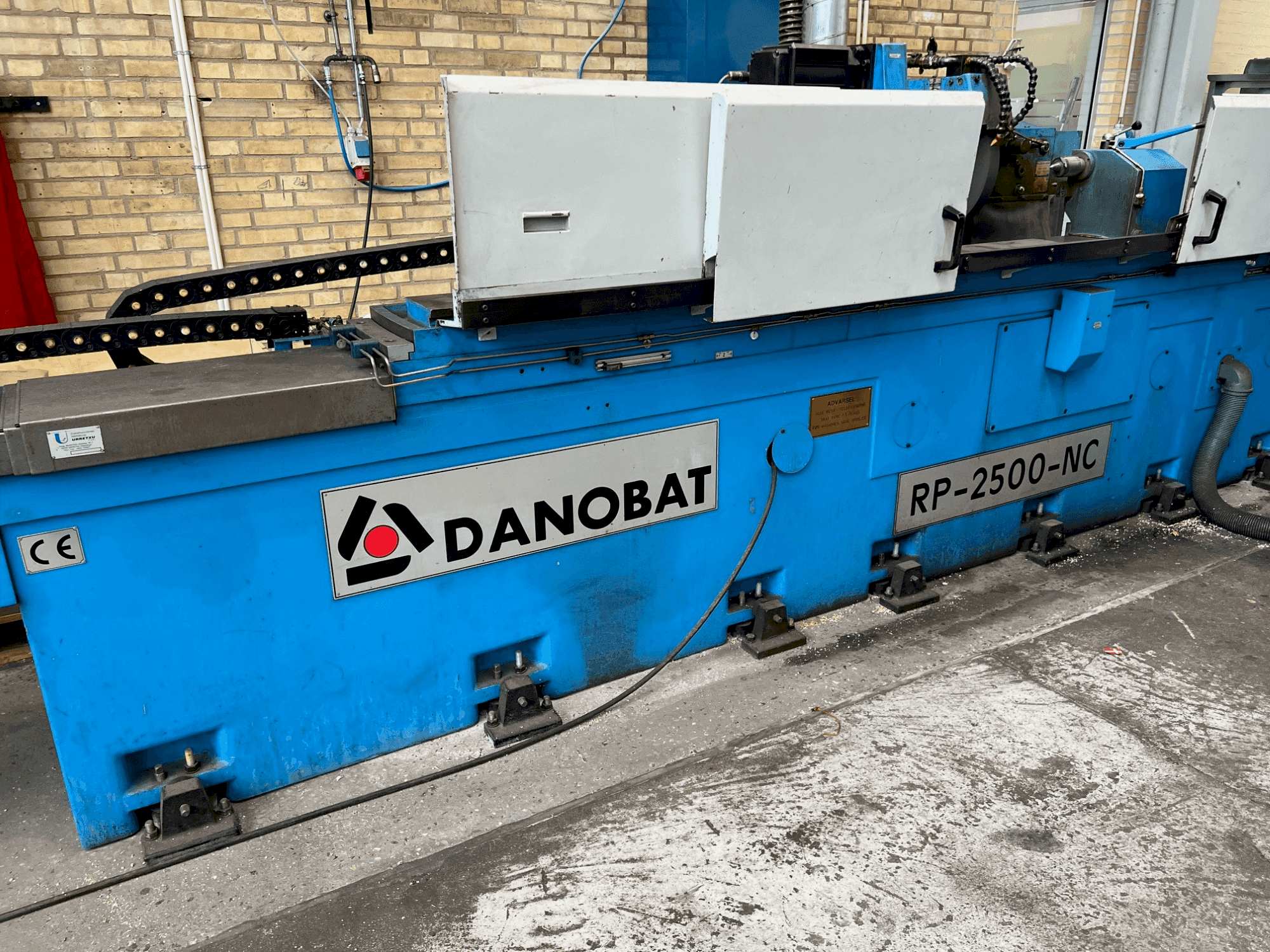

This grinding machine was manufactured in 1995. The DANOBAT RP-2500-NC features a maximum grinding diameter of 440 mm and can handle weights up to 100 kg between centres. It boasts a grinding wheel size of 500 x 80 mm and a maximum cutting speed of 1.220 m/s. Ideal for precision work, the machine we have for sale offers robust performance and reliability. Contact us for more information.
Overview
- brand: DANOBAT
- year: 1995
- MODEL: RP-2500-NC
- application type: Grinding
- Location: Denmark
- machine type: Cylindrical Grinding Machine
- availability: Immediately
- control unit brand: SIEMENS
Technical Information - DANOBAT RP-2500-NC
Control Unit
- Model: SINUMERIK
- Brand: SIEMENS
Main drive
- Spindle speed range: 18 + 300 rpm 1/MIN
- Spindle motor power: 15 Kw
Additional Equipment
- - Wheelhead bearings group
- - Slideways and lubrication group
- - Hydraulic tank
Additional Information
- Technical Machine Benefits:
- - Maximum programmable speed for wheelhead: 6000 mm/min // minimum programmable speed for wheelhead: 0. 01 mm/min
- - Minimum increment to programme for wheelhead: 0. 001 mm
- - Dwell at end of cycle: 300 s
- - Maximum programmable speed for table: 10000 mm/min
- - Minimum programmable speed for table: 0. 01 mm/min
- - Minimum increment to programme for table: 0. 001 mm
- - Workpiece diameter: 440 mm
- - Workpiece length: 2500 mm
- - Number of sheets: 4 // sheet number: 3
- - Image input capabilities: enabled
- Qualitative Machine Benefits:
- - Precision in speed control and incremental programming enhances the grinding accuracy.
- - Dwell feature at the end of cycles allows for precise finishing.
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
