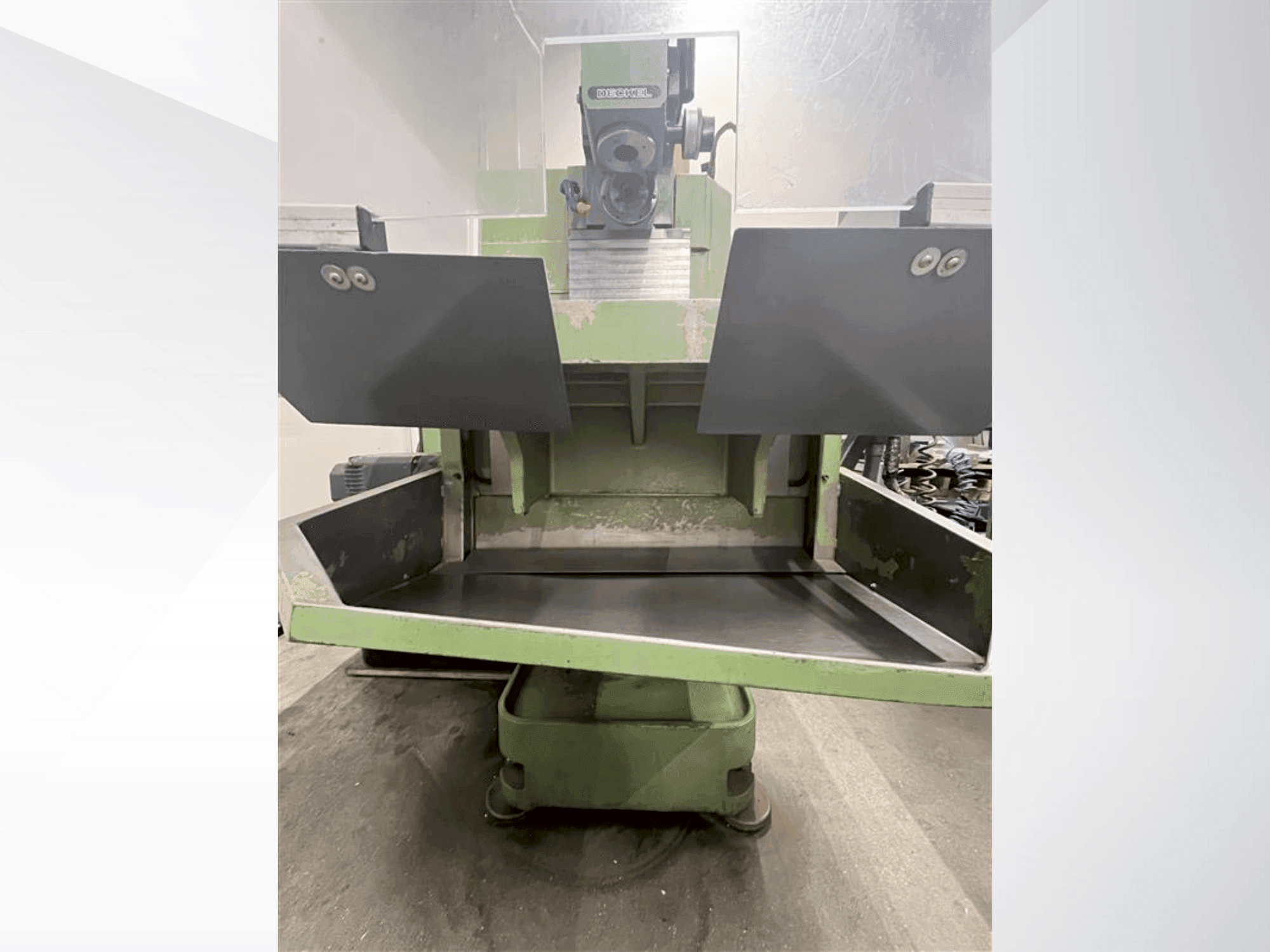

Front view of DECKEL FP2A  machine

DECKEL - FP2ADE-MIL-DEC-1989-00001

7,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 3-axis DECKEL FP2A CNC milling machine was manufactured in 1989. It features a control system with Dialog 4/Contour 3, a vertical milling head, and a quill stroke of 80mm. The machine supports a feed drive range of 2 to 3600 mm/min and a rapid traverse of 4000 mm/min. With a table surface of 390x620 mm and a maximum load of 250 kg, this machine offers robust capabilities for precise milling tasks. For more information about this CNC milling machine, please reach out to us.

Overview

  • brand: DECKEL
  • year: 1989
  • MODEL: FP2A
  • application type: Milling
  • Location: Germany
  • machine type: CNC Milling Machine
  • availability: Immediately

Technical Information - DECKEL FP2A

General Data

  • Machine weight: 130 kg

Control Unit

  • Model: Contour 3

Main drive

  • Number of axis: 3

Movement

  • X-AXIS Movement: 300 MM
  • Y-AXIS Movement: 300 MM
  • Z-AXIS Movement: 340 MM

    Additional Equipment

    • - 2x universal probe
    • - 2x collet chuck / 1x collet set 2-22mm
    • - 1x drill chuck
    • - 9x milling cutter holder
    • - Various chucks
    • - Max. clearance height between vertical milling spindle / table surface: 470 mm
    • - Max. clearance height between vertical milling spindle / table surface: 470 mm
    • - Machine book I / Machine book I / Control manual I / Contour 3 programming manual

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Vertical milling head with sliding headstock 50 mm
        • - Quill stroke vertical 80 mm
        • - Direct path measurement triggering 0. 001 mm
        • - 4th axis 0. 001°
        • - Feed drive metric 2... 3600 mm/min
        • - Rapid traverse metric 4000 mm/min
        • - Table surface: 390 x 620 mm / t slots number: 6, width: 14 mm

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
