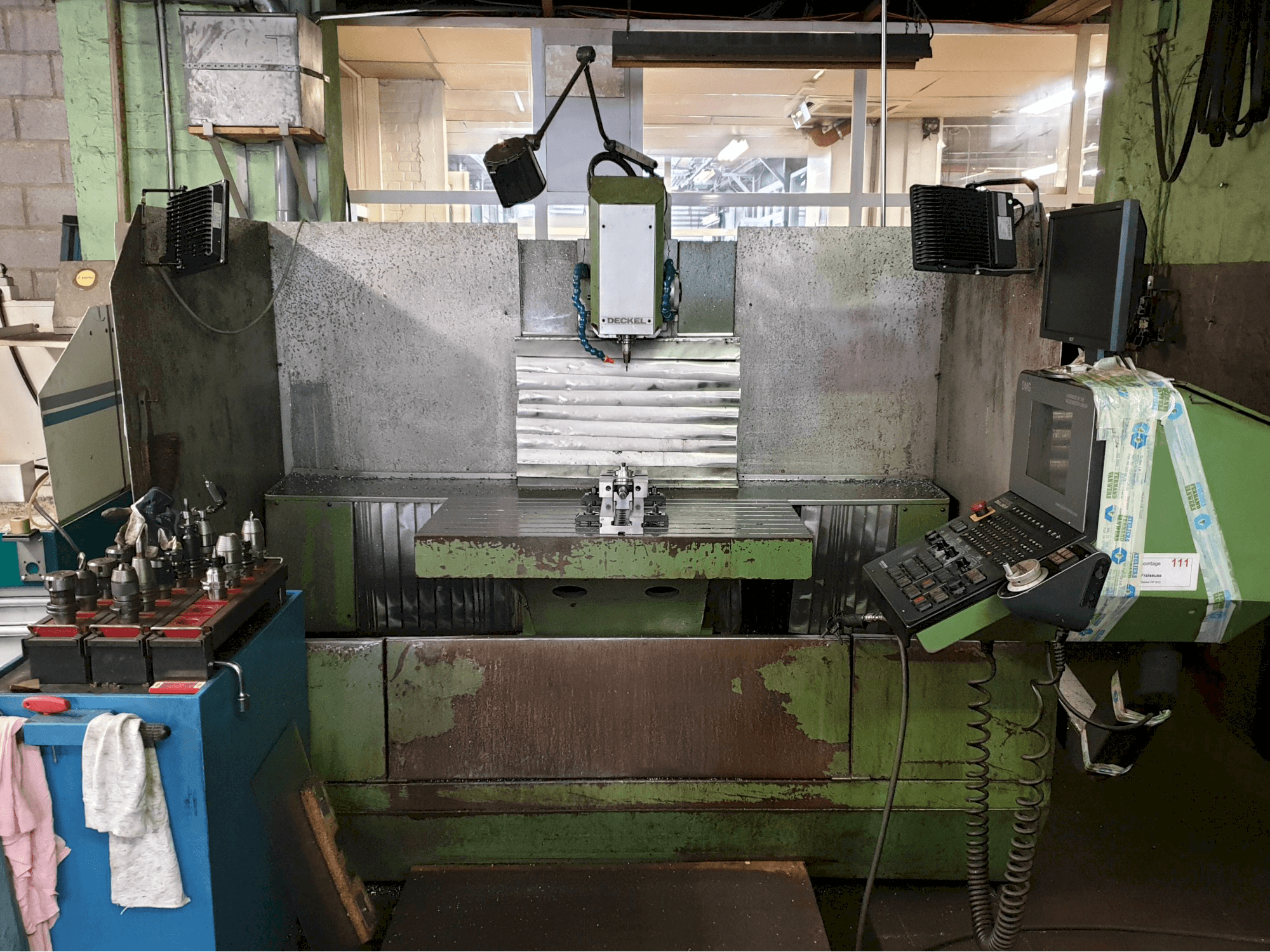

Front view of DECKEL FP5CC Machine

DECKEL - FP5CCBE-MIL-DEC-1989-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This DECKEL FP5CC Milling Machine was manufactured in 1989 in The Netherlands and counts with a production time of 18200 hours. Operated through a GRUNDIG DIALOG 11 Control unit, this machine has mainly worked with stainless steel up to 6 mm of thickness during the past for the production of prototypes. It incorporates a hinged vertical milling head that can be swivelled, and a universal working table. Vertical and horizontal spindles are included as well. It presents very good conditions, as it has been inspected on a yearly basis.

Overview

  • brand: DECKEL
  • year: 1989
  • MODEL: FP5CC
  • production hours: 18200
  • application type: Milling
  • Location: Belgium
  • machine type: Milling Machine
  • availability: Sold
  • control unit brand: GRUNDIG

Technical Information - DECKEL FP5CC

General Data

  • Measurements width: 3000 mm
  • Measurements depth: 2700 mm
  • Measurements height: 1650 mm
  • Machine weight: 4500 kg

Control Unit

  • Brand: GRUNDIG
  • Model: DIALOG 11
  • CNC main language: French
  • CNC language customizable: Yes

Main drive

  • Number of spindles: 1
  • Spindle speed range: 7000 rpm 1/MIN

Movement

  • X-AXIS Movement: 800 mm
  • Y-AXIS Movement: 600 mm
  • Z-AXIS Movement: 550 mm

Workpiece

  • Workpiece drm: 80 mm
  • Workpiece weight: 600 kg

Table

  • Outer length: 1000 mm
  • Outer width: 470 mm

Tools

  • Max weight: 12 kg
  • Max tool diameter: 100/150 mm
  • Max tool length: 300 mm

Media

  • Main electronic connection: 380 V
  • Power consumption: 33 kVA

    Additional Equipment

    • - 2xtools

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
