➤ Used DECKEL MAHO DMC 1035 V For Sale | gindumac.com

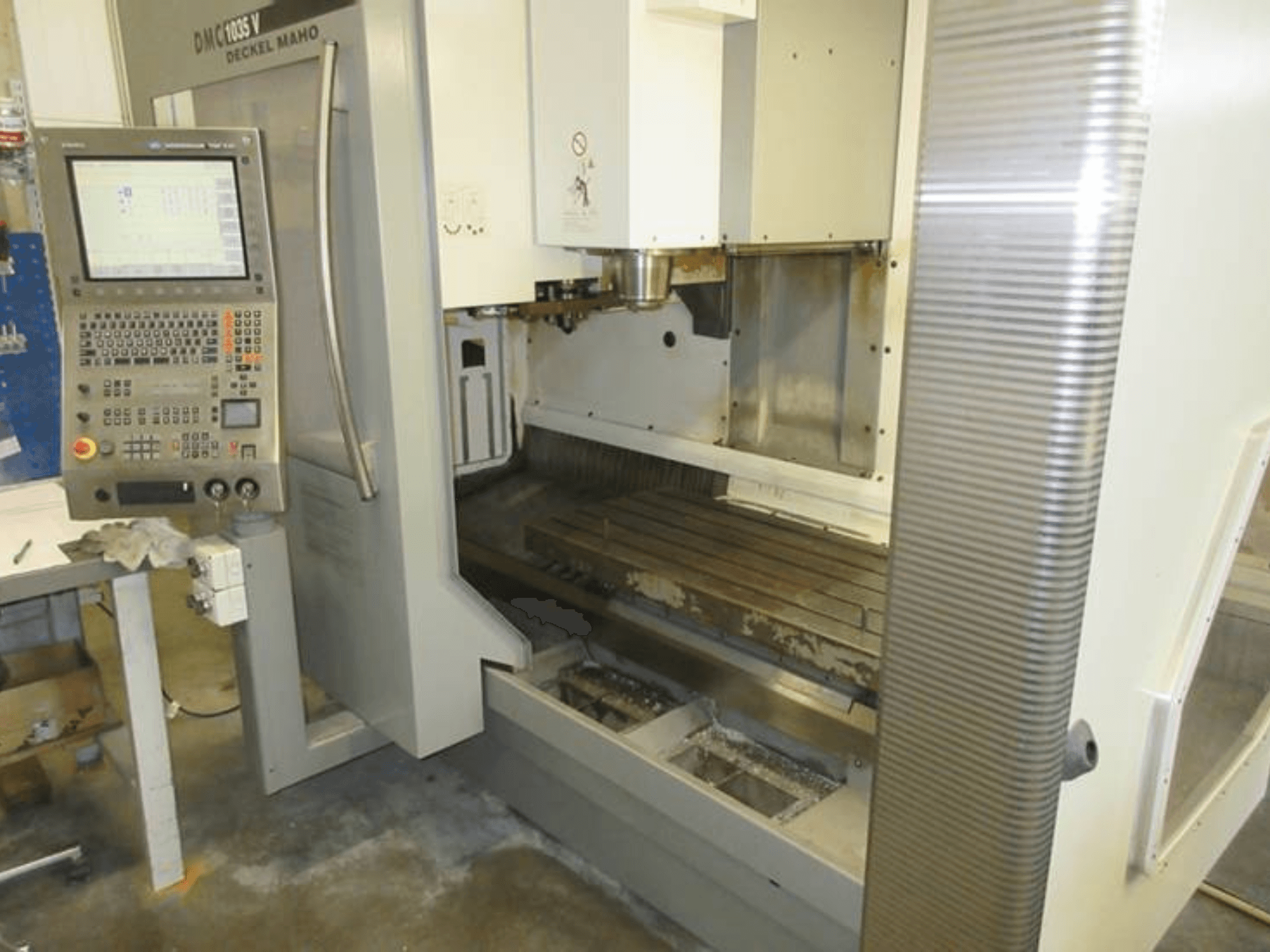

This 3-axis DECKEL MAHO DMC 1035 V was manufactured in 2007. It features an X-axis travel of 1,035 mm, Y-axis travel of 560 mm, and Z-axis travel of 510 mm. The machine is equipped with a tool changer that holds 20 positions and operates at a spindle speed of 20–8,000 rpm. If you are looking to get high-quality machining capabilities, consider the DECKEL MAHO DMC 1035 V vertical machining centre we have for sale. Contact us for further details.

Overview

brand: DECKEL MAHO
year: 2007
MODEL: DMC 1035 V
application type: Milling
Location: Estonia
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMC 1035 V

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC 530

Movement

Number of Axes: 3
X-axis Travel: 1035 mm
Y-axis Travel: 560 mm
Z-axis Travel: 510 mm

Technical Specification

Spindle Power: 13 kW
Spindle Speed: 8000 RPM
Taper Size: ISO 40
Tool Stations: 20

Additional Information

Control: Heidenhain iTNC 530, 3D-Path / 3D-Contouring
Rapid traverse: 30 m/min
Main drive: AC 13/9 kW
Tool taper: ISO 40 / SK40 DIN 69871
Tool clamping: DIN 69872
Tool changer: 20 positions, SK40, double gripper
Table size: 1,200 × 560 mm
Measuring system: Direct measuring system X/Y/Z with air purge
Coolant / air blast: Switchable via M-function at spindle nozzles
Operation mode: Process monitoring with manual intervention
Software: Smart TNC incl. DZF and engraving cycle
Data communication: DMG Netservice Euro ISDN
Operating hours: 24,915.5 h (control ON) / 12,002.7 h (spindle ON)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
