- ➤ Used DECKEL MAHO DMC 103V For Sale | gindumac.com

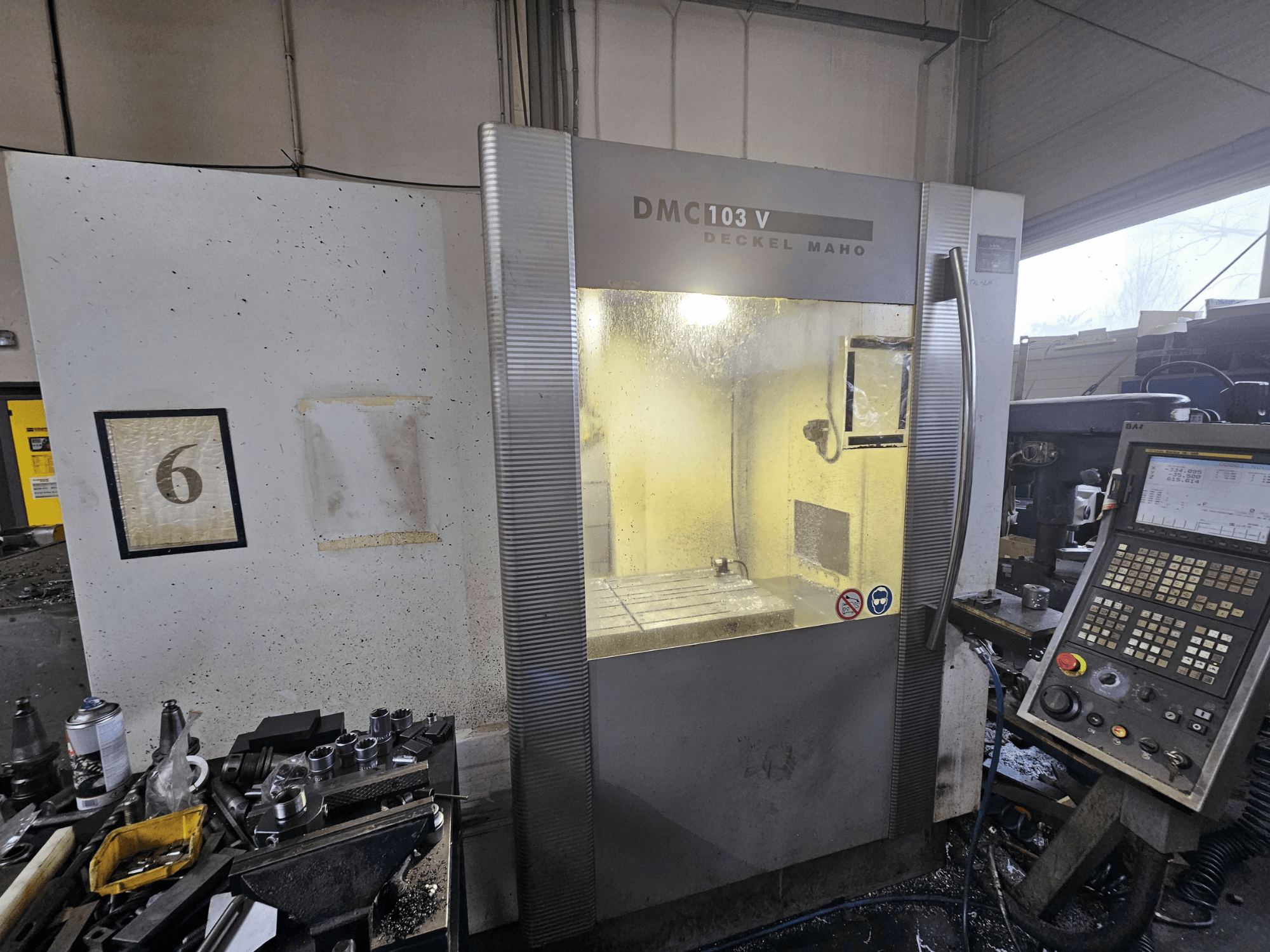

This 3-axis DECKEL MAHO DMC 103V was manufactured in 2003. It features a FANUC Series 18i-MB CNC control, with axis travels of 1000 mm in X, 600mm in Y, and 500 mm in Z. The spindle supports SK40 tooling, operates at 10,000 rpm, and the table can handle loads up to 500 kg. Consider the opportunity to buy this DECKEL MAHO DMC 103V vertical machining centre. Contact us for more information about this machine.
Overview
- brand: DECKEL MAHO
- year: 2003
- MODEL: DMC 103V
- application type: Milling
- Location: Poland
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - DECKEL MAHO DMC 103V
Control Unit
- Control Brand: FANUC
- Control Model: Series 18i-MB
Dimensions
- Machine Height: 2700 mm
- Machine Length: 3300 mm
- Machine Weight: 4500 kg
- Table Length: 600 mm
- Table Load: 500 kg
- Table Width: 1200 mm
Movement
- Number of Axes: 3
- X-axis Travel: 1000 mm
- Y-axis Travel: 600 mm
- Z-axis Travel: 500 mm
Technical Specification
- Max. Tool Weight: 8 kg
- Spindle Power: 9 kW
- Spindle Speed: 10000 RPM
- Taper Size: SK 40
Additional Information
Spindle:
Max tool length: 300 mm
Table:
Size: 1200 x 600 mm
Distance spindle nose to table surface: 650 mm
Tool magazine:
Capacity: 20 tools
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
