DECKEL MAHO - DMC 60TCZ-MIL-DEC-2003-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- DECKEL MAHO DMC 60T

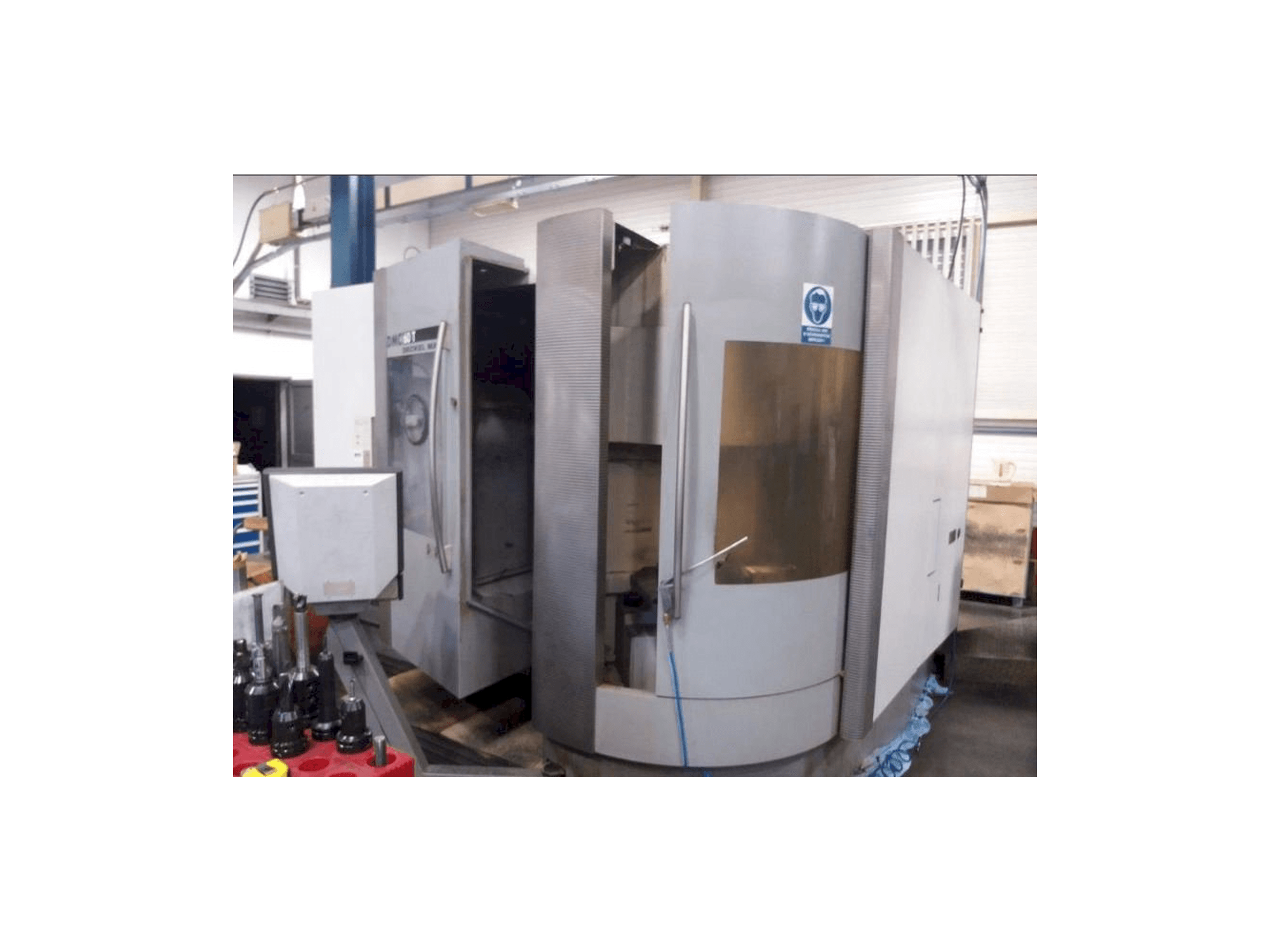

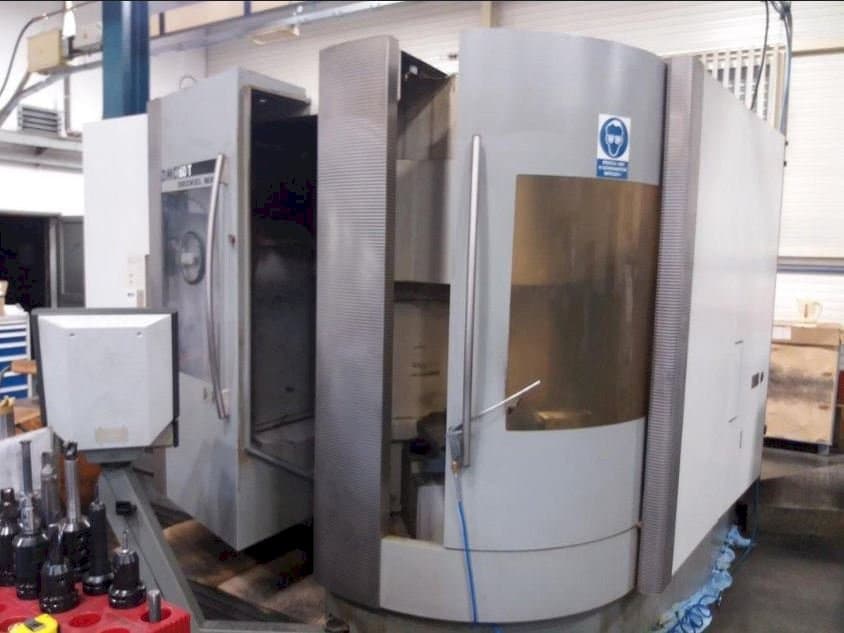

This DECKEL MAHO DMC 60T Horizontal Machining Center was made in Germany in the year 2003. It has a total production record of 49138 hours. This 5 axis machine is operated through a HEIDENHAIN iTNC530 control unit. It works with a spindle speed up to 12000 rpm and a compressed air pressure 6 bar. This machine replaced its spindle in 2020 and is in very good condition.
Overview
- brand: DECKEL MAHO
- year: 2003
- MODEL: DMC 60T
- production hours: 49138
- application type: Milling
- Location: Czech Republic
- machine type: Horizontal Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - DECKEL MAHO DMC 60T
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC530
Dimensions
- Machine Depth: 3300 mm
- Machine Height: 2600 mm
- Machine Weight: 9610 kg
- Table Length: 500 mm
- Table Width: 630 mm
Movement
- Number of Axes: 5
- X-axis Travel: 780 mm
- Y-axis Travel: 560 mm
- Z-axis Travel: 560 mm
Technical Specification
- Number of Tools: 60
- Spindle Speed: 12000 RPM
- Through-spindle Coolant: Yes
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Very good working condition
- 2020 - new spindle installed
Technical Machine Benefits
- B axis (head) -120 degrees/+30 degrees
- Compressed air pressure 6 bar
- Lan connection
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
