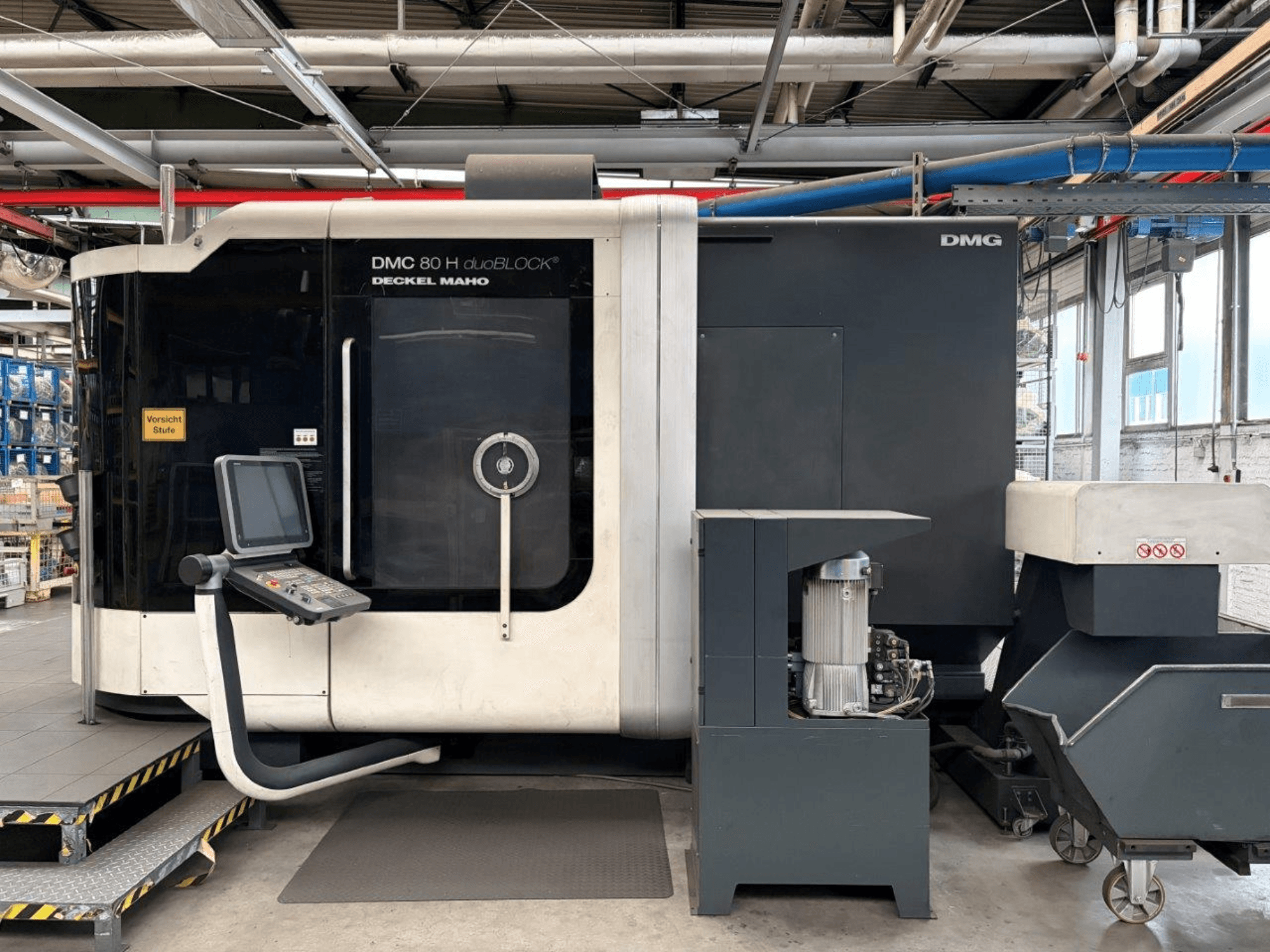

This 4-axis DECKEL MAHO DMC 80 H duoBLOCK was manufactured in 2010. It features a maximum spindle speed of 12,000 rpm and an impressive X, Y, and Z-axis travel of 800 mm each. The machine has a robust weight of 16,000 kg, ensuring stability during operation. If you are looking to get high-quality machining capabilities, consider the DECKEL MAHO DMC 80 H duoBLOCK horizontal machining centre we have for sale. Contact us for further details.
Overview
- brand: DECKEL MAHO
- year: 2010
- MODEL: DMC 80 H duoBLOCK
- application type: Milling
- Location: Germany
- machine type: Horizontal Machining Centre
- control unit brand: SIEMENS
Technical Information - DECKEL MAHO DMC 80 H duoBLOCK
Control Unit
- Control Brand: SIEMENS
- Control Model: DMG ErgoLine
Dimensions
- Machine Weight: 16000 kg
Movement
- Number of Axes: 4
- X-axis Travel: 800 mm
- Y-axis Travel: 800 mm
- Z-axis Travel: 800 mm
Technical Specification
- Spindle Speed: 12000 RPM
Additional Information
Power capacity: 103 kVA
Current (In max): 148 A
Voltage: 400 V
Frequency: 50 Hz
Control voltage: 24 V
Measuring system: Direct, absolute, photoelectric
Resolution (X, Y, Z): 0.001 mm
Position tolerance (X, Y, Z): 0.007 mm (Standard) / 0.006 mm (with Accuracy Package)
Position tolerance A-axis: 9 ws (Standard) / 8 ws (with Accuracy Package)
Position tolerance B-axis: 8 ws (Standard) / 6 ws (with Accuracy Package)
Position tolerance C-axis: 7 ws (Standard) / 5 ws (with Accuracy Package)
Table height (top of pallet to floor): 1120 mm
Distance spindle center to table: 150 mm (Motor spindle) / 145 mm (Gear spindle)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
