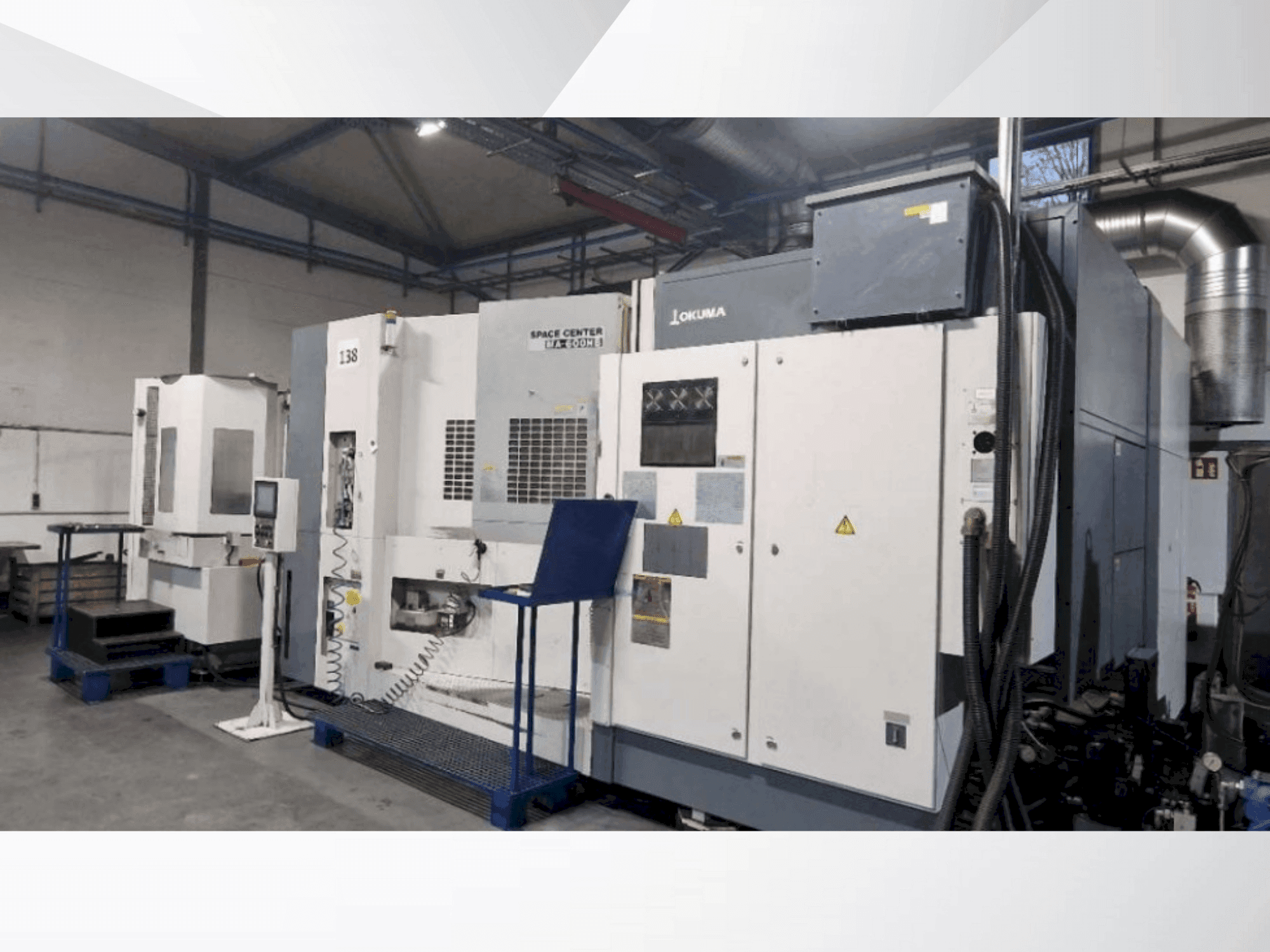

This 4-axis Okuma MA-600 HB was manufactured in 2007. It features a maximum machining area of 1000 x 900 x 1000 mm, a spindle speed up to 6000 rpm, and a rapid feed rate of 30 m/min. With 150 tool positions and a MAS BT 50 tool holder, it's ideal for complex machining tasks. Consider the opportunity to buy this Okuma MA-600 HB horizontal machining centre. Contact us for more information about this machine.
Overview
- brand: Okuma
- year: 2007
- MODEL: MA-600 HB
- application type: Milling
- Location: Germany
- machine type: Horizontal Machining Centre
Technical Information - Okuma MA-600 HB
Dimensions
- Machine Depth: 10500 mm
- Machine Weight: 27000 kg
Technical Specification
- Spindle Speed: 6000 RPM
Additional Information
Axes: 4
Maximum Machining Area X/Y/Z: 1000 mm x 900 mm x 1000 mm
4th Axis: 360° x 1°
Rapid Feed Rate: 30 m/min – 12 m/min
1° B-axis
Drive Power/Max. Torque: 37 kW 10 min, 26 kW continuous load / 606 Nm
Tool Positions: 150
Tool Holder: MAS BT 50
ConSep System
Measuring Probe
Tool Breakage Monitoring
Pallet station with 6 pallets, pallet size 630 x 630 mm
External cooling/internal cooling 20 bar/internal air
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
