➤ Used SW BX 621 Machining Center For Sale | gindumac.com

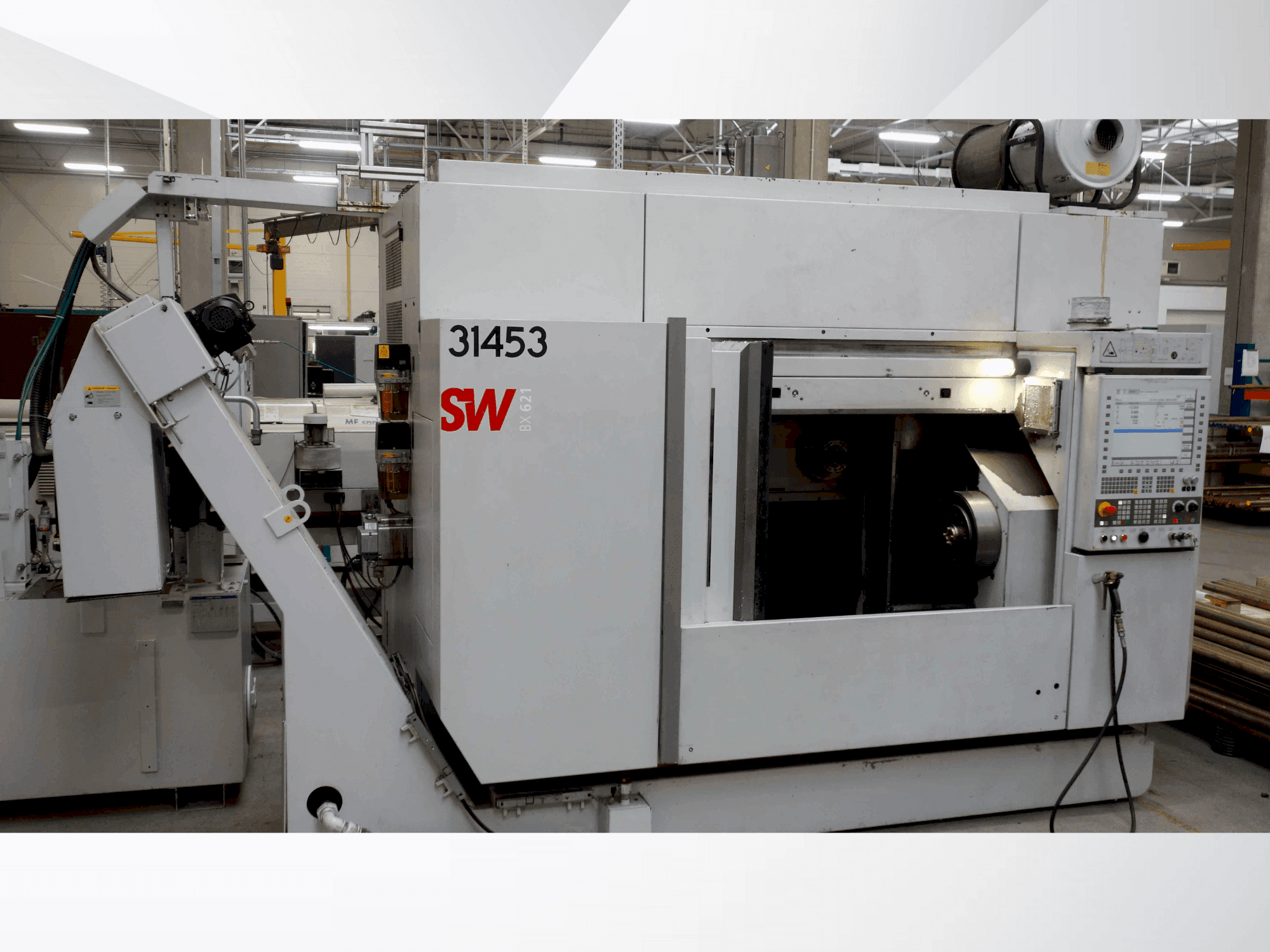

This 4-axis SW BX 621 horizontal machining center was manufactured in 2013. It features a robust SINUMERIK 840D sl CNC control system and dual liquid-cooled motorized spindles, each offering up to 6,000 rpm and 26 kW power. The machine supports a maximum tool diameter of 115mm and a tool length of 300mm, with a rapid traverse speed of up to 60 m/min. Ideal for precision machining, the SW BX 621 machine we have for sale. Contact us for more information.

Overview

brand: SW
year: 2013
MODEL: BX 621
application type: Milling
Location: Switzerland
machine type: Horizontal Machining Centre
control unit brand: SIEMENS

Technical Information - SW BX 621

Control Unit

Control Brand: SIEMENS
Control Model: SINUMERIK 840D sl

Dimensions

Machine Depth: 5800 mm
Machine Height: 3300 mm
Machine Weight: 12500 kg

Movement

X-axis Travel: 600 mm
Y-axis Travel: 525 mm
Z-axis Travel: 400 mm

Technical Specification

Spindle Power: 6 kW
Spindle Speed: 6000 RPM

Additional Information

Additional equipment

Liquid-cooled motorised spindle in AC synchronous technology

Machine Benefits

Technical Machine Benefits

Swivelling table (a-axis): direct-driven, horizontal nc rotary table with counter bearing
Max. Fixture / workpiece dimensions: Ø 630 mm x 1420 mm
Max. Fixture / workpiece weight: 600 kgmax. Fixture / workpiece weight: 600 kgmax. Fixture / workpiece weight: 600 kg
Spindle arrangement: horizontal, side by side
Spindle distance: 600 mm

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
