➤ Used DECKEL MAHO DMU 50 M For Sale | gindumac.com

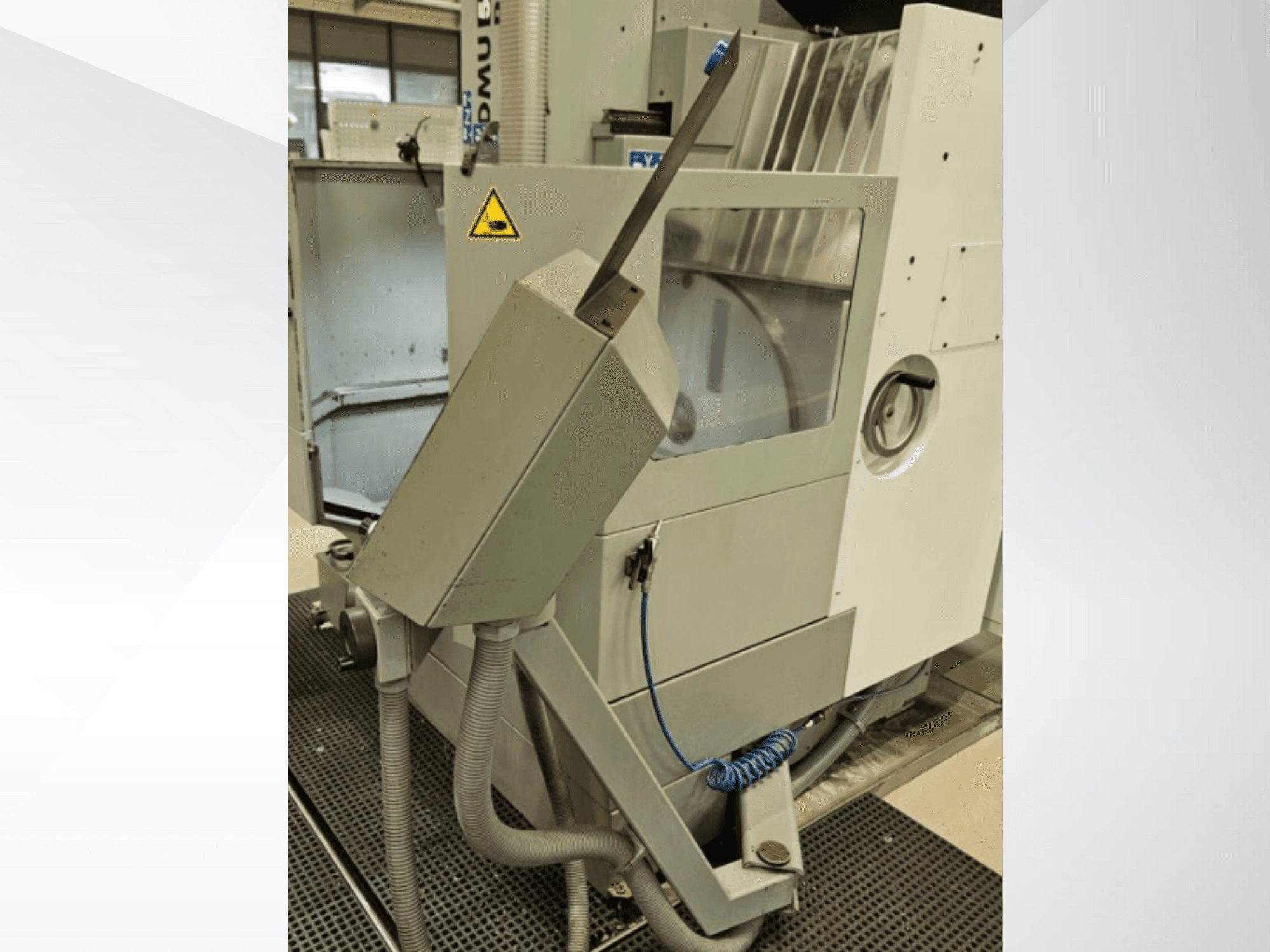

This 3-axis DECKEL MAHO DMU 50 M was manufactured in 2003. It features a Heidenhain TNC 310 control, electronic handwheel HR 150, and a main drive speed of 4,500 min-1. The machine offers a rapid traverse of 5 m/min and a working range of 500 x 400 x 400 mm. If you are looking to get high-quality milling capabilities consider the DECKEL MAHO DMU 50 M machine we have for sale. Contact us for more information.

Overview

brand: DECKEL MAHO
year: 2003
MODEL: DMU 50 M
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMU 50 M

General Data

Measurements height: 2540 mm
Machine weight: 2800 kg

Control Unit

Brand: HEIDENHAIN
Model: TNC 310

Main drive

Spindle speed range: 4500 1/MIN
Tool taper: SK 40
Number of axis: 3

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 400 mm

Table

Table load: 200 kg

Additional Information

Electronic handwheel: HR 150
Feed drive (X/Y/Z): infinitely variable up to 5,000 mm/min
Rapid traverse: 5 m/min
Travel measuring system: X/Y/Z resolution 0.001 mm
Positioning tolerance: 0.010 mm
Work table: rotary table, clamping surface 700 x 500 mm
T-slots: pitch 63 mm / size 14 H7
Centering hole: diameter 30 mm H6
Table swivel range: +95° / -10°
Quantity available: 4 units

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
