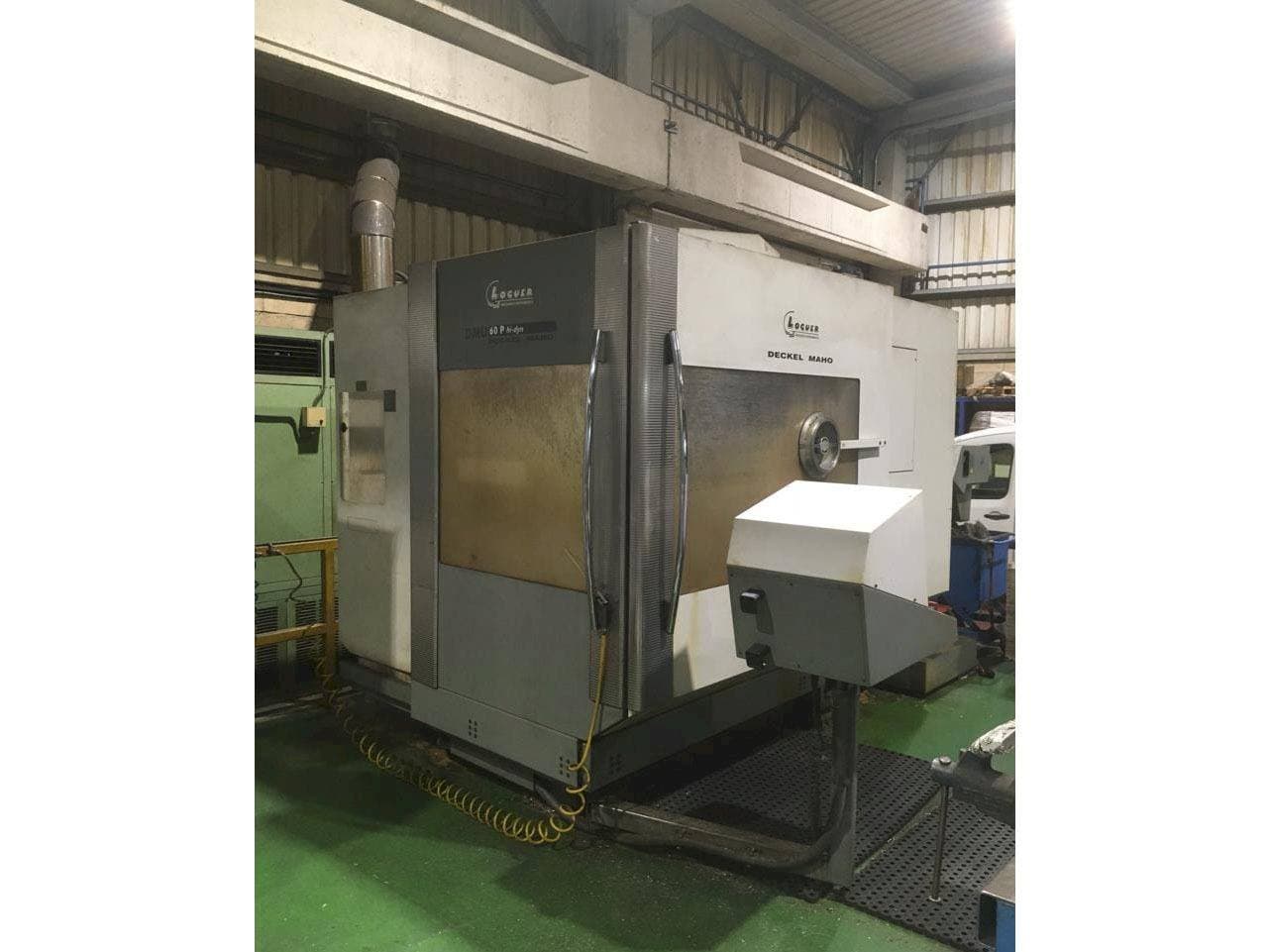

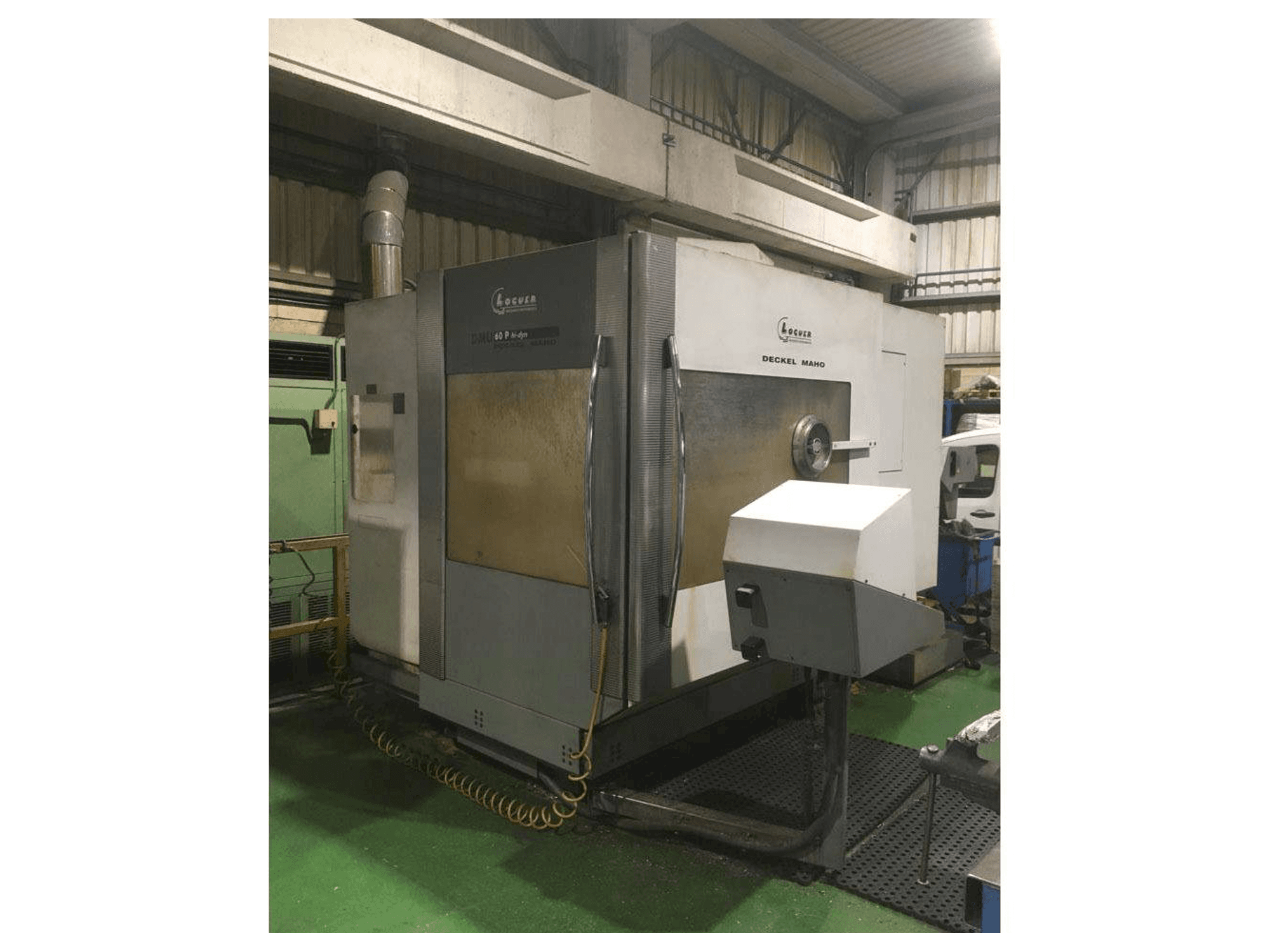

Front view of DECKEL MAHO DMU 60P hi-dyn  machine

DECKEL MAHO DMU 60P hi-dyn

DECKEL MAHO - DMU 60P hi-dyn

2001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Deckel Maho DMU 60P hi-dyn Vertical and Horizontal Machining center was manufactured in the year 2001 in Germany and has 33410 production hours. It is equipped with a HEIDENHAIN TNC 426 control unit and has 5 axis. The machine has a spindle speed of 12000 rpm.

Overview

  • brand: DECKEL MAHO
  • year: 2001
  • MODEL: DMU 60P hi-dyn
  • production hours: 33410
  • application type: Milling
  • Location: Spain
  • machine type: Machining centers (vertical)
  • availability: Sold
  • control unit brand: Heidenhain
  • GINDUMAC ID: ES-MIL-DEC-2001-00004

Technical Information

General Data

  • Measurements width: 6300 mm
  • Measurements depth: 6500 mm
  • Measurements height: 2700 mm
  • Machine weight: 10700 kg

Control Unit

  • Brand: Heidenhain
  • Model: TNC 426

Main drive

  • Spindle speed range: 12000 1/MIN
  • Tool taper: SK 40
  • Number of axis: 5

Movement

  • X-AXIS Movement: 600 mm
  • Y-AXIS Movement: 700 mm
  • Z-AXIS Movement: 600 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Longitudinal / transverse / vertical feed rate: 15000/15000/15000mm / min.
      • - Rapid traverse / longitudinal / transverse / vertical feed rate: 50/50/50/50 m / min
      • - Clamping system: din 69872
      • - Tool changer, tool magazine, chains, 30 places
      • - Type of magazine chain, tool changer flat: horizontal
      • - Automatic swivelling milling head
      • - Automatic change from vertical to horizontal machining
      • - Main drive type: ac drive power (100% ed): 19 kw, drive power (40% ed): 28 kw
      • - Prod pack. 40 bar / 23 l / min
      • - Production package 40 bar / 23 i / min / 580 psi / 6 litres / min (theoretical pump output)
    • Qualitative Machine Benefits:
      • - Theoretical pump output) 600 l / 158 gallon tank, rotating clear view-window
      • - Scraper flight conveyor, coolant through spindle form centre d e ad form
      • - Tilting nc rotary table © 630 mm
      • - Type of measurement system: direct measurement system table surface: 0 630 mm
      • - Centre diameter: 50 mm h6
      • - Maximum load (table centre): 500 kg slot width: 14 mm
      • - Distance between t-slots: 63 m m
      • - Max. Rotational speed 4. Axis: 7 rpm
      • - 4 axes (turning radius): 360 x 0. 001 degrees
      • - 5 axes (turning radius):- 4 5 / + 30 x 0. 001 degrees rotational speed of axis 5: 7. 3 rpm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
