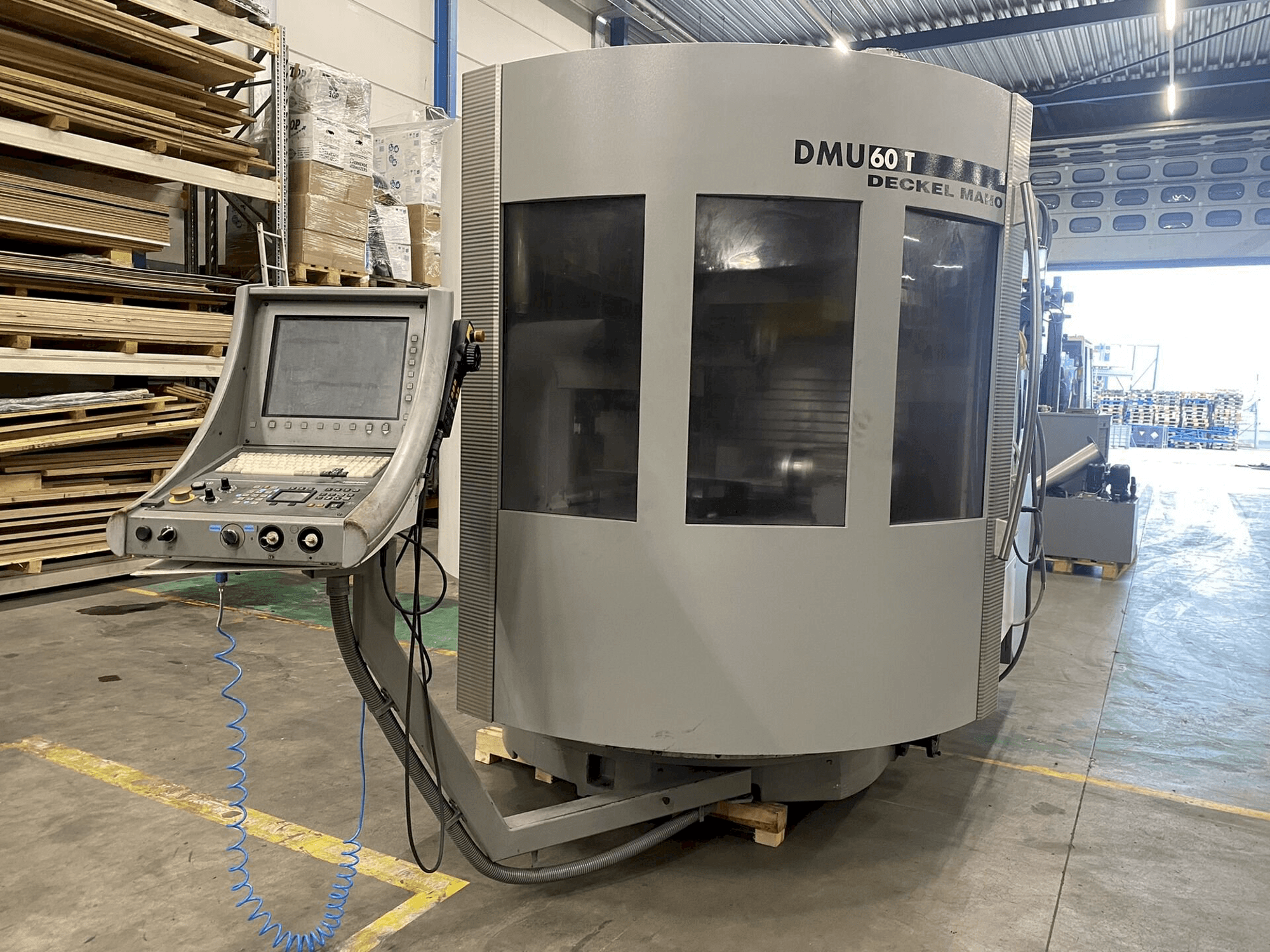

Front view of DECKEL MAHO DMU60T  machine

DECKEL MAHO DMU 60T

DECKEL MAHO - DMU 60T

2001

25,000 €

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This DECKEL MAHO DMU60T Vertical Machining center was manufactured in the year 2001. It is equipped with a HEIDENHAIN control unit and has 5 axis. The machine has a spindle speed of 18000 rpm.

Overview

  • brand: DECKEL MAHO
  • year: 2001
  • MODEL: DMU 60T
  • production hours: 22000
  • application type: Milling
  • Location: Greece
  • machine type: Machining centers (vertical)
  • availability: Immediatly
  • control unit brand: HEIDENHAIN
  • GINDUMAC ID: GR-MIL-DEC-2001-00001

Technical Information

General Data

  • Measurements width: 2200 MM
  • Measurements depth: 3500 MM
  • Measurements height: 2300 MM
  • Machine weight: 6700 KG

Control Unit

  • Brand: HEIDENHAIN
  • Model: TNC 430

Main drive

  • Spindle speed range: 18000 1/MIN
  • Number of axis: 5

Movement

  • X-AXIS Movement: 630 MM
  • Y-AXIS Movement: 560 MM
  • Z-AXIS Movement: 560 MM

    Additional Equipment

    • - Accessories include 30 SK40 toolholders (Mainly Haimer and Weldon, with 5 ER32, one 80mm facemill and others, see photos for reference)
    • - Magnetic vice table 350x350mm. Two brand new vices, FREUTEK ATT0009
    • - Vice Jaw opening: 80mm, Jaw height: 46 mm, Maximum opening: 220 mm and FREUTEK ATT0010 Vice Jaw opening: 150mm Jaw height: 46 mm, Maximum opening: 220 mm.

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - 4th axis: hofmann rwnc-160 5th axis: rotary swivel spindle head 115 degrees
        • - Cooling unit: schimpke dk25-v/s0
        • - Max. Workpiece weight 400 kg
        • - Table surface area l x w 1000x600 mm
        • - Taper sk40
        • - Toolchanger positions 20
        • - Feed range 20-10000 mm/min rapid motion 20 m/min
        • - Total power requirement 28 kw / 49kva
      • Qualitative Machine Benefits:
        • - Max. Tool diameter: 160 mm
        • - Max. Tool length: 315 mm
        • - Max. Tool weight: 8 kg
        • - Max. Weight in magazin: 100 kg

      Extra information

      • - Max. tool diameter: 160 mm Max. tool length: 315 mm Max. tool weight: 8 kg Max. weight in magazin: 100 kg 4th axis: HOFMANN RWNC-160 5th axis: Rotary swivel spindle head 115 degrees Cooling unit: SCHIMPKE DK25-V/S0 Z- 560 mm X- 630 mm Y-560 mm max. workpiece weight 400 kg Control Heidenhain TNC 430 Table surface area l x w 1000x600 mm Taper SK40 Toolchanger positions 20 Turning speed range 18000 rpm Feed range 20-10000 mm/min Rapid motion 20 m/min Total power requirement 28 kW / 49kVA Weight approx. 6700 kg Dimensions (l x w x h) approx. 3500x2200x2300 mm It is has a 4th axis rotary and a positional 5th axis Cooling unit Accessories include 30 SK40 toolholders (Mainly Haimer and Weldon, with 5 ER32, one 80mm facemill and others, see photos for reference) Magnetic vice table 350x350mm. Two brand new vices, FREUTEK ATT0009 Vice Jaw opening: 80mm, Jaw height: 46 mm, Maximum opening: 220 mm and FREUTEK ATT0010 Vice Jaw opening: 150mm Jaw height: 46 mm, Maximum opening: 220 mm.

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
