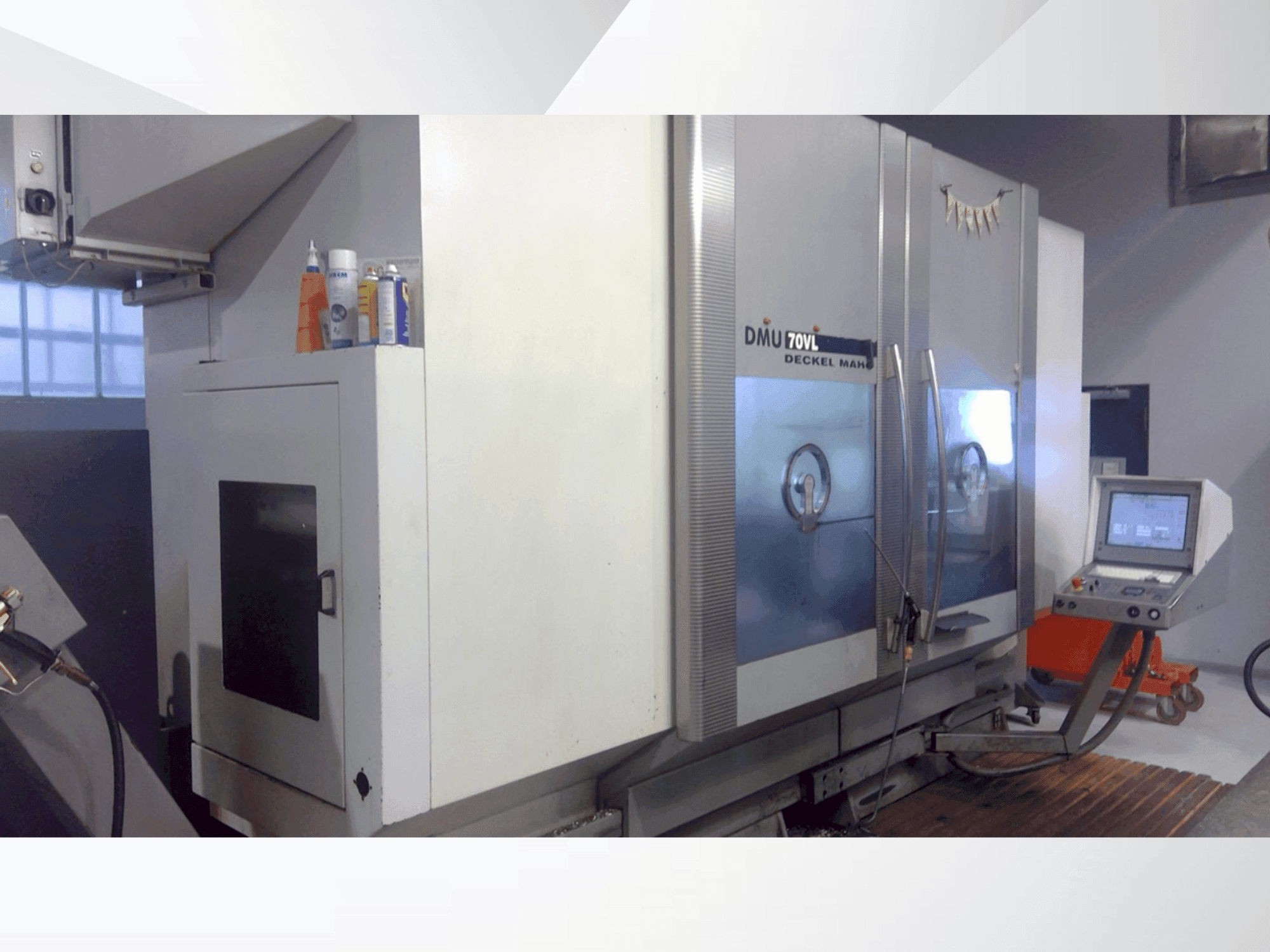

Front view of DECKEL MAHO DMU 70VL machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DECKEL MAHO DMU 70VL

Photo Gallery

DECKEL MAHO - DMU 70VLHR-MIL-DEC-2000-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DECKEL MAHO DMU 70VL Milling machine

This DECKEL MAHO DMU 70VL Milling machine was manufactured in the year 2000. It has 5 axis and a table size of 700x500 mm. The machine has a spindle speed of 20-12000 rpm.

Overview

brand: DECKEL MAHO
year: 2000
MODEL: DMU 70VL
application type: Milling
Location: Croatia
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMU 70VL

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC 430

Dimensions

Machine Depth: 3300 mm
Machine Height: 2800 mm
Machine Weight: 13000 kg
Table Length: 700 mm
Table Load: 350 kg
Table Width: 500 mm

Movement

B-axis Max: 360°
C-axis: 360°
Number of Axes: 5
X-axis Travel: 710 mm
Y-axis Travel: 520 mm
Z-axis Travel: 520 mm

Technical Specification

Spindle Speed: 12000 RPM
Tool Stations: 64

Additional Information

Machine Benefits

Technical Machine Benefits

Tool taper: sk40 / din 69871/ a-d
Feed: stepless: 10000 mm/min
Rapid traverse in x-y-z axis: 40-30-30 m/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
