➤ Used DEMAG D 420 For Sale | gindumac.com

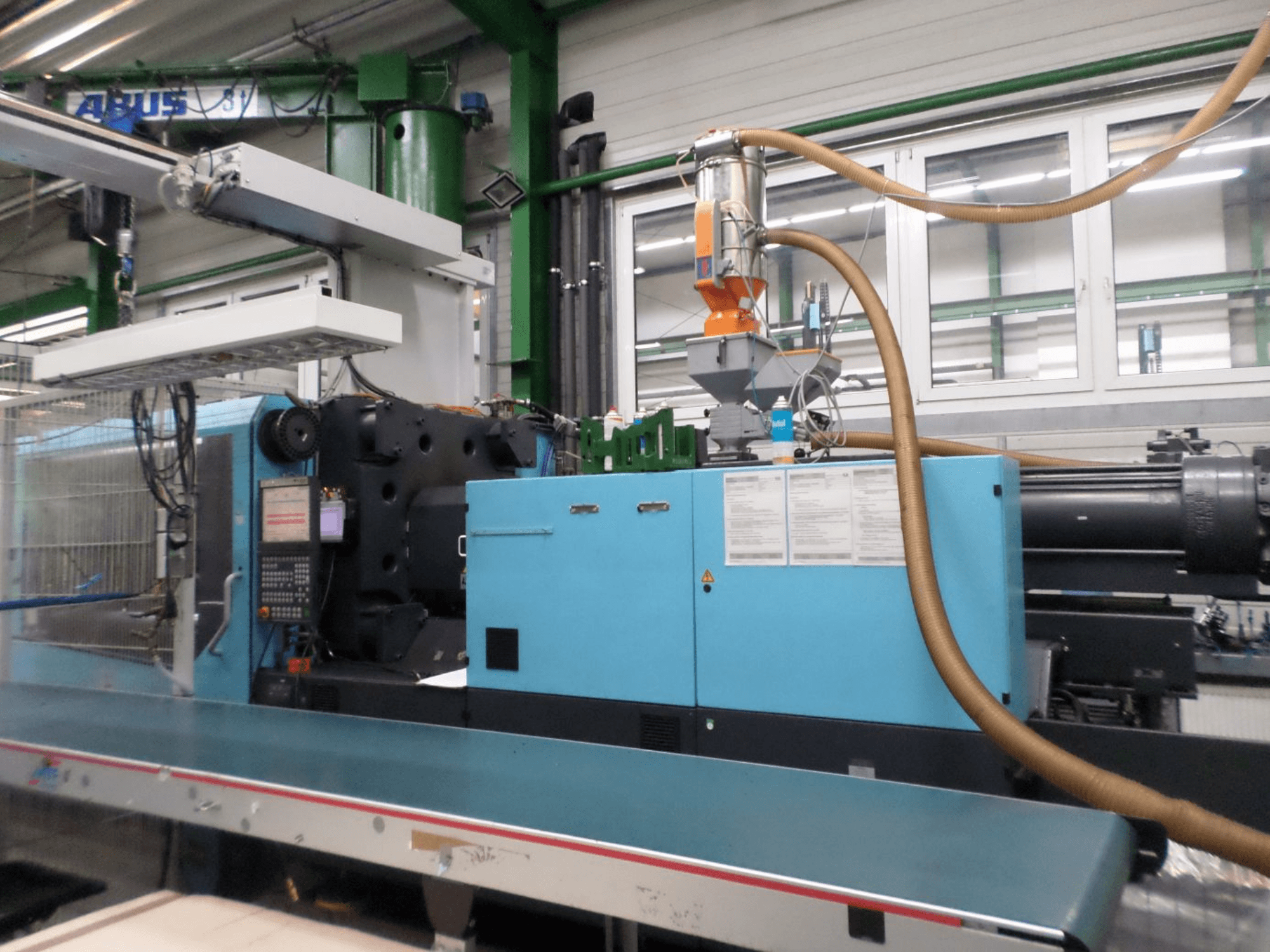

Hydraulic injection moulding machine manufactured in 2015. This DEMAG D 420 features a clamping force of 420 t and an injection weight of 1100 g. It includes a handling system with impressive working strokes of Z=2500 mm, Y=1600 mm, and X=900 mm. If you are looking to get high-quality injection moulding capabilities, consider the DEMAG D 420 machine we have for sale. Contact us for further details regarding this machine.

Overview

brand: DEMAG
year: 2015
MODEL: D 420
production hours: 41610
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine

Technical Information - DEMAG D 420

Technical Specification

Clamping Force: 4118 kN
Screw Diameter: 70 mm

Additional Information

- Control Unit: NC 5

- Injection Weight: 1,100 g

- Core Pulls (Hydraulic): 4

- Hydraulic Cascades: 4

- Hot Runner Zones: 40

- Handling System / Robot: Wittmann DR 832 0989 (YOM 2015)

- Robot Linear Axes: Z=2500 mm (Horizontal), Y=1600 mm (Vertical), X=900 mm (Demolding)

- Robot Servo Wrist Axes: C-Axis servo 180°, B-Axis servo 270°

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
