DEMAG - Ergotech Sytem 200-610FR-INJ-DEM-1997-00002

Name: DEMAG Ergotech Sytem 200-610
Brand: DEMAG
SKU: FR-INJ-DEM-1997-00002
Price: 9000 EUR
Availability: InStock

9,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used DEMAG Ergotech Sytem 200-610 | Injection Moulding

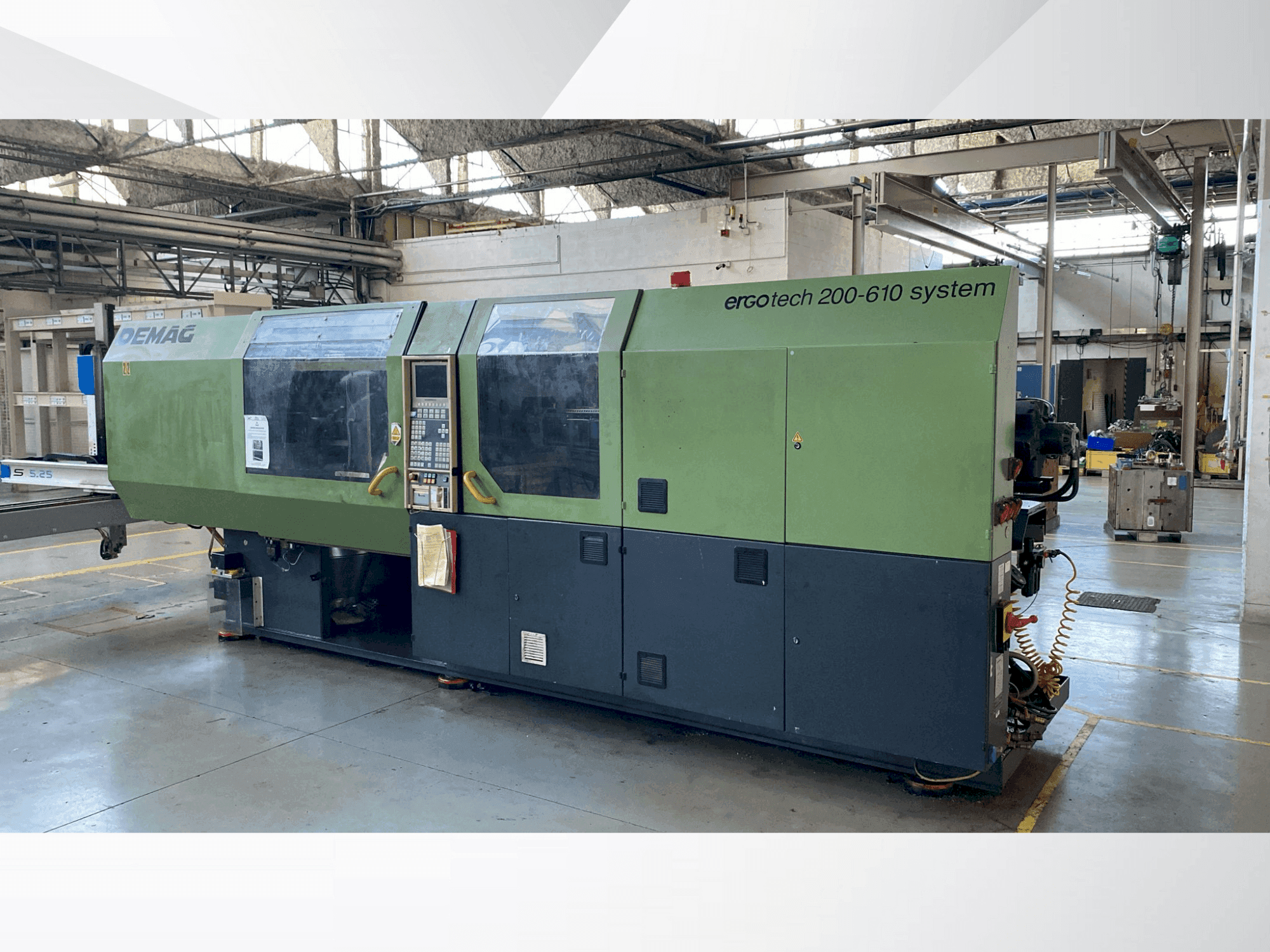

This DEMAG Ergotech System 200-610 hydraulic injection moulding machine was manufactured in 1997. It's a robust option for efficient plastic processing tasks. Contact us for more information.

Overview

brand: DEMAG
year: 1997
MODEL: Ergotech Sytem 200-610
application type: Injection Moulding
Location: France
machine type: Hydraulic Injection Moulding Machine

Technical Information - DEMAG Ergotech Sytem 200-610

Injection Unit

Screw diameter: 40 mm
Stroke volume: 40 mm CM³
Injection pressure: 2402 bars

Clamping unit

Clamping force: 200 tons KN
Ejector stroke: 180 mm

Additional Information

Additional equipment

SEPRO ROBOT INCLUDED

Machine Benefits

Qualitative Machine Benefits

Maximum mold weight: 2500 kg
Mold weight on moving platen: 1700 kg
Oil reservoir volume: 650 liters
Pump power: 30 kw
Heater power: 13 kw
Heater power: 13 kw

Technical Machine Benefits

Mold size: 230 - 500 mm
Ejection rod length: 230 mm
Fixed centering plate diameter: 160 mm
Movable centering plate diameter: 160 mm
Platen tapping diameter: m20
Number of cores: 1
Press type: nc4
Horizontal tie bar spacing: 560 mm
Vertical tie bar spacing: 560 mm
Maximum platen opening: 1235 mm

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
