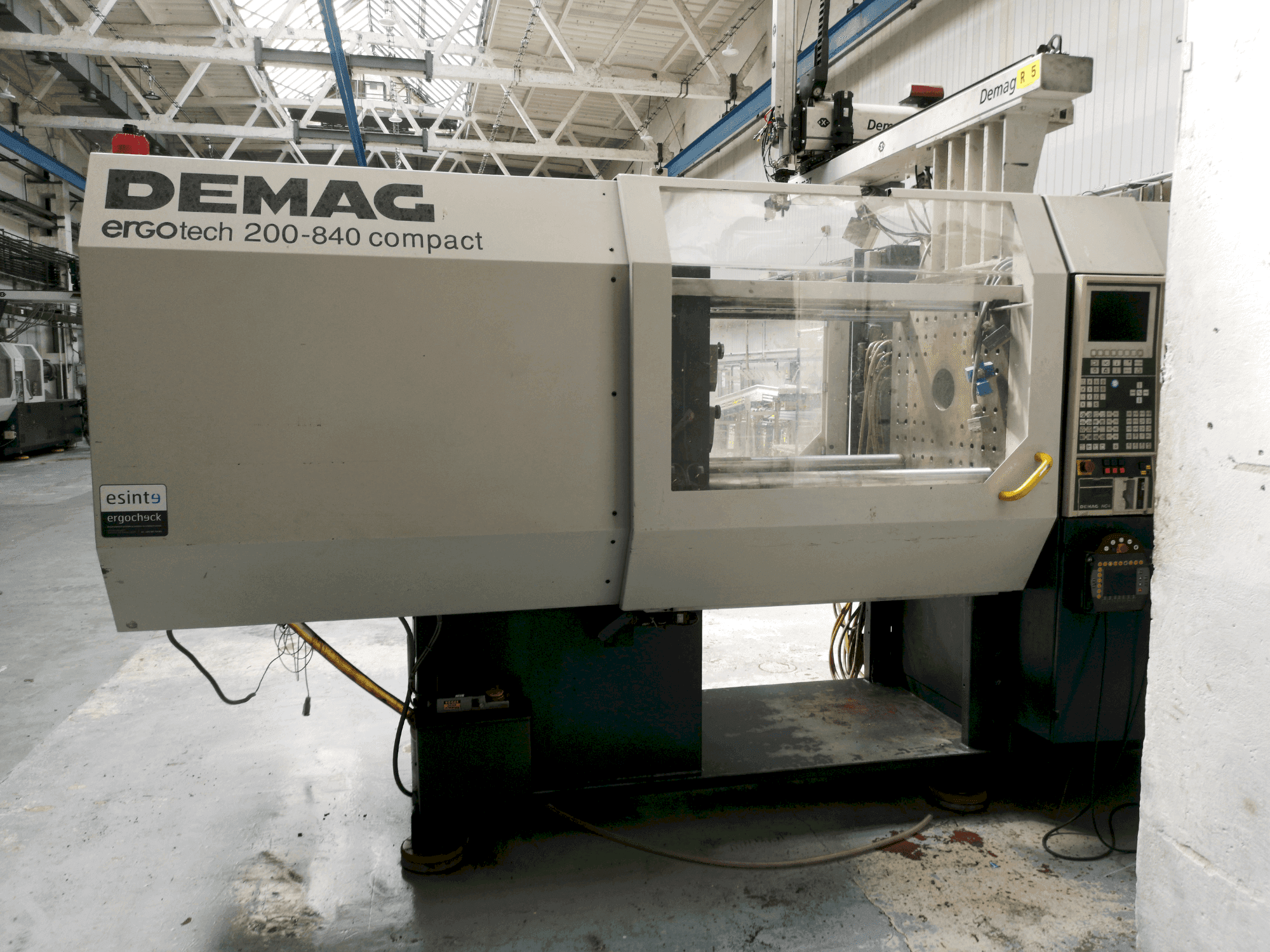

This DEMAG Ergotech 200-840 Compact was manufactured in 1998. A robust injection moulding machine with a clamping force of 2000 kN and a screw diameter of 45 mm. It features a DEMAG NC4 control system and includes a Wittmann robot. Ideal for precision molding, the machine we have for sale offers a shot weight of 326 g/PS and an injection pressure of 2400 bar. For more information about this injection moulding machine, please reach out to us.
Overview
- brand: DEMAG
- year: 1998
- MODEL: Ergotech 200-840 Compact
- application type: Injection Moulding
- Location: Czech Republic
- machine type: Hydraulic Injection Moulding Machine
- availability: Sold
Technical Information - DEMAG Ergotech 200-840 Compact
General Data
- Measurements width: 1700 mm
- Measurements depth: 5700 mm
- Measurements height: 2100 mm
- Machine weight: 10000 kg
Control Unit
- Model: NC4
Injection Unit
- Screw diameter: 45 mm
- Shot weight: 326 g/PS
- Stroke volume: 358 cm³
- Injection pressure: 2400 bar
Clamping unit
- Clamping force: 2000 KN
- Opening stroke: 575 mm
- Max open daylight: 1235 mm
- Distance between bars: 560 mm
- Mould height min: 310 mm
- Size of mold platens: 830 mm
- Ejector stroke: 180 mm
Media
- Main electronic connection: 400 V
Additional Equipment
- - Robot Wittmann
Additional Information
- - Machine still under power
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
