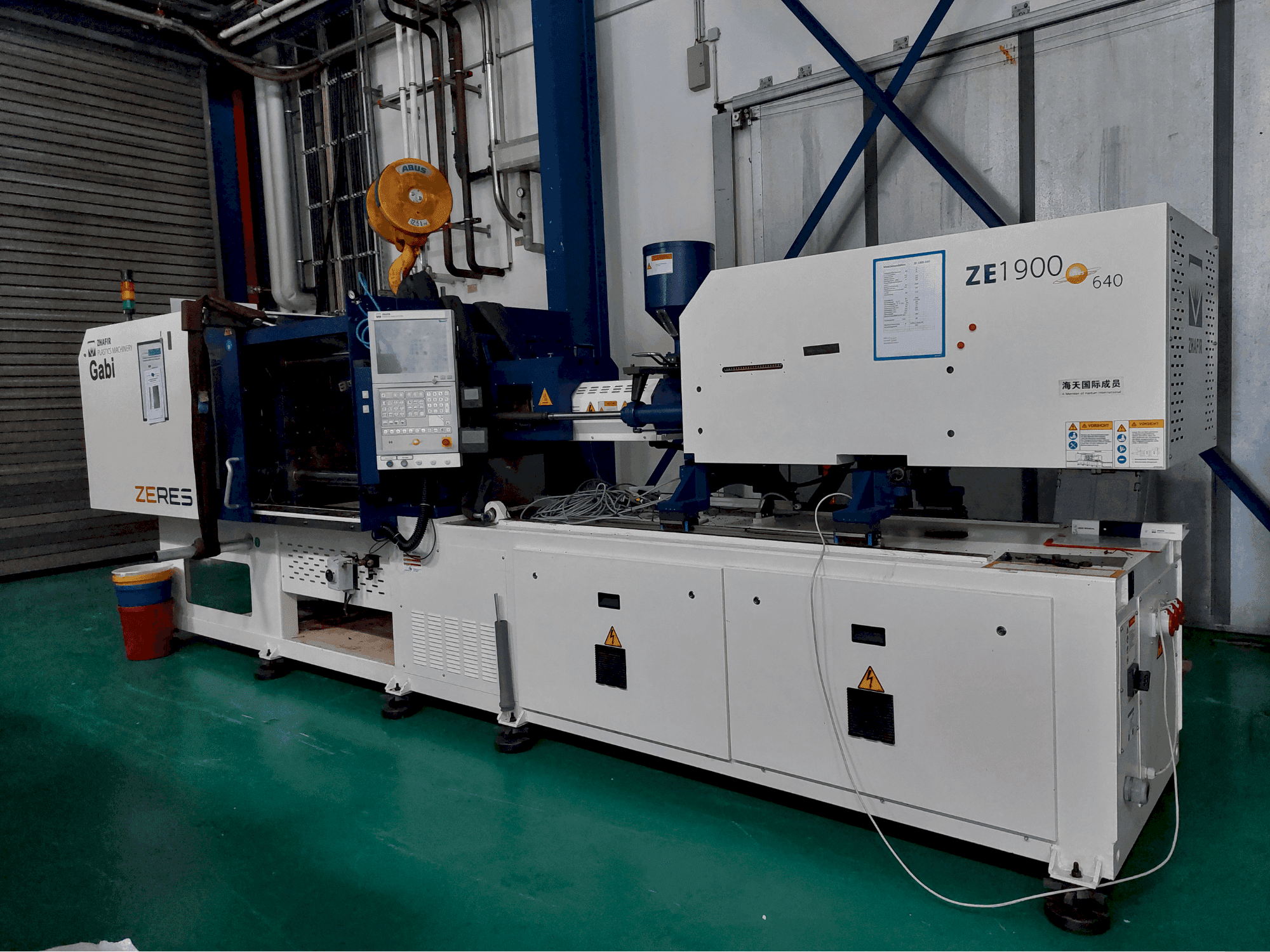

HAITIAN - ZHAFIR ZERES ZE1900DE-INJ-HAI-2018-00002

Additional equipment

• Air valves: 2

Machine Benefits

Technical Machine Benefits

• Screw Type: A / B / C

• Screw Diameter: 40 mm (A) / 45 mm (B) / 50 mm (C)

• Screw L/D Ratio: 22.5 (A) / 20 (B) / 18 (C)

• Injection Distance: 201 mm

• Calculated Injection Volume: 252 cm³ (A) / 319 cm³ (B) / 395 cm³ (C)

• Injection Capacity (PS): 229 g (A) / 290 g (B) / 358 g (C)

• Injection Speed: 160 (250)* mm/s

• Injection Pressure: 253 Mpa / 2580 Kgf/cm² (A) | 200 Mpa / 2040 Kgf/cm² (B) | 162 Mpa / 1650 Kgf/cm² (C)

• Holding Pressure: 202 Mpa / 2060 Kgf/cm² (A) | 160 Mpa / 1630 Kgf/cm² (B) | 130 Mpa / 1320 Kgf/cm² (C)

• Screw Speed: 350 RPM

• Nozzle Touch Force: 39.2 {4.0} KN{tf}

• Nozzle In Size: 50 mm

• Heating Input Power: 14.2 KW

• Minimal Mould Size H*V: 370*335 mm

• Ejector Stroke: 130 mm

• Ejector Force: 44.1 {4.5} KN{tf}

• Hopper Capacity: 25 L

• Platen size: 840 x 790 mm

• Distance between uprights: 570 x 520 mm

• Installation height: 200 to 550 mm

• Opening width: 470 mm

• Max ejector stroke: 130 mm / max ejector bar length: 320 mm

• Ejector coupling type: central haitian standard Ø 32mm / m16

• Centering ring: 160 mm / cascade control: 4-fold / core pulls bwap: 2

• Hot runner control units: external

• Without handling
