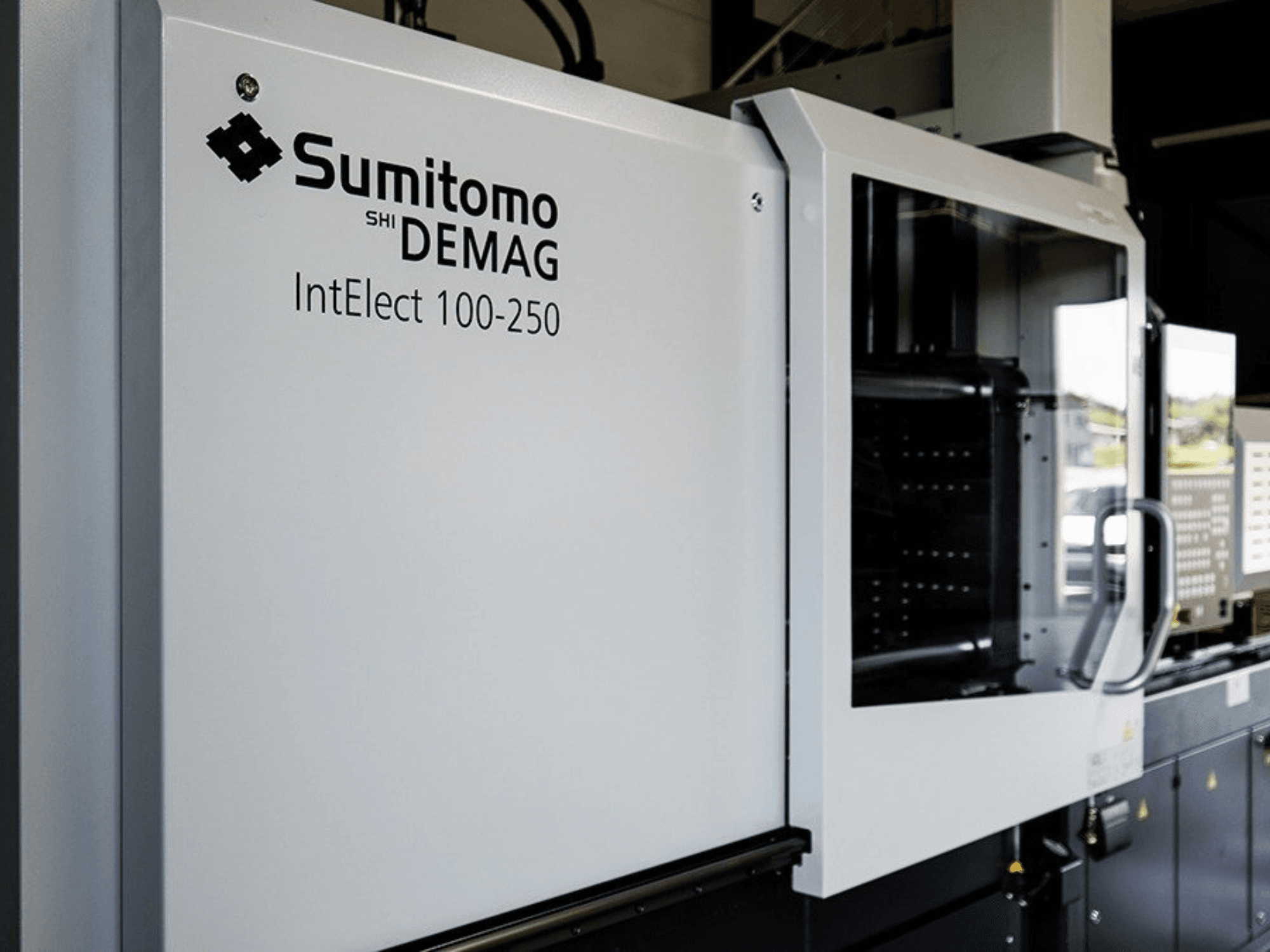

Front view of SUMITOMO SHI DEMAG IntElect 100/250 electrical injection moulding machine with control panel and safety features.
Front view of SUMITOMO SHI DEMAG IntElect 100/250 electrical injection moulding machine with control panel and safety features.

SUMITOMO SHI DEMAG - IntElect2 100/470-250DE-INJ-SUM-2020-00002

152,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 5-axis SUMITOMO SHI DEMAG IntElect2 100/470-250 was manufactured in 2021. It features a clamping force of 1000 kN and a tie bar distance of 470 mm. The machine includes an injection unit size of 250 and a screw diameter of 30 mm. If you are looking to get high-quality injection moulding capabilities, consider the SUMITOMO SHI DEMAG IntElect2 100/470-250 electrical injection moulding machine we have for sale. Contact us for further details.

Overview

  • brand: SUMITOMO SHI DEMAG
  • year: 2021
  • MODEL: IntElect2 100/470-250
  • production hours: 9500
  • application type: Injection Moulding
  • Location: Germany
  • machine type: Electrical Injection Moulding Machine
  • Available from: 01/09/2026

Technical Information - SUMITOMO SHI DEMAG IntElect2 100/470-250

Dimensions

  • Machine Weight: 5290 kg

Technical Specification

  • Clamping Force: 1000 kN

Additional Information

- Tie Bar Distance: 470 mm

- Mould Height Min.: 180 mm

- Mould Height Max.: 550 mm

- Centering Diameter (Fixed Platen): 125 mm

- Centering Diameter (Moving Platen): 125 mm

- Ejector Stroke: 150 mm

- Ejector Force: 32 kN

- Ejector Speed: 333 mm/s

- Injection Unit Size: 250

- Screw Diameter: 30 mm

- L/D Ratio: 20

- Injection Speed: 350 mm/s

- Control Unit: SDIAS

- Mains Connection / Voltage: 400 V / 50 Hz

- Current / Amperage: 70 A

- Short Circuit Capacity (Icw): 2.0 kA

- Max. Hydraulic Pressure (Pmax): 210 bar

- Total Weight: 5290 kg

- Robot System Model: SDR 5S H&P

- Robot Load Capacity: 3 kg

- Robot X-Stroke (Transverse Stroke): 1000 mm (Non-operator side)

- Robot Y-Stroke (Demoulding Stroke): 400 mm

- Robot Z-Stroke (Vertical Stroke): 1000 mm

- Additional / Peripheral Equipment:

- Material Hopper Loader / Conveyor: KOCH TECHNIK

- Temperature Control Unit: HB-THERM Thermo-5

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
