➤ Used SHIBAURA EC230SXIII-8A For Sale | gindumac.com

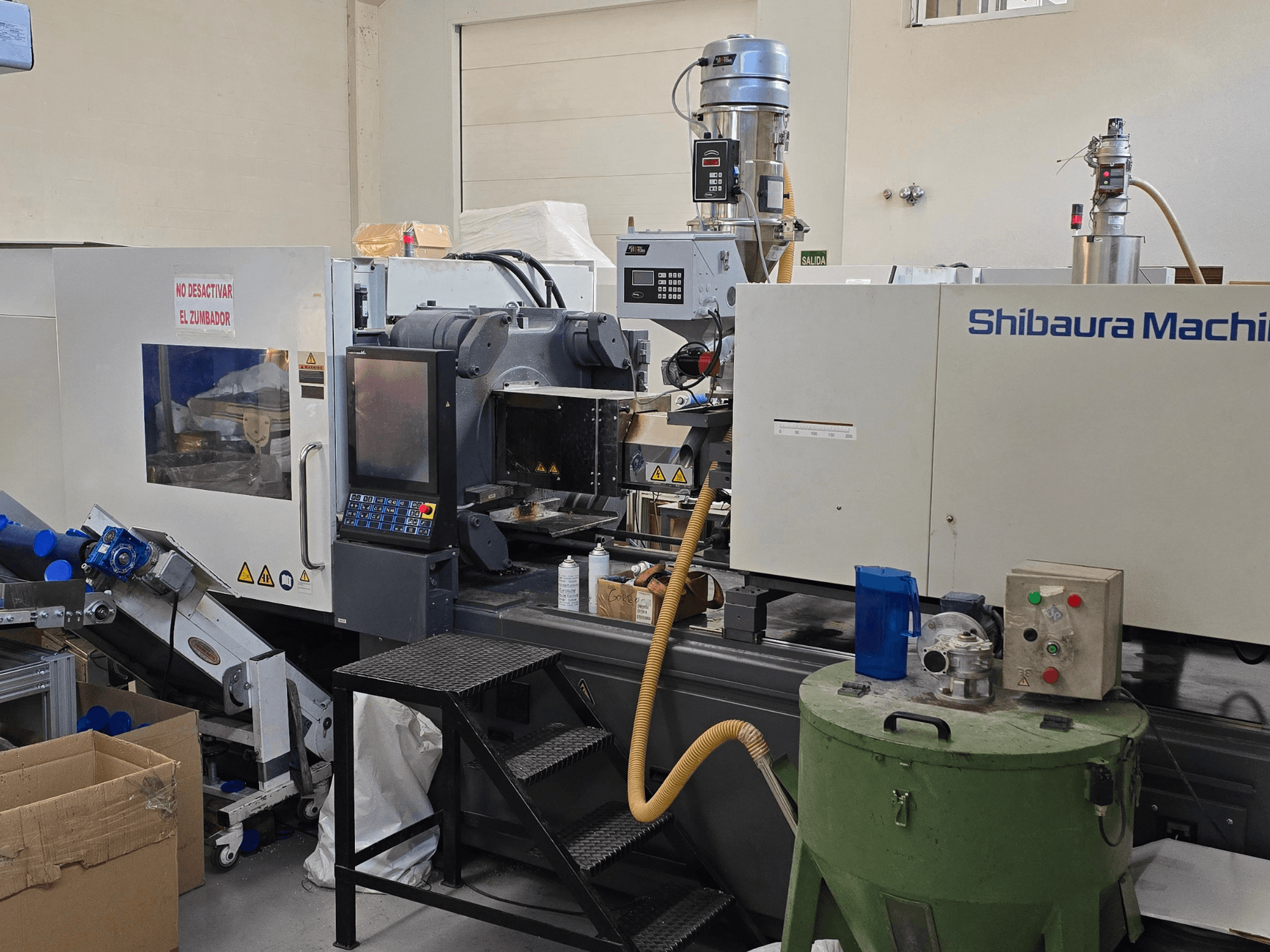

This 3-axis SHIBAURA EC230SXIII-8A was manufactured in 2020. It features a clamping force of 2250 kN and a mold opening stroke of 550 mm. The machine has a maximum distance between platens of 1230 mm and a screw diameter of 45 / 50 / 55 mm. If you are looking to get high-quality injection molding capabilities, consider the SHIBAURA EC230SXIII-8A electrical injection moulding machine we have for sale. Contact us for further details.

Overview

brand: SHIBAURA
year: 2020
MODEL: EC230SXIII-8A
production hours: 20000
application type: Injection Moulding
Location: Spain
machine type: Electrical Injection Moulding Machine

Technical Information - SHIBAURA EC230SXIII-8A

Dimensions

Machine Height: 2000 mm
Machine Length: 6400 mm
Machine Weight: 9900 kg
Machine Width: 1700 mm

Technical Specification

Clamping Force: 2250 kN
Screw Diameter: 55 mm

Additional Information

Distance between tie bars (H x V): 610 x 560 mm
Platen dimensions (H x V): 880 x 830 mm
Mold opening stroke: 550 mm
Max. distance between platens: 1230 mm
Mold height (min–max): 250–680 mm
Ejection force: 49 kN (5.0 tf)
Ejection stroke: 130 mm
Injection unit code: 18
Screw diameter: 45 / 50 / 55 mm
Max. injection capacity: 318 / 392 / 475 cm³
Injection weight (PS): 292 / 361 / 437 g
Injection weight (PE): 232 / 286 / 346 g
Max. injection pressure: 247 / 200 / 165 MPa
Max. holding pressure: 247 / 200 / 165 MPa
Nozzle support force: 29.4 kN (3.0 tf)
Main breaker capacity (STD/High Torque): 125 A
Main breaker capacity (High Speed): 175 A
Transformer (STD): 75 kVA
Heating power: 15.2 / 16 kW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
