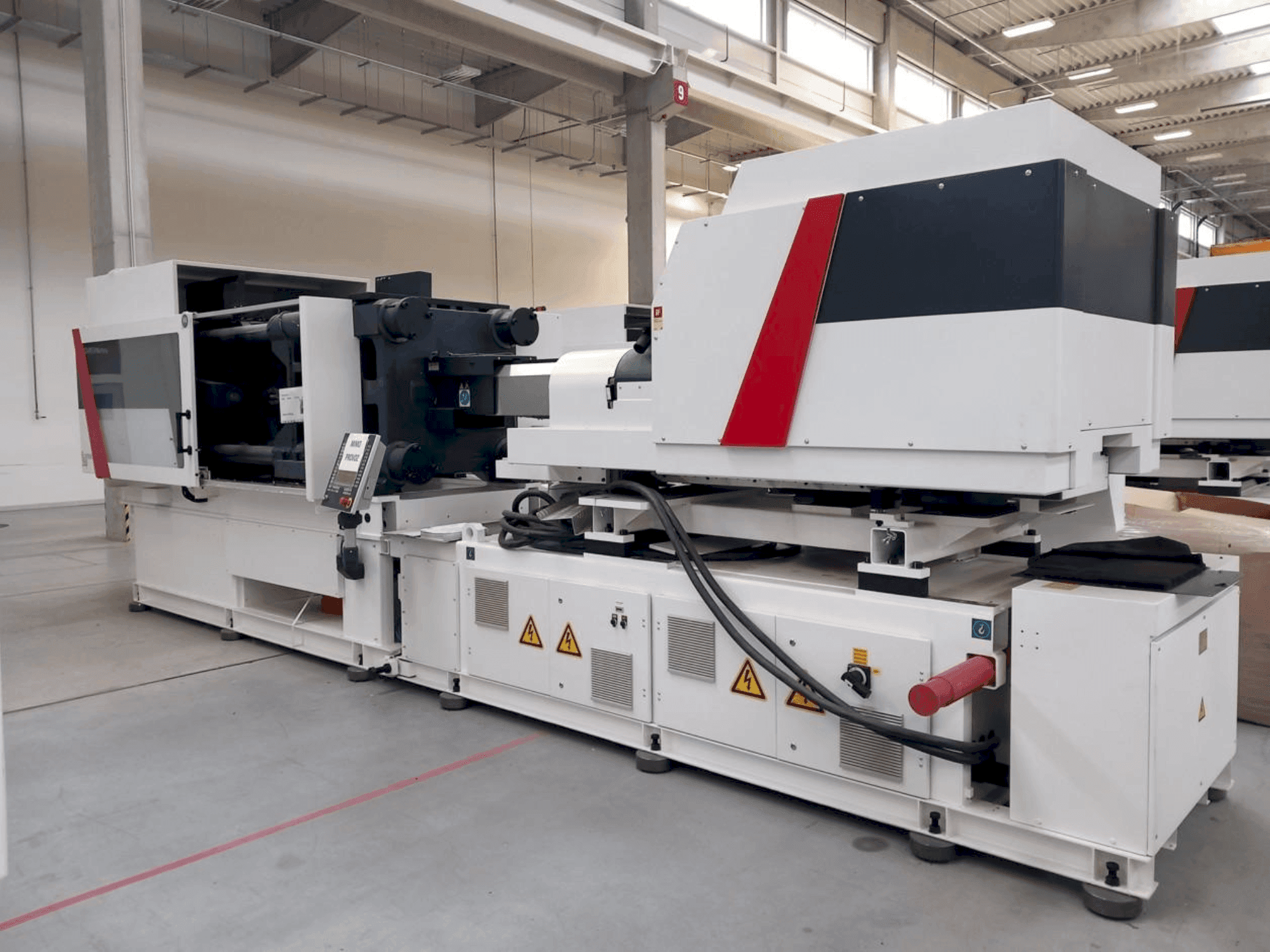

Milacron - Elektron Evo 350CZ-INJ-MIL-2017-00004

Machine Benefits

Qualitative Machine Benefits

• The machine is like new.

Technical Machine Benefits

• Injection unit size: 2290

• - Max. Injection Pressure: 1421 bar

  - Max. Stroke Volume: 1232 cm3

  - Max. Shot Weight (PS): 1172 g

  - Screw Stroke: 320 mm

  - Carriage Stroke: 400 mm

  - Nozzle Contact Force: 30 kN

  - Injection Rate: 580 cm3/s

  - Injection Speed: 150 mm/s

  - Screw Speed: 250 ot/min (RPM)

  - Plasticizing Rate (GPPS): 77 g/s

  - Effective Screw Length (L/D): 22.9

• - Number of Heating Zones: 4+1

  - Installed Heating Power: 39.6 kW

• Clamping Force: 3500 kN:

  - Distance Between Tie Bars (H x V): 720 x 720 mm

  - Platen Dimensions (H x V): 1030 x 1030 mm

  - Mold Opening Stroke: 675 mm

  - Max. Daylight: 1475 mm

  - Min. Mold Mounting Height: 250 mm

  - Max. Mold Mounting Height: 800 mm

  - Max. Mold Weight (Moving / Stationary): 2630 / 1320 kg

  - Max. Total Mold Weight: 3950 kg

  - Ejector Force: 75 kN

  - Ejector Stroke: 200 mm

Extra Information

Machine still under power
