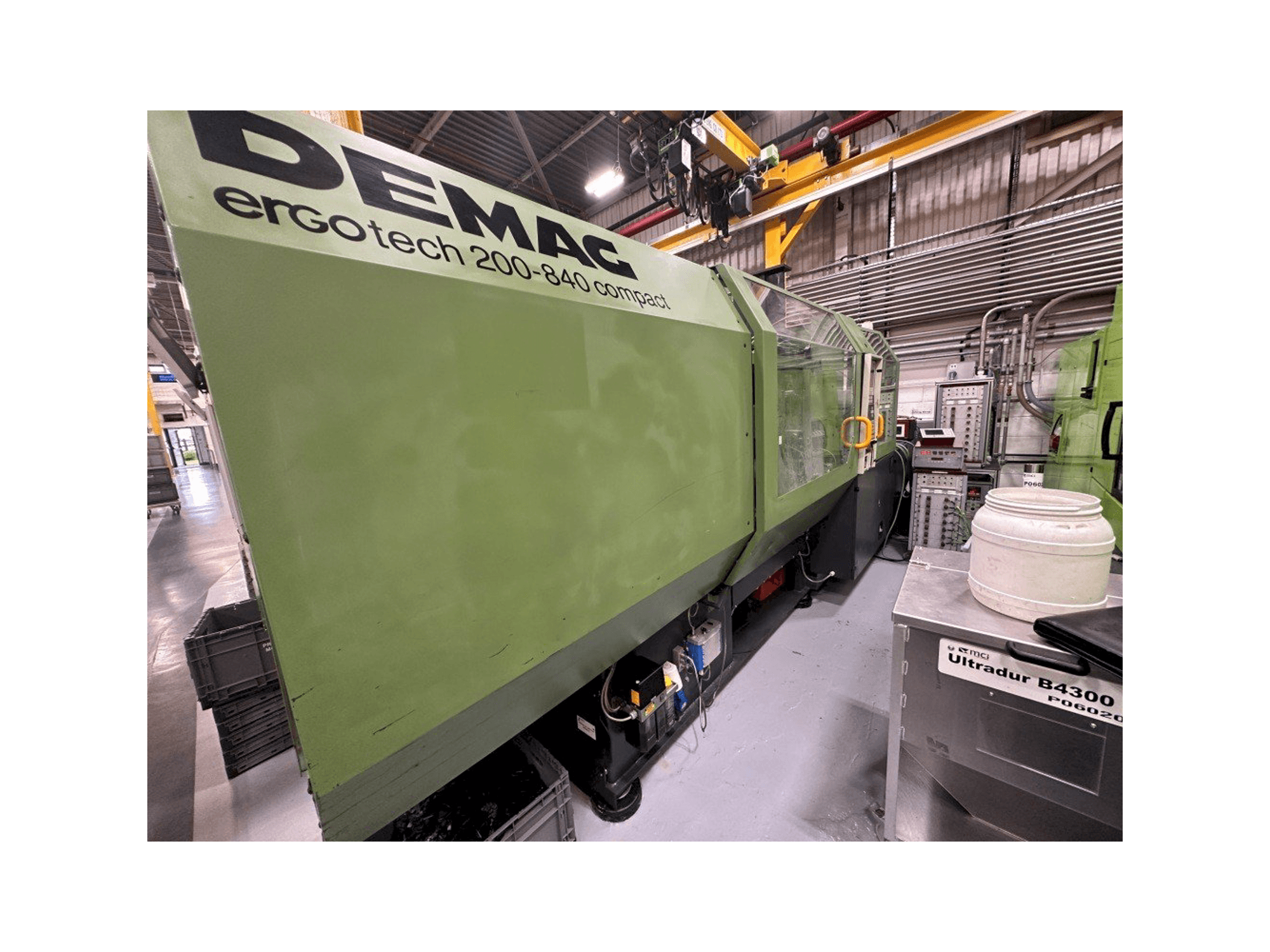

Left side view of DEMAG Ergotech 200-840 Compact  machine

SUMITOMO SHI DEMAG Ergotech 200-840 Compact

SUMITOMO SHI DEMAG - Ergotech 200-840 Compact

1997

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This DEMAG Ergotech 200-840 Compact Injection Moulding Machine was made in 1997 in Germany and has 123000 hours. It is equipped with a Demag NC4 control unit. The machine has a clamping force of 2000 kN, a screw diameter of 45 mm and it is in very good condition.

Overview

  • brand: SUMITOMO SHI DEMAG
  • year: 1997
  • MODEL: Ergotech 200-840 Compact
  • production hours: 123000
  • application type: Injection Moulding
  • Location: Ireland
  • machine type: Injection Moulding Machines
  • availability: Sold
  • control unit brand: Demag
  • GINDUMAC ID: IE-INJ-DEM-1997-00001

Technical Information

General Data

  • Measurements width: 5700 mm
  • Measurements depth: 1700 mm
  • Measurements height: 2100 mm
  • Machine weight: 10000 kg

Control Unit

  • Brand: Demag
  • Model: NC4
  • CNC main language: English
  • CNC language customizable: Yes

Injection Unit

  • Screw diameter: 45 mm
  • Shot weight: 326 g/ps
  • Stroke volume: 358 CM³
  • Injection pressure: 2400 bar

Clamping unit

  • Clamping force: 2000 kn
  • Opening stroke: 575 mm
  • Max open daylight: 1235 mm
  • Distance between bars: 560 mm
  • Mould height min: 310 mm
  • Size of mold platens: 830 mm
  • Ejector stroke: 180 mm
  • Ejector force for / back: 69 kn

Media

  • Main electronic connection: 400 V

    Additional Equipment

    • - Conveyor

    Additional Information

      Machine history

      • Material type: Plastic
      • End product: Automotive parts
      • Industries: Automotive industry

      Machine Benefits

      • Technical Machine Benefits:
        • - 200t machine
      • Qualitative Machine Benefits:
        • - Very good condition
        • - Well maintained

      Extra information

      • - Hopper and Kistler Unit in photos not included in sale

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
