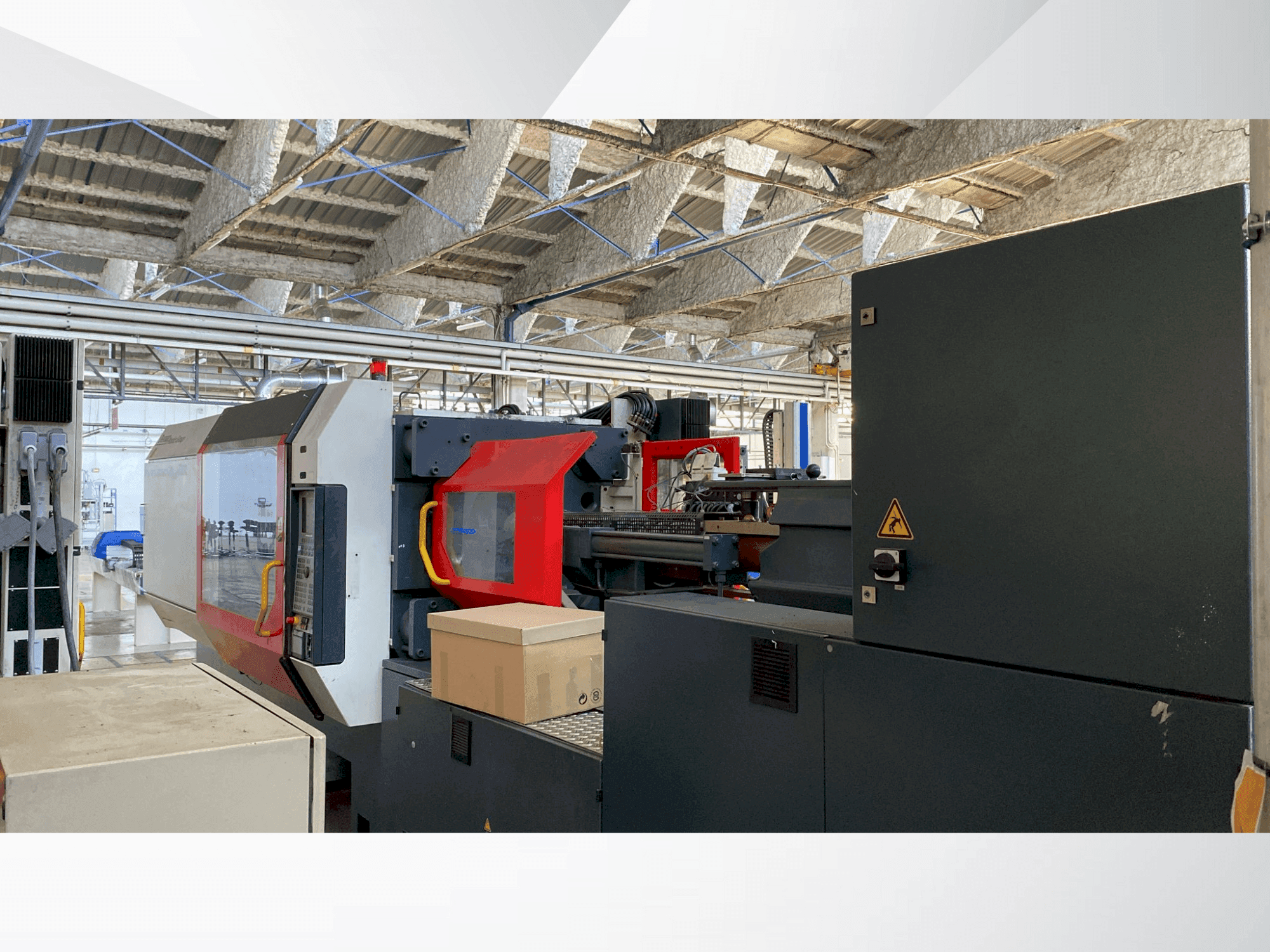

➤ Used DEMAG Ergotech System 420-1450 | Injection Moulding

This DEMAG Ergotech System 420-1450 was manufactured in 2004. It is a hydraulic injection moulding machine, ideal for precision plastic processing. Consider the opportunity to buy this DEMAG Ergotech System 420-1450 hydraulic injection moulding machine. Contact us for more information.

Overview

brand: DEMAG
year: 2004
MODEL: Ergotech System 420-1450
application type: Injection Moulding
Location: France
machine type: Hydraulic Injection Moulding Machine
availability: Immediately

Technical Information - DEMAG Ergotech System 420-1450

Injection Unit

Screw diameter: 80 mm
Shot weight: 1212 cm³
Stroke volume: 1212 cm³
Injection pressure: 1877 bars

Clamping unit

Clamping force: 420 kN
Ejector stroke: 230 mm

Additional Equipment

- SEPRO Robot Included

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Horizontal tie bar spacing: 800 mm
- - Vertical tie bar spacing: 710 mm
- - Maximum platen opening: 1530 mm
- - Mold size: 380 - 910 mm
- - Ejection rod length: 330 mm
- - Fixed centering plate diameter: 160 mm
- - Movable centering plate diameter: 200 mm
- - Movable centering plate diameter: 200 mm
- - Movable centering plate diameter: 200 mm
Qualitative Machine Benefits:
- - Movable centering plate diameter: 200 mm
- - Movable centering plate diameter: 200 mm
- - Robot power: 3 kva
- - Maximum mold weight: 5100 kg
- - Maximum mold weight: 5100 kg
- - Oil reservoir volume: 760 liters

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
