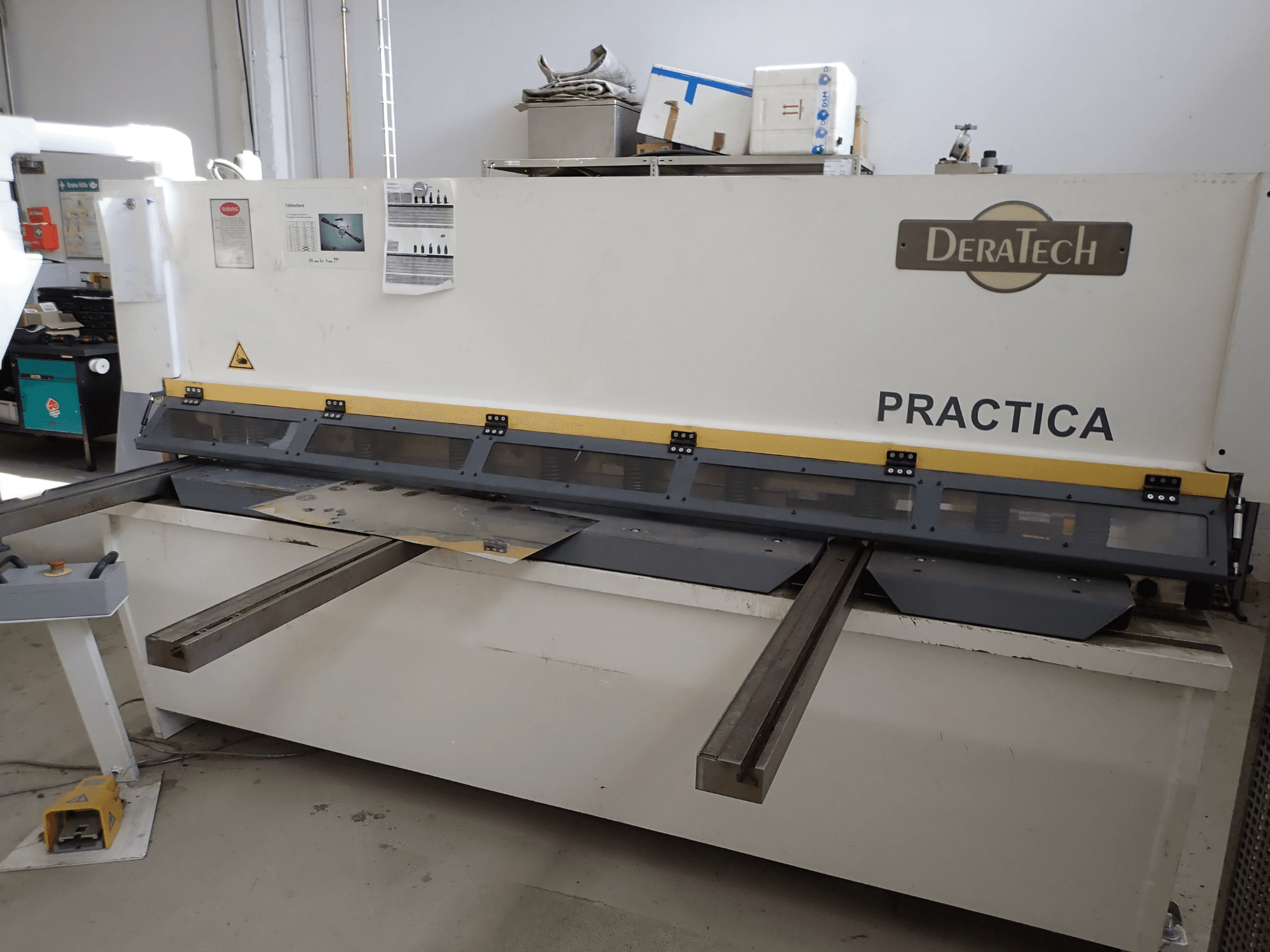

DERATECH Practica CNC shearing machine, front view, showing cutting blade and metal sheets on the work surface.
DERATECH Practica CNC shearing machine, front view, showing cutting blade and metal sheets on the work surface.

DERATECH - Practica CNCDE-SHE-DER-2014-00001

15,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

CNC shearing machine manufactured in 2014. This DERATECH Practica CNC features a maximum cutting length of 2500 mm and can handle a maximum sheet thickness of 6 mm. Weighing 6100 kg, this machine is designed for durability and efficiency. If you are looking to get high-quality shearing capabilities, consider the DERATECH Practica CNC machine we have for sale. Contact us for further details.

Overview

  • brand: DERATECH
  • year: 2014
  • MODEL: Practica CNC
  • application type: Shearing
  • Location: Germany
  • machine type: CNC Shearing Machine
  • Available from: 30/06/2026

Technical Information - DERATECH Practica CNC

Dimensions

  • Machine Weight: 6100 kg

Technical Specification

  • Max. Cutting Length: 2500 mm

Additional Information

  • Voltage: 3 × 400 V

  • Power: 7.5 kW

  • Frequency: 50 Hz

  • Maximum sheet thickness: 6 mm

  • CE marking: CE

  • Control system: CybTouch Shear control

  • Control type: Touchscreen HMI

  • Programming capability: Up to 24 sequences per program

  • Unit system: Metric (mm) and Inch selectable

  • Material database: Available (steel, stainless steel, aluminum)

  • Material thickness range (example table): approx. 1.0 – 6.0 mm

  • Cutting gap adjustment: Automatic / programmable

  • Backgauge control: Yes

  • Cutting angle adjustment: Available (machine dependent)

  • AutoCut function: Available

  • Sequence repeat function: Available

  • Sheet support system: Available (2 or 3 positions depending on configuration)

  • Return-to-sender function: Available (sheet return system)

  • Manual blade positioning: Available

  • Pump motor control: Integrated

  • User settings: Language, units, calibration options

  • Service menu: Available (code protected)

  • Diagnostic information: Hardware, boot version, HF connection, MMS interface

  • Machine status display: Digital and analog I/O monitoring

  • Power supply (I/O board): 24 V

  • Error diagnostics: Integrated error code system

  • Backup function: Internal parameter backup

  • Program storage: Yes

  • Touchscreen operation: Yes

  • Foot pedal operation: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
