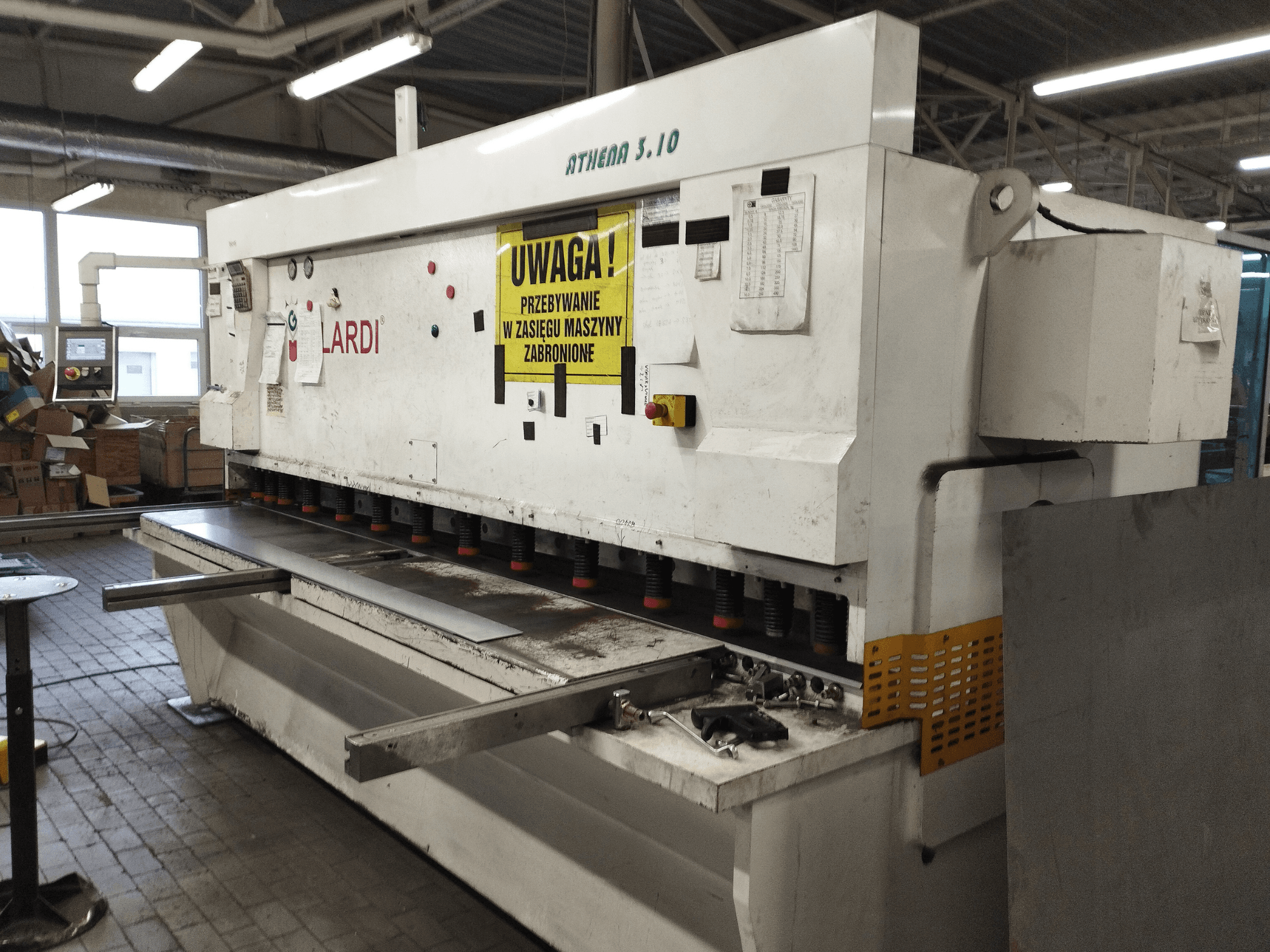

CNC shearing machine manufactured in 2019. This GILARDI ATHENA 3.10 features a working length of 3,100 mm and a cutting capacity of 10 mm at 42 kg/mm². It includes a CYBELEC CybTouch 6 CNC control, automatic blade gap adjustment, and a robust steel frame. If you are looking to get high-quality shearing capabilities, consider the GILARDI ATHENA 3.10 machine we have for sale. Contact us for further details.
Overview
- brand: GILARDI
- year: 2019
- MODEL: ATHENA 3.10
- application type: Shearing
- Location: Poland
- machine type: CNC Shearing Machine
- control unit brand: CYBELEC
Technical Information - GILARDI ATHENA 3.10
Control Unit
- Control Brand: CYBELEC
- Control Model: CybTouch 6
Dimensions
- Machine Height: 2060 mm
- Machine Length: 4000 mm
- Machine Weight: 11600 kg
- Machine Width: 2080 mm
Technical Specification
- Max. Cutting Length: 3100 mm
Additional Information
Cutting capacity:
10 mm at 42 kg/mm²
6 mm at 70 kg/mm²
Adjustable cutting angle: 0.5°–2.5°
Cutting rate: 6–14 strokes/min
Back gauge travel: 1,000 mm
Number of hold-downs: 14
Main motor power: 11 kW
Throat depth: 175 mm
Control: CYBELEC CybTouch 6 CNC with color display
Features:
Automatic blade gap adjustment
Automatic blade stroke adjustment
Adjustable blade cutting angle
Hardened 4-edge cutting blades (54–60 HRC), divided into 835 mm sections
Front sheet supports
Operator hand protection guards
Sheet hold-down system
Rigid welded ST44A1 steel frame
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
