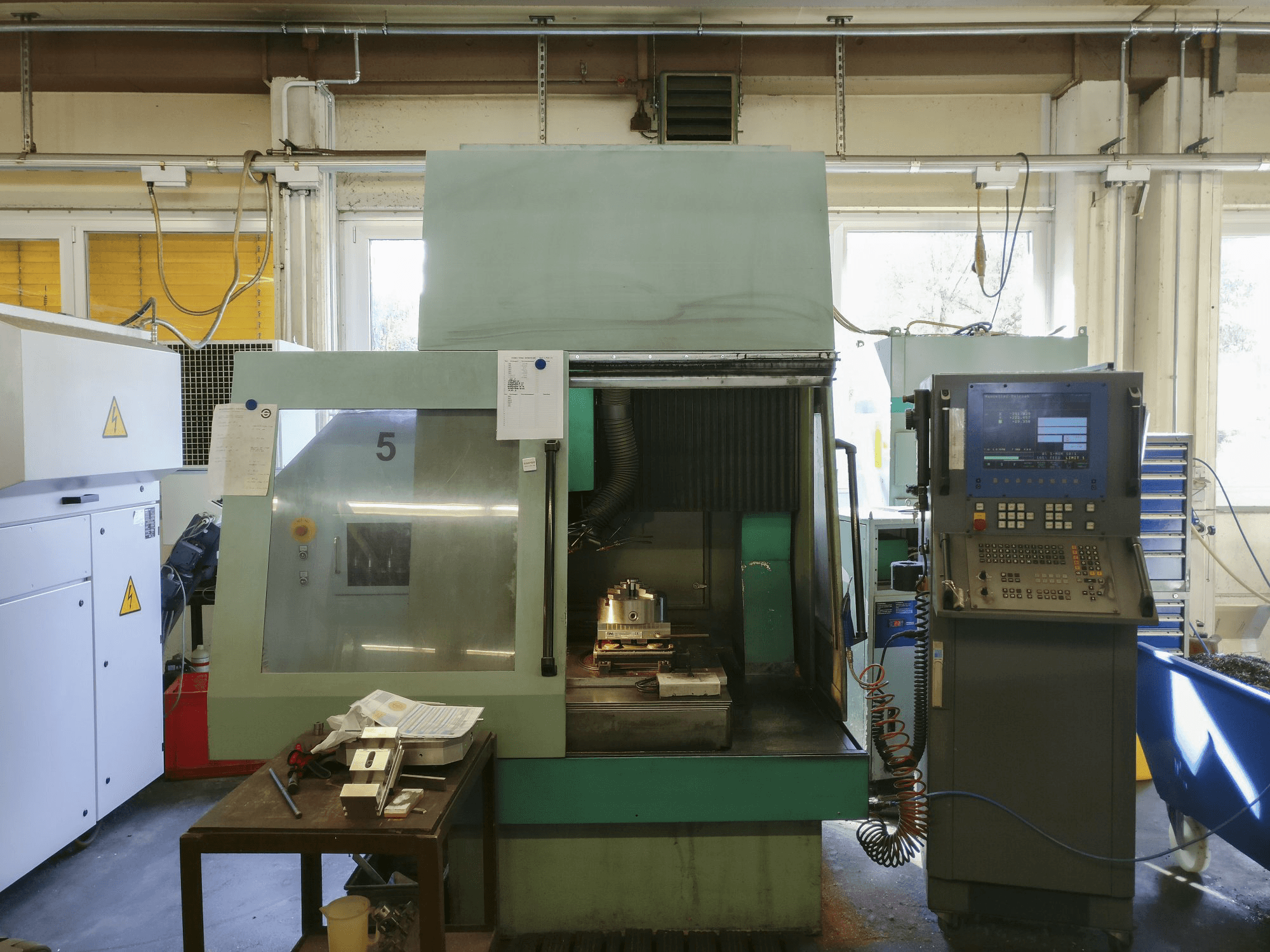

DIGMA 700 GC
DIGMA - 700 GC
1996
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- This DIGMA 700 GC Machining Center
This DIGMA 700 GC Machining Center from 1996 has a record of 84855 production hours. Operated through a HEIDENHAIN TNC 426PB Control unit with remote control, this machine includes holders, clutches and a bore as extra equipment. In the past, this 700 GC has handled copper and graphite as main materials, producing moulds and dies along with containers for the Automotive and Medicine Tech industries. As advantages, the model stands out for its spindle speed of up to 30000 1/min and its milling accuracy (up to 10µ). An additional feature is its low maintenance requirements.
Overview
- brand: DIGMA
- year: 1996
- MODEL: 700 GC
- production hours: 84855
- application type: Milling
- Location: Germany
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: HEIDENHAIN
- GINDUMAC ID: DE-MIL-DIG-1996-00001
Technical Information
General Data
- Measurements width: 2150 mm
- Measurements depth: 1520 mm
- Measurements height: 2250 mm
- Machine weight: 4000 kg
Control Unit
- Brand: HEIDENHAIN
- Model: TNC 426PB
- Release: 28077215
- Remote control: Yes
Main drive
- Number of spindles: 1
- Spindle speed range: 30000 1/min
- Spindle motor power: 7 kW
Movement
- X-AXIS Movement: 700 mm
- X-AXIS Working Feed: 20000 mm/min
- Y-AXIS Movement: 500 mm
- Y-AXIS Working Feed: 20000 mm/min
- Z-AXIS Movement: 400 mm
- Z-AXIS Working Feed: 20000 mm/min
Workpiece
- Workpiece x: 600 mm
- Workpiece y: 450 mm
- Workpiece z: 100 mm
- Workpiece weight: 500 kg
Tools
- Slots in storage: 16
Media
- Main electronic connection: 400 V / 50 Hz
- Air pressure: 7 bar
Additional Equipment
- - Holders
- - Clutches
- - Bore
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
