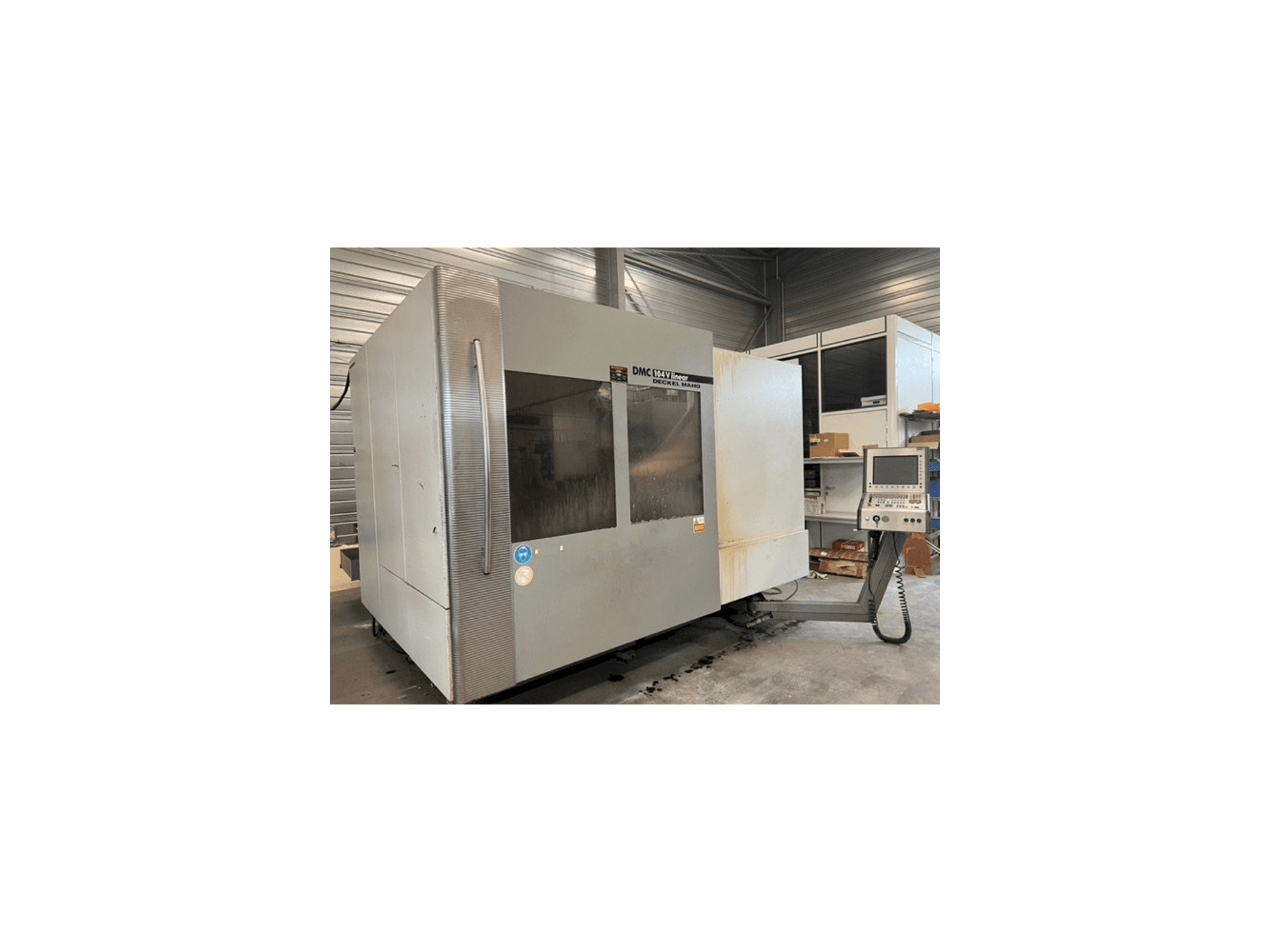

Front view of DMG Deckel Maho 104 V linear machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DECKEL MAHO 104 V linear

DECKEL MAHO - 104 V linearFR-MIL-DMG-2003-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

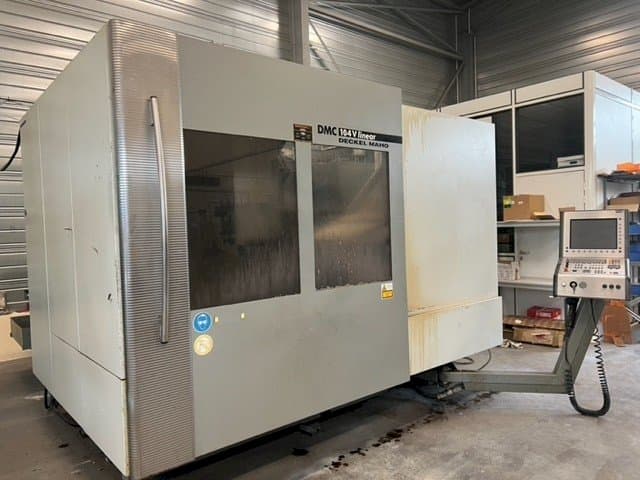

DMG Deckel Maho 104 V linear Vertical Machine Center

This Deckel Maho 104 V linear Vertical Machine Center was produced in the year 2003 in Germany. It counts with a Heidenhain iTNC 530 control unit. This 3 axis machine can work with a spindle speed up to 12000 rpm. Includes RENISHAW system and its probe.

Overview

brand: DECKEL MAHO
year: 2003
MODEL: 104 V linear
application type: Milling
Location: France
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO 104 V linear

General Data

Machine weight: 8900 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 13/19 kw at 100% nominal / 19 kw at 40%
Number of axis: 3

Movement

X-AXIS Movement: 1040 mm
Y-AXIS Movement: 600mm
Z-AXIS Movement: 500 mm

Table

Outer length: 1250 mm
Outer width: 600 mm

Tools

Number of index: 30 positions
Type of tool holder: SK 40

Media

Chip conveyor: Yes

Additional Equipment

- RENISHAW system and its probe
- Paper filtration sprinkler system

Additional Information

Machine Benefits

Technical Machine Benefits:
- - X-axis drive by linear motor
- - Spindle torque: 70 / 100 nm
- - Important set of tool holders (about 75 pieces) and tools
- - 2 sagop vices 300 mm
Qualitative Machine Benefits:
- - Full documentation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
