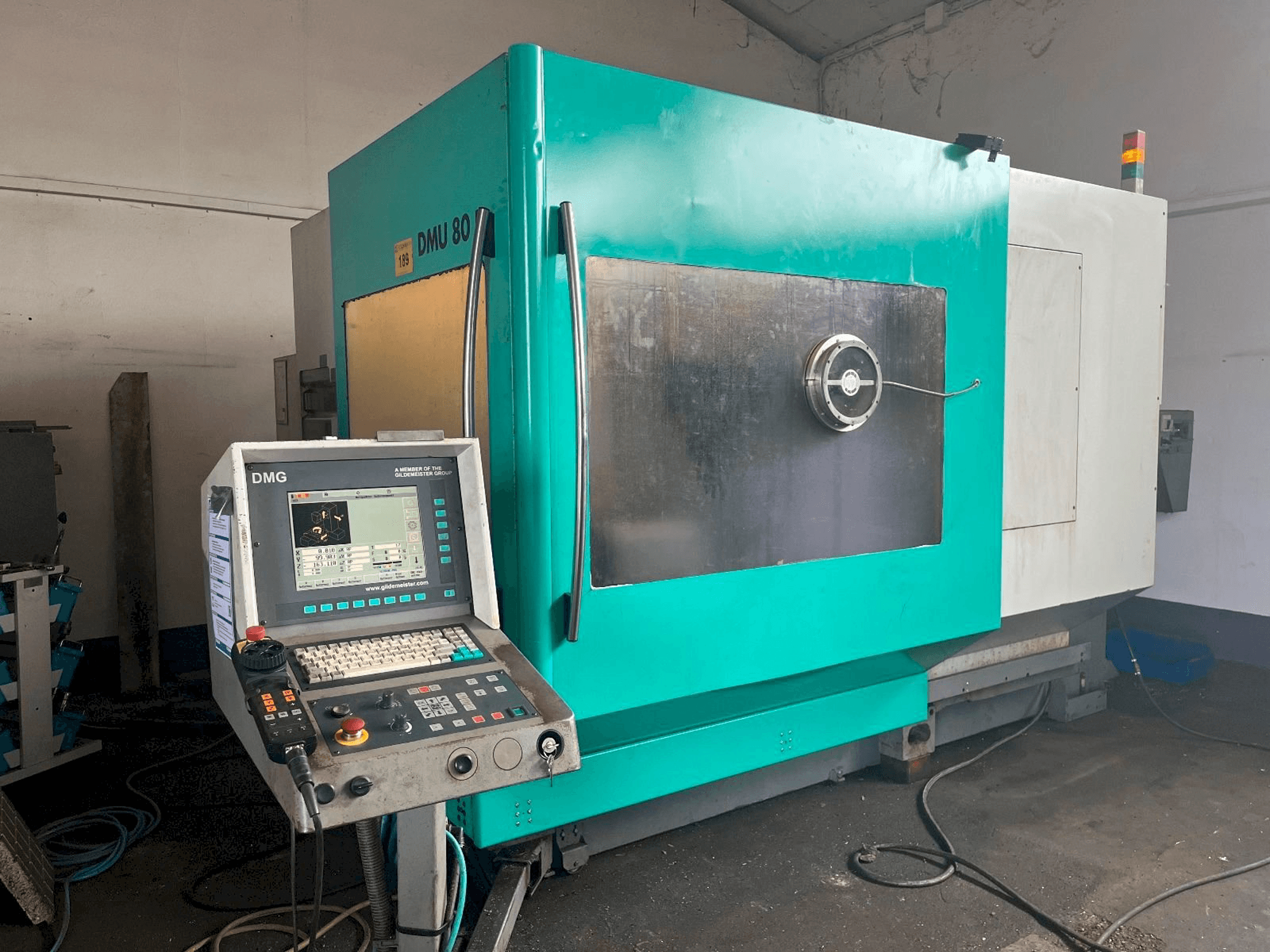

Front view of DMG Deckel Maho DMU 80 P  machine

DMG Deckel Maho DMU 80 P

DMG - Deckel Maho DMU 80 P

1999

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This DMG Deckel Maho DMU 80 P Vertical Machining Center was manufactured in the year 1999 and has 17530 spindle hours. It is equipped with a DMG MILL PLUS control unit and has 5 axis. The machine has a spindle speed of 18000 rpm.

Overview

  • brand: DMG
  • year: 1999
  • MODEL: Deckel Maho DMU 80 P
  • production hours: 34477
  • application type: Milling
  • Location: Germany
  • machine type: Machining centers (vertical)
  • availability: Sold
  • control unit brand: DMG
  • GINDUMAC ID: DE-MIL-DMG-1999-00001

Technical Information

General Data

  • Measurements width: 4500 mm
  • Measurements depth: 3300 mm
  • Measurements height: 2600 mm
  • Machine weight: 9500 kg

Control Unit

  • Brand: DMG
  • Model: MILL PLUS

Main drive

  • Spindle speed range: 18000 1/MIN
  • Number of axis: 5

Movement

  • X-AXIS Movement: 800 MM
  • Y-AXIS Movement: 700 MM
  • Z-AXIS Movement: 600 MM

Tools

  • Slots in storage: 40
  • Type of tool holder: SK-40

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Tool magazin capacity of 60 slots
      • - Tapper size = sk40
      • - Total connection: 45 kva
      • - Feed range x-, y- and z-axis: 20 - 10000 mm/min
      • - C-axis: 1 - 3600 degrees/min
      • - Incl. C-axis
      • - A-axis: 1-2600 degrees/min
      • - Measuring system: resolution in x-, y- and z-axis: 0. 001 mm
      • - Incl. Nc swivel rotary table (a+c axis)
      • - Diameter: 630 mm
    • Qualitative Machine Benefits:
      • - Distance between t-slots: 63 mm
      • - Workpiece weight: up to max. 7500 kg
      • - Tool diameter: 100 mm
      • - Max. Tool weight: 10 kg
      • - Max. Tool weight in the magazine: approx. 200 kg
      • - The machine is equipped with a chip conveyor, an automatic belt automatic belt filter and a hydraulic unit
      • - Incl. Traverse for crane unloading
      • - The machine is under power and can be inspected
      • - Hydraulic vice
      • - Hydraulic clamp for rotary table sk 50

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
