- DMG DMU 70 V Milling Machine

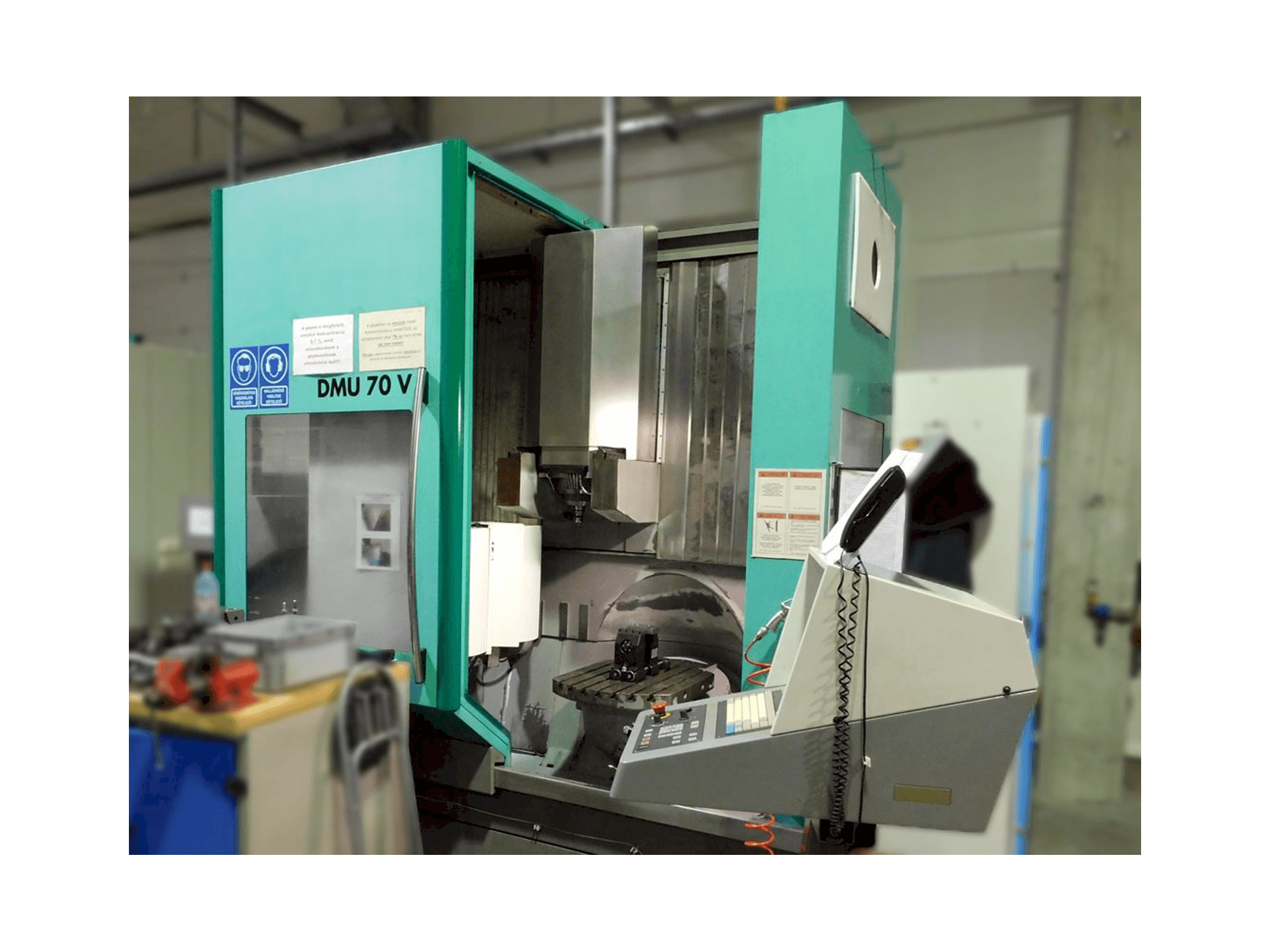

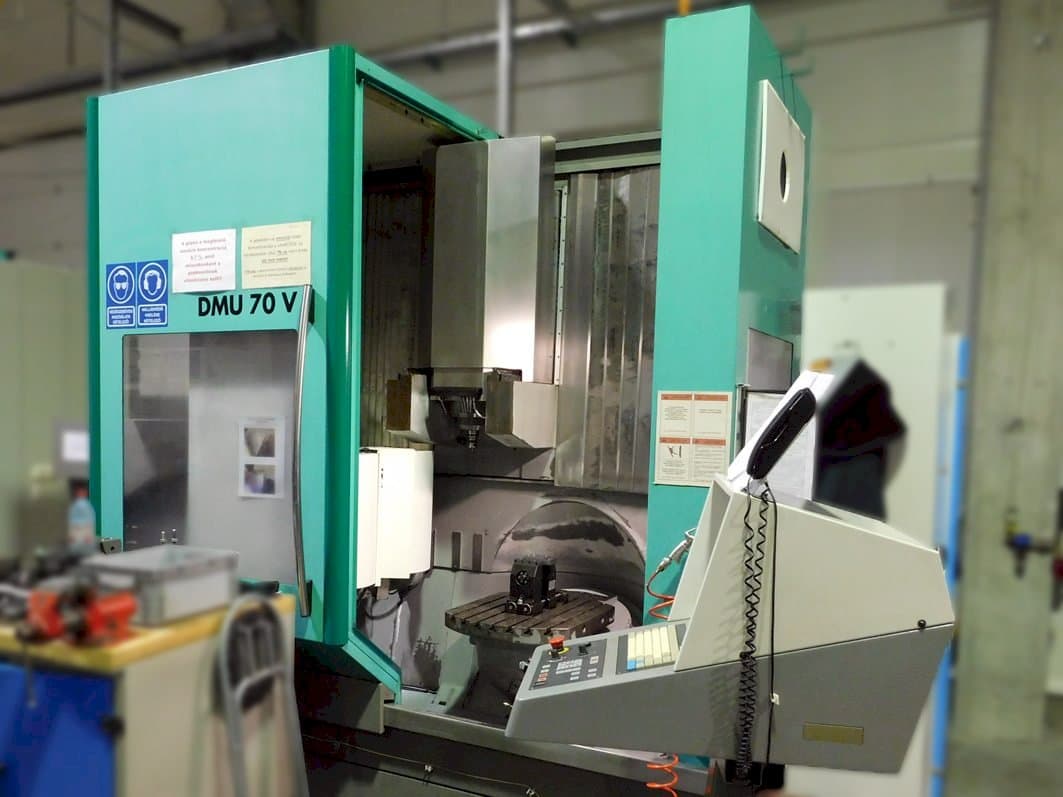

This DMG DMU 70 V Milling Machine was built in Germany in the year 2000. It has been on for 83340 hours, of which 21810 are spindle power hours. It is equipped with a Heidenhain MillPlus control unit. This 5 axis machine can work with a spindle speed up to 30000 rpm. It includes chip conveyor, coolant system, hand wheel for all axes, and spindle cooler.
Overview
- brand: DMG
- year: 2000
- MODEL: DMU 70 V
- production hours: 83340
- application type: Milling
- Location: Hungary
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: Heidenhain
Technical Information - DMG DMU 70 V
General Data
- Measurements width: 2750 mm
- Measurements depth: 2020 mm
- Measurements height: 2730 mm
- Machine weight: 5500 kg
Control Unit
- Brand: Heidenhain
- Model: Millplus
Main drive
- Spindle speed range: 30000 1/MIN
- Spindle motor power: 20 kW
- Tool taper: HSK-E50
- Number of axis: 5
Movement
- X-AXIS Movement: 710 mm
- X-AXIS Rapid traverse: 30 m/min
- Y-AXIS Movement: 520 mm
- Y-AXIS Rapid traverse: 30 m/min
- Z-AXIS Movement: 520 mm
- Z-AXIS Rapid traverse: 30 m/min
Table
- Outer length: 1000 mm
- Outer width: 600 mm
- Height adjustment: 520 mm
- Distance between: 63 mm
- Table load: 350 kg
Media
- Power consumption: 32 kVA
Additional Information
- Technical Machine Benefits:
- - 5 axis machine with b-c axes
- - Nc rotary table
- - B – axis rotation 0-180 °
- - C - axis rotaion 0-360 °
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
