HAAS - VF 2 SSSI-MIL-HAA-2020-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used HAAS VF 2 SS For sale | gindumac.com

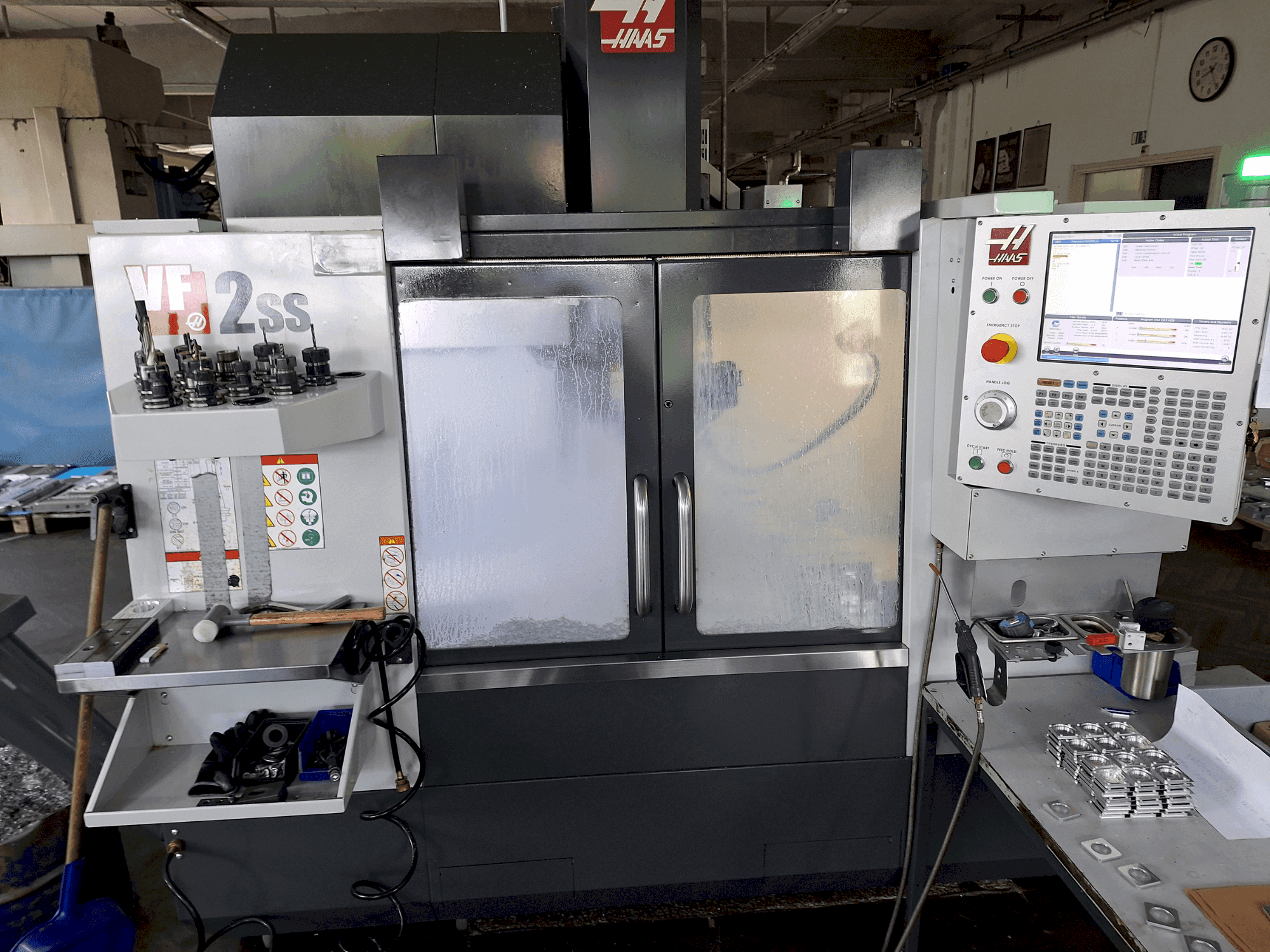

This 3-axis HAAS VF 2 SS milling machine was manufactured in 2020. It features a robust inline direct-drive system, a spindle speed of up to 12000 rpm, and a spindle power of 22.4 kW. The machine accommodates a table load of 680 kg and offers rapid movements on X, Y, and Z axes at 35.6 m/min, enhancing productivity. Ideal for precision milling, the HAAS VF 2 SS machine we have for sale. Contact us for further details.
Overview
- brand: HAAS
- year: 2020
- MODEL: VF 2 SS
- application type: Milling
- Location: Slovenia
- machine type: Vertical Machining Centre
- availability: Immediately
Technical Information - HAAS VF 2 SS
General Data
- Measurements width: 2510 mm
- Measurements depth: 2570 mm
- Measurements height: 2570 mm
- Machine weight: 3539 kg
Main drive
- Number of spindles: 1
- Spindle speed range: 12000 rpm 1/MIN
- Spindle motor power: 22.4 kW
- Tool taper: CT40, BT40, HSK-A63
- Working current: Full Load Amps (3 Phase) - Low: 70 A; High: 35 A
- Number of axis: 3
Movement
- X-AXIS Movement: 762 mm
- Y-AXIS Movement: 406 mm
- Z-AXIS Movement: 508 mm
Workpiece
- Workpiece weight: 680 kg
Table
- Outer length: 914 mm
- Outer width: 356 mm
- TSlots size: 15.90 mm to 16.00 mm
- Number of tslots: 3
- Distance between: 125 mm
Additional Equipment
- - Tool Changer: Type: SMTC, Capacity: 30+1, Max Tool Diameter (full): 64 mm, Max Tool Length (from gage line): 279 mm, Max Tool Weight: 5.4 kg
- - Coolant Capacity: 208 L
Additional Information
- Technical Machine Benefits:
- - Height adjustment: spindle nose to table (max): 610 mm; (min): 102 mm
- - Air requirements: air required: 113 l/min @ 6. 9 bar, air pressure min: 5. 5 bar
- - Electrical specification: input ac voltage (3 phase) - low: 220 vac; high: 440 vac
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
