- ➤ Used HAAS VF-3SS Vertical Centre For sale | gindumac.com

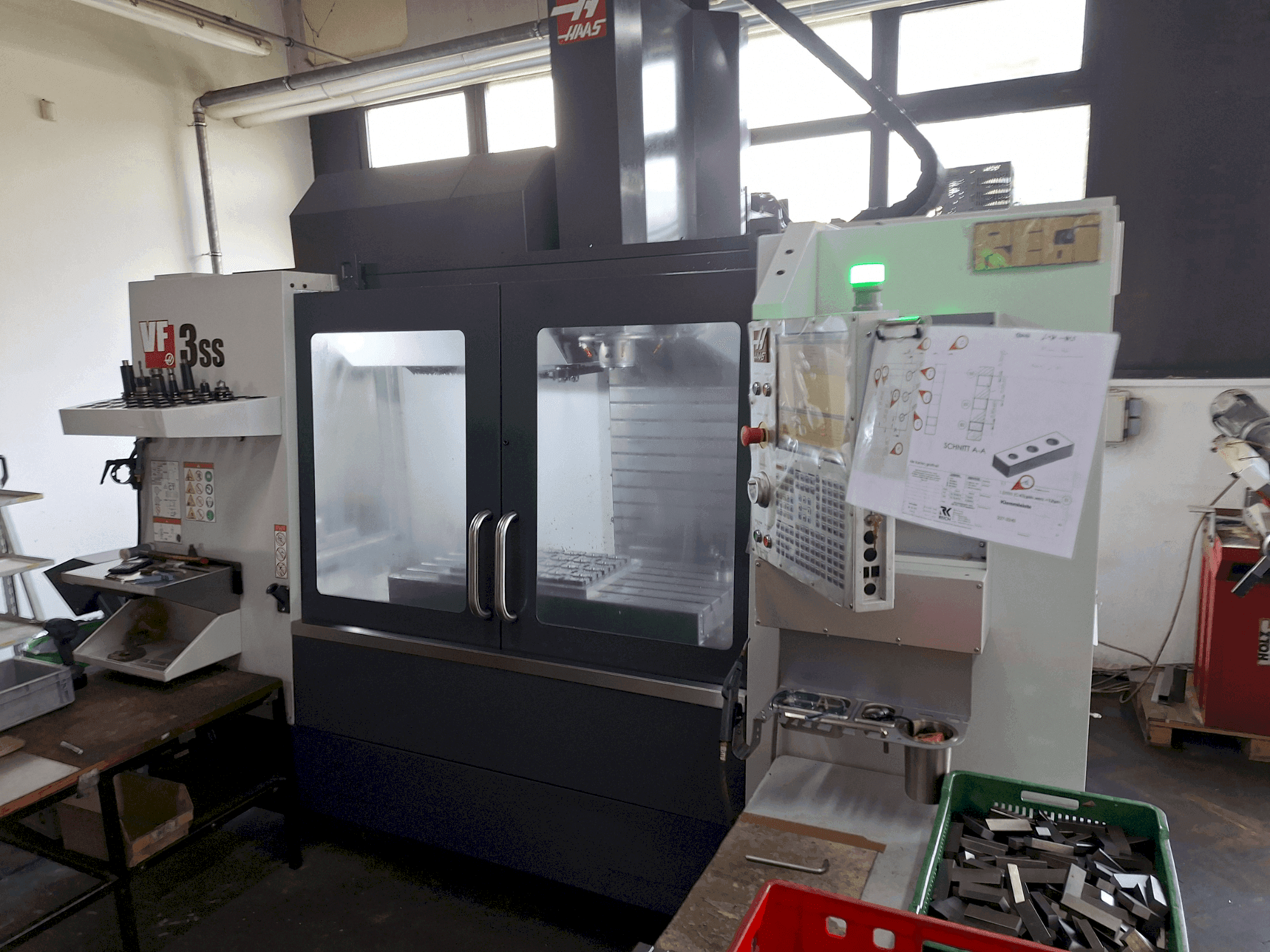

This 3-axis HAAS VF-3SS Machining Centre was manufactured in 2021. It features a robust 1219 mm x 457 mm table, capable of handling up to 794 kg. Equipped with a high-speed 12000 rpm spindle, it delivers 22.4 kW of power and 122.0 Nm torque. The machine offers rapid movements up to 35.6 m/min on all axes and includes a 30+1 side-mount tool changer for efficient operation. Ideal for precision machining, buy this HAAS VF-3SS Machining Centre. Contact us for further details.
Overview
- brand: HAAS
- year: 2021
- MODEL: VF-3SS
- application type: Milling
- Location: Slovenia
- machine type: Machining centers (vertical)
- availability: Immediately
Technical Information - HAAS VF-3SS
Main drive
- Spindle speed range: 12000 rpm 1/MIN
- Spindle motor power: 22.4 kW
- Tool taper: SK 40
- Number of axis: 3
Movement
- X-AXIS Movement: 1016 mm
- X-AXIS Rapid traverse: 35.6 m/min
- Y-AXIS Movement: 508 mm
- Y-AXIS Rapid traverse: 35.6 m/min
- Z-AXIS Movement: 635 mm
- Z-AXIS Rapid traverse: 35.6 m/min
Tools
- Number of index: 30+1
Additional Equipment
- - Coolant Capacity: 208 L
- - Air Requirements: 113 L/min @ 6.9 bar, Inline Air Hose: 3/8 in, Coupler (Air): 3/8 in, Air Pressure Min: 5.5 bar
Additional Information
- Technical Machine Benefits:
- - Tapper size: ct40, bt40, hsk-a63
- - Max cutting feedrate: 21. 2 m/min
- - Max thrust (x, y, z): 13723 n, 13723 n, 17450 n
- - Tool-to-tool (avg): 1. 80 s
- - Chip-to-chip (avg): 2. 40 s
- - Table dimensions: length: 1219 mm, width: 457 mm, t-slot width: 15. 90 mm to 16. 00 mm, t-slot center distance: 80 mm, number of std t-slots: 5, max weight on table: 794 kg
- - Electrical specification: input ac voltage (3 phase) - low: 220 vac, full load amps (3 phase) - low: 70 a, input ac voltage (3 phase) - high: 440 vac, full load amps (3 phase) - high: 35 a
- Qualitative Machine Benefits:
- - Bearing lubrication: air / oil injection
- - Cooling: liquid cooled
- - Shipping Dimensions and Weights:Domestic Pallet: 387 cm x 251 cm x 269 cm, 5316.0 kg Export Pallet: 333 cm x 233 cm x 257 cm, 5316.0 kg Domestic Pallet w/Conveyor: 387 cm x 251 cm x 269 cm, 6260 kg Export Pallet w/Conveyor: 389 cm x 233 cm x 257 cm, 6260 kg Domestic Pallet w/50+1 SMTC: 387 cm x 251 cm x 310 cm, 5525 kg Export Pallet w/50+1 SMTC: 333 cm x 233 cm x 257 cm, 5525 kg Domestic Pallet w/Conveyor & 50+1 SMTC: 387 cm x 251 cm x 310 cm, 5752 kg Export Pallet w/Conveyor & 50+1 SMTC: 389 cm x 233 cm x 257 cm, 5752 kg Domestic Pallet w/70+1 SMTC: 386 cm x 252 cm x 342 cm, 6278.0 kg Export Crate w/70+1 SMTC: 386 cm x 258 cm x 359 cm, 6278.0 kg
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
