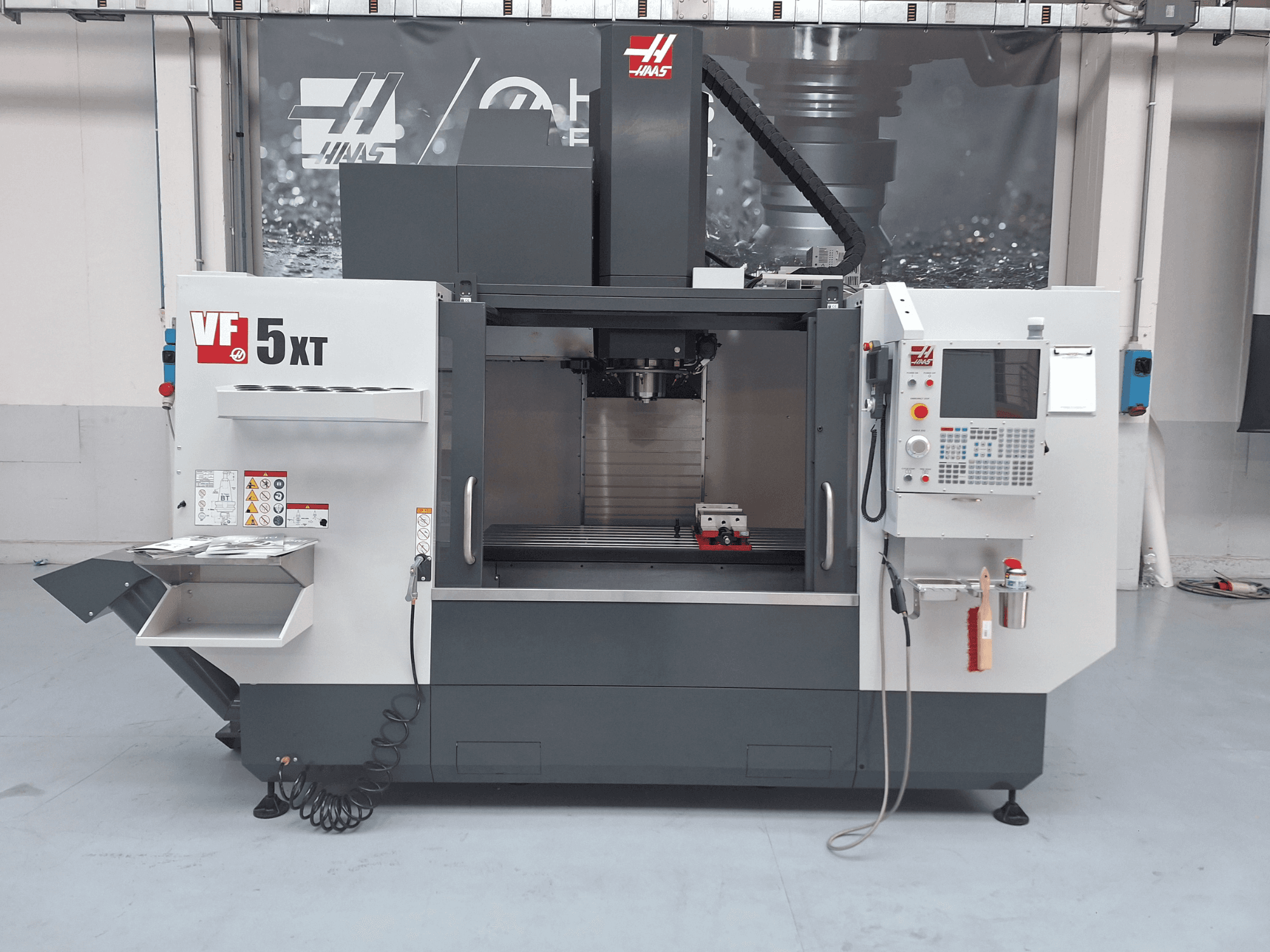

HAAS - VF-5/50XTIT-MIL-HAA-2023-00001

• Working Hours: 0 (Showroom machine)

• Spindle Nose to Table (max): 32.9 in / 836 mm

• Spindle Nose to Table (min): 7.9 in / 201 mm

• Spindle Max Torque: 340.0 ft-lbf @ 700 rpm / 460.0 Nm @ 700 rpm

• Spindle Drive System: 2-Speed Gearbox

• Table Length: 62.0 in / 1575 mm

• Table Width: 23.0 in / 584 mm

• T-Slot Width: 0.626 in to 0.630 in / 15.90 mm to 16.00 mm

• T-Slot Center Distance: 3.15 in / 80 mm

• Number of Std T-Slots: 7

• Max Weight on Table (evenly distributed): 4000 lb / 1814 kg

• Max Cutting Feedrate: 500 ipm / 12.7 m/min

• Rapid Traverse (X, Y, Z): 710 ipm / 18.0 m/min

• Max Thrust X: 3400 lbf / 15124 N

• Max Thrust Y: 4100 lbf / 18238 N

• Max Thrust Z: 5600 lbf / 24910 N

• Tool Changer Type: SMTC (Side-Mount Tool Changer)

• Tool Capacity: 30+1

• Max Tool Diameter (full): 4.0 in / 102 mm

• Max Tool Diameter, Large (adjacent empty): 7.0 in / 178 mm

• Max Tool Length (from gage line): 16.00 in / 406 mm

• Tool-to-Tool Time (avg): 4.20 s

• Chip-to-Chip Time (avg): 6.30 s

• Coolant Capacity: 95 gal / 360 L

• Air Required: 4 scfm @ 100 psi / 113.0 L/min @ 6.9 bar

• Inline Air Hose: 3/8 in

• Coupler (Air): 3/8 in

• Air Pressure Min: 80 psi / 5.5 bar

• Input AC Voltage (3 Phase) - Low: 220 VAC (70 A Full Load)

• Input AC Voltage (3 Phase) - High: 440 VAC (35 A Full Load)

• Domestic Shipping Pallet Dimensions: 168.0 in x 102.0 in x 125.0 in / 427 cm x 260 cm x 318 cm

• Export Crate Dimensions: 168.0 in x 102.0 in x 130.0 in / 427 cm x 260 cm x 331 cm

• Shipping Weight: 16250 lb / 7371.0 kg

Additional equipment

• Machine vise mounted on T-slot table

• Air gun attachment

• Spray container and cleaning brush holder mounted on control arm console
