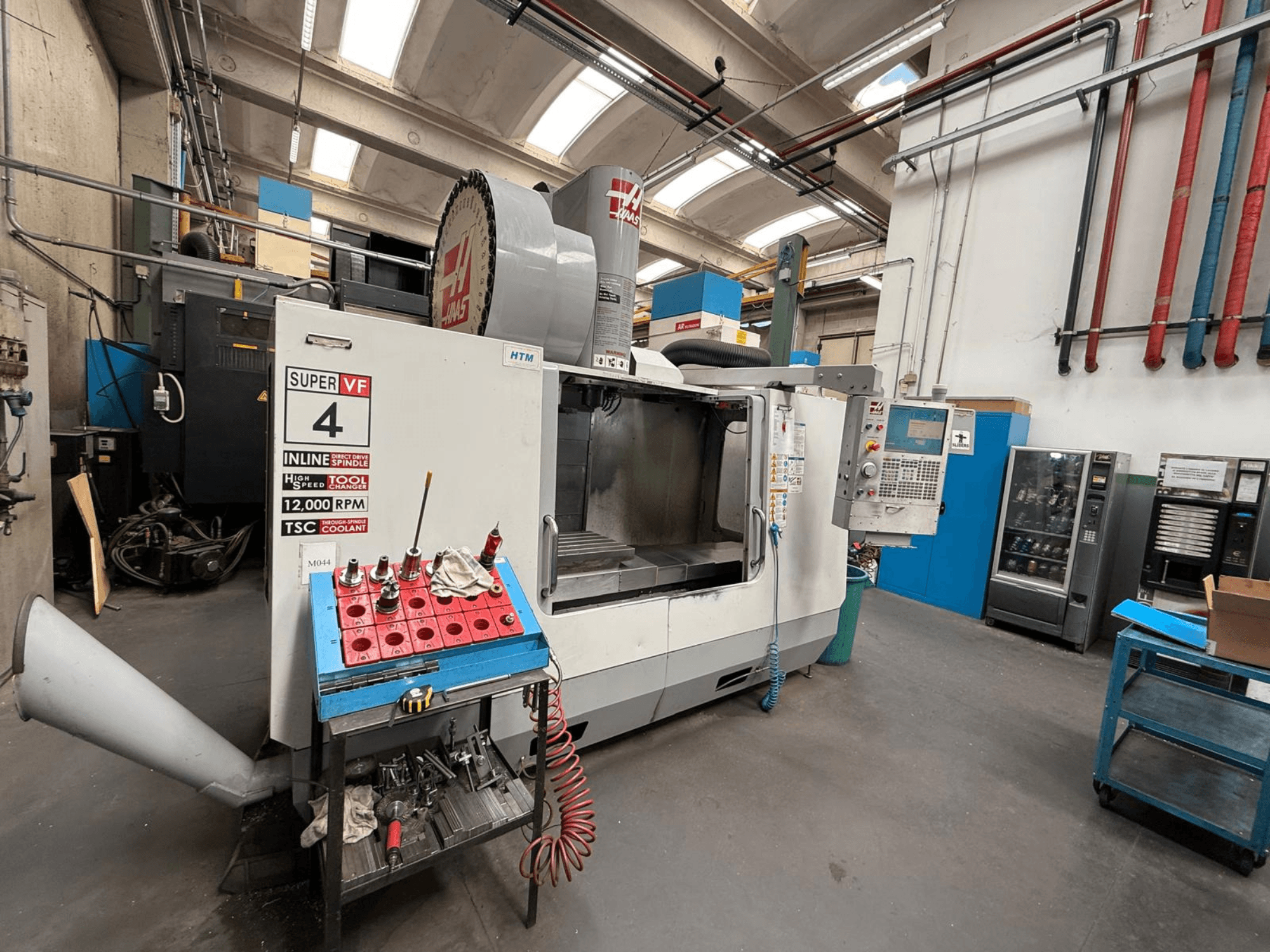

This 3-axis HAAS VF-4SS vertical machining center was manufactured in 2008. It features a 1270 × 508 × 635 mm travel range, 22.4 kW spindle power, and a maximum spindle speed of 12,000 rpm. The machine includes a 40 + 1 position tool changer and a high-speed machining package. If you are looking to get high-quality milling capabilities, consider the HAAS VF-4SS machine we have for sale. Contact us for more information.
Overview
- brand: HAAS
- year: 2008
- MODEL: VF-4SS
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
Technical Information - HAAS VF-4SS
Movement
- Number of Axes: 3
- X-axis Travel: 1270 mm
- Y-axis Travel: 508 mm
- Z-axis Travel: 635 mm
Technical Specification
- Spindle Power: 22.4 kW
- Spindle Speed: 12000 RPM
Additional Information
Distance spindle–table: 102 mm
Tool holder taper: CT40 (DIN 69871)
Max cutting feed: 20.5 m/min
Rapid feed (X/Y/Z): 35.6 m/min
Tool changer type: Random vertical
Tool magazine capacity: 40 + 1 positions
Data interface: USB
Options/Features:
Through-spindle coolant system (21 bar)
4th axis drive and wiring (prepared for 4th axis)
Intuitive programming system
Dual spindle orientation
Coordinate rotation system
Macro variables and scaling functions
High-speed machining package
Additional equipment
Screw-type chip conveyor
Auxiliary high-pressure filtration system
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
