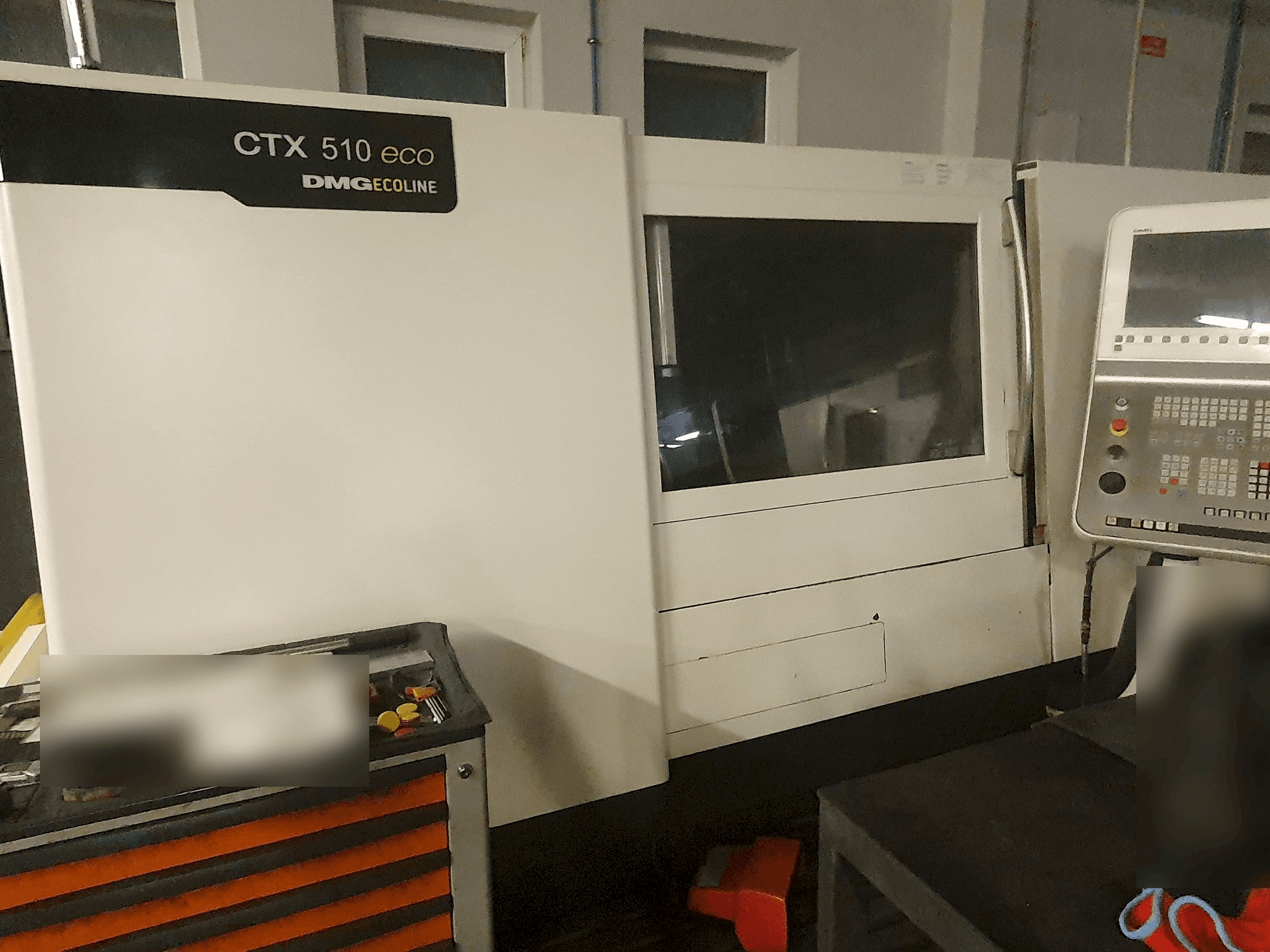

Front view of DMG GILDEMEISTER ecoline CTX 510 eco V3 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DMG ecoline CTX 510 eco V3

Photo Gallery

DMG - ecoline CTX 510 eco V3PL-TUR-DMG-2011-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DMG GILDEMEISTER ecoline CTX 510 eco V3 Lathe

This DMG ecoline CTX 510 eco V3 Lathe was manufactured in Poland in the year 2011. It has been on for 16600 hours. This 3 axis machine is operated through a Siemens 810D ShopTurn control unit. It can work with a spindle speed up to 3250 rpm. The machine is always serviced by DMG service. Full documentation is available.

Overview

brand: DMG
year: 2011
MODEL: ecoline CTX 510 eco V3
production hours: 16600
application type: Turning
Location: Poland
machine type: Turn-Mill Centre
control unit brand: SIEMENS

Technical Information - DMG ecoline CTX 510 eco V3

Control Unit

Control Brand: SIEMENS
Control Model: 810D ShopTurn

Dimensions

Machine Depth: 2230 mm
Machine Height: 2010 mm
Machine Weight: 7800 kg

Movement

Number of Axes: 3
X-axis Travel: 300 mm
Z-axis Travel: 1050 mm

Technical Specification

Spindle Speed: 3250 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Range of automatic tailstock travel: 850 mm
Max. Axial pressure of the tailstock: 1200 dan
Probe included
Dmg smartkey
There are no tooling included
Machine in very good, working condition and ready for tests
Always serviced by dmg service
Full documentation available

Technical Machine Benefits

Xz + c-axis / 6 pcs driven tools
Max turning diameter: 465 mm
Max turning length: 1014 mm
Swing diameter: 680 mm
Max bar diameter: 76 mm
Turret head: vdi 40 din 69880
Max speed for driven tools: 4000 rpm
C-axis max. Speed: 0-100 rpm
C-axis torque: 420 nm
C-axis graduation accuracy 0. 04 grad

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
