DMG GMX 400L

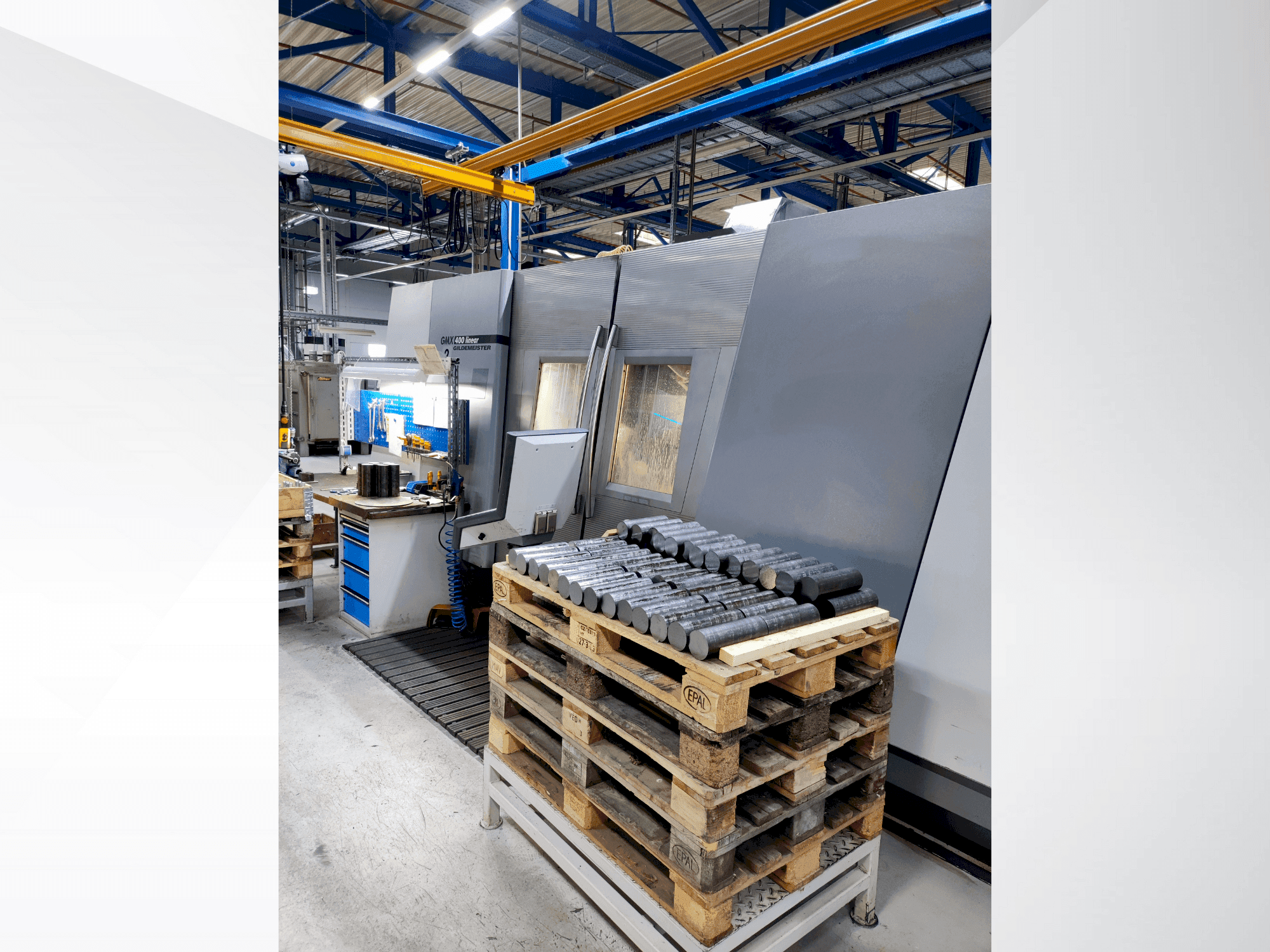

Photo Gallery

DMG - GMX 400LDE-TUR-DMG-2006-00003

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG GMX 400L For Sale | gindumac.com

This 7-axis DMG GMX 400L turn-mill centre was manufactured in 2006. It features an integrated spindle motor ISM 90, a 60-position tool magazine, and CNC control by SIEMENS 840 D powerline. The machine includes a chip conveyor and coolant tank, enhancing operational efficiency. Ideal for complex machining, the GMX 400L offers a turning length of 1585 mm and supports tools with HSK-63A DIN 69893. For more information about this turn-mill centre, please reach out to us.

Overview

brand: DMG
year: 2006
MODEL: GMX 400L
application type: Turning
Location: Germany
machine type: Turn-Mill Centre
control unit brand: SIEMENS

Technical Information - DMG GMX 400L

Control Unit

Brand: SIEMENS
Model: 840 D powerline

Main drive

Spindle speed range: 36/45 KW (100/40% ED) 1/MIN
Tool taper: HSK-63A DIN 69893

Movement

Y-AXIS Movement: ±110 mm

Media

Internal cooling: Yes

Additional Equipment

- 4 additional loading stations

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Cooling pressure: 8 bar
- - Absolute, direct path measuring systems in all linear axes, triple hirth serration with 1° indexing for positive locking during turning, b-axis: ±120° interpolating with hydraulic clamping
- - Main spindle: integrated spindle motor ism 90
- - Partial hollow clamping device (hydraulic)
- - Internal draw tube Ø: 92 mm x 825 mm deep
- - C-axis and spindle brake (hydraulic)
- - Upper cross slide
- - Turning/milling spindle as motorised spindle
- - Tool magazine and handling: rack magazine with tool changer and handling unit
- - Operating hours: 77,227 / spindle hours: 43,568 / new milling spindle: 2017
Qualitative Machine Benefits:
- - Cnc control: v24 and ethernet interface

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
