Mazak - INTEGREX 200 IV SIT-TUR-MAZ-2007-00001

Name: Mazak INTEGREX 200 IV S
Brand: Mazak
SKU: IT-TUR-MAZ-2007-00001
Price: 110000 EUR
Availability: InStock

110,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

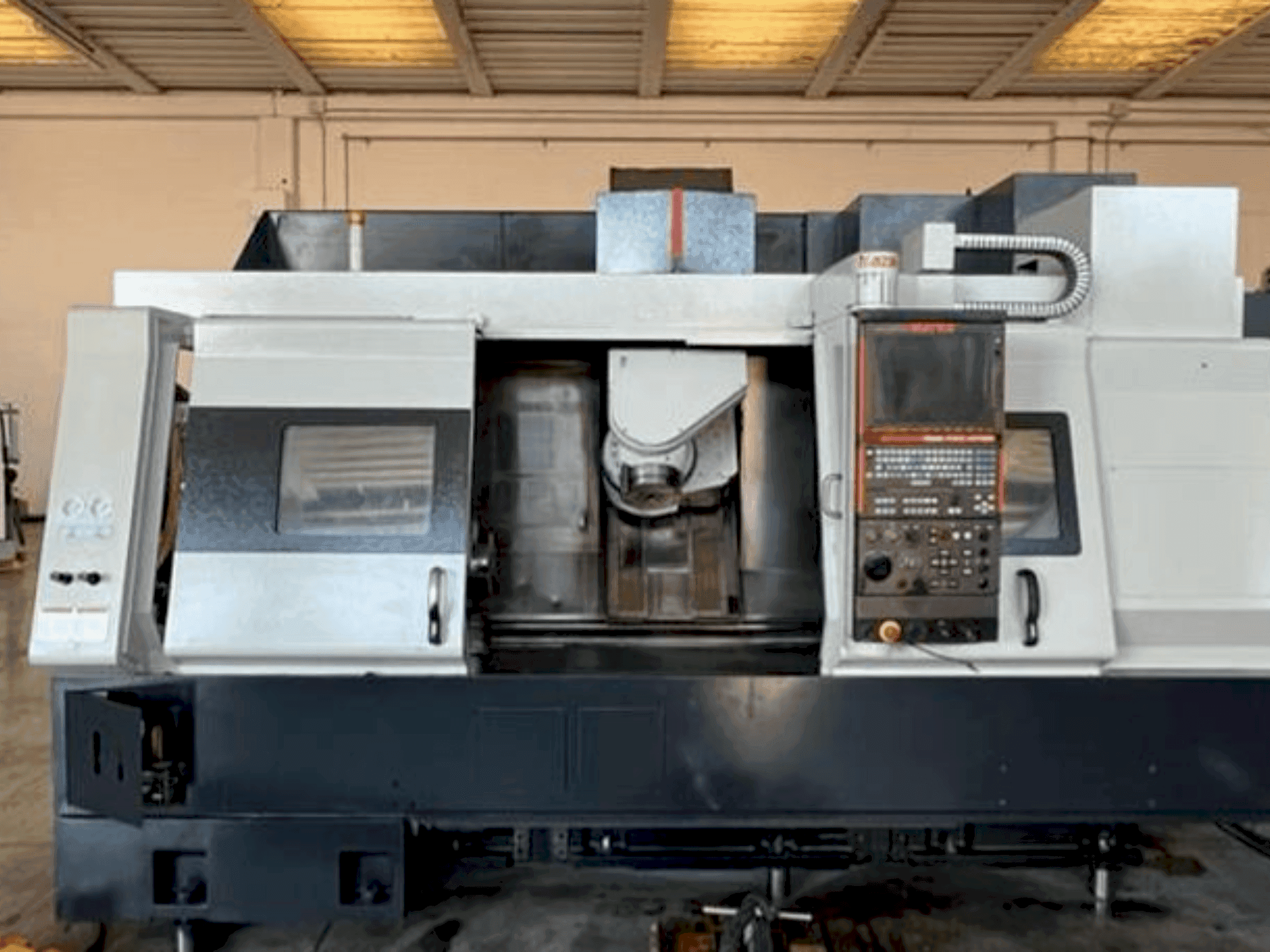

MAZAK INTEGREX 200 IV S Lathe

This MAZAK INTEGREX 200 IV S Lathe was manufactured in the year 2007. It is equipped with a Matrix control unit. The machines disposes od a spindle, a counter spindle, a milling spindle and a chip conveyor.

Overview

brand: Mazak
year: 2007
MODEL: INTEGREX 200 IV S
application type: Turning
Location: Italy
machine type: Turn-Mill Centre

Technical Information - Mazak INTEGREX 200 IV S

Main drive

Number of spindles: 3
Spindle speed range: 5000 1/MIN
Spindle motor power: 22 KW
Number of axis: 5

Additional Information

Machine Benefits

Technical Machine Benefits

Maximum workable length 1050 mm // maximum workable diameter 660mm
Bar passage 51mm
Main spindle diameter 210mm
C axis 360°
Counter spindle self-centering diameter 210 // power and counter spindle speed 18. 5 kw 5000 rpm
C axis on the counter spindle 555
X-axis (strokes) // 580 y-axis (strokes) // 160 z axis (strokes) // 1050 b axis (strokes) 225°
Milling spindle power 18. 5 kw // milling spindle speed 12,000 rpm
Spindle attachment chapter c6
High pressure system through the spindle 20 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
