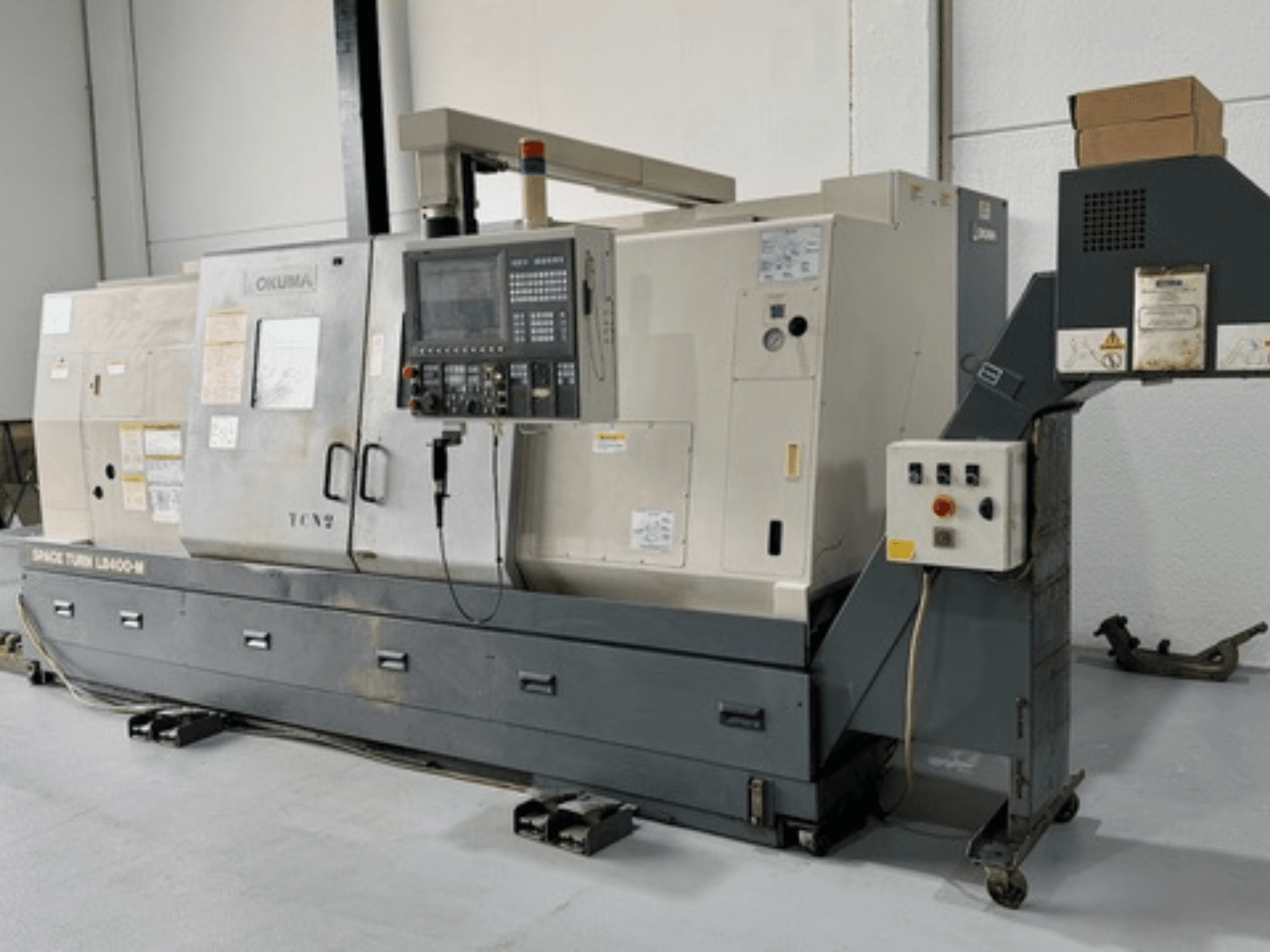

This Okuma LB400-M was manufactured in 2007. A robust turn-mill centre featuring a swing diameter over bed of 620 mm and over saddle of 420 mm. It offers a bar capacity of 80 mm and a chuck size of 400 mm. The spindle operates at speeds up to 3,500 rpm, powered by a 45 Kw motor. Includes a 12-position motorized turret. Contact us for more information about this machine.
Overview
- brand: Okuma
- year: 2007
- MODEL: LB400-M
- application type: Turning
- Location: Spain
- machine type: Turn-Mill Centre
- control unit brand: OKUMA
Technical Information - Okuma LB400-M
Control Unit
- Control Brand: OKUMA
- Control Model: OSP -P200L
Dimensions
- Machine Height: 2110 mm
- Machine Length: 5330 mm
- Machine Weight: 7600 kg
Movement
- Number of Axes: 2
Technical Specification
- Spindle Power: 45 kW
- Spindle Speed: 3500 RPM
Additional Information
Number of axes: 2 + C
Swing diameter over bed: 620 mm
Swing diameter over saddle: 420 mm
Distance between centers: 1,270 mm
Chuck size: 400 mm
Bar capacity: 80 mm
Turret type: Motorized
Tool stations: 12 positions
X rapid traverse: 20 m/min
Z rapid traverse: 25 m/min
Tailstock spindle taper: MT #5
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
